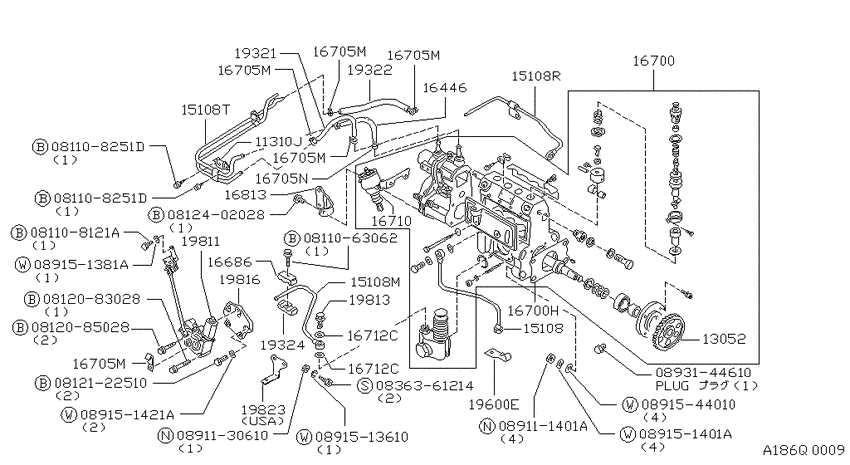

Fuel injection pump (1979-06-01 ~ ; SD25) Diagram Nissan PICKUP
- Year
- 1983 - 1984
- Sales region
- U.S.A.
- Engine
- SD25
- drive
- 2WD
- transmission
- F5
- body
- T
- trim lvl
- DX
- emission
- FED
- length
- LONG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811063062
|
0811063062
08110-63062
Bolt-hexagon
|
08110-63062 |
— | ||
|
081108121A
|
081108121A
08110-8121A
Bolt-hexagon
|
08110-8121A |
— | ||
|
0812083028
|
0812083028
08120-83028
Bolt-hexagon
|
08120-83028 |
— | ||
|
0812085028
|
0812085028
08120-85028
Bolt-hexagon
|
08120-85028 |
— | ||
|
0812122510
|
0812122510
08121-22510
Bolt-hexagon
|
08121-22510 |
— | ||
|
0812402028
|
0812402028
08124-02028
Bolt-hexagon
|
08124-02028 |
— | ||
|
0836361214
|
0836361214
08363-61214
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61214 |
— | ||
|
089111401A
|
089111401A
089111401A
NUTHEX
|
089111401A |
— | ||
|
0891130610
|
0891130610
08911-30610
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-30610 |
— | ||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
0891544010
|
0891544010
08915-44010
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-44010 |
— | ||
|
0893144610
|
0893144610
08931-44610
ﾌﾟﾗｸﾞ,ｽﾚﾂﾄﾞ
|
08931-44610 |
— | ||
|
11310J
|
11310J
19823-29W00
Bracket-Governor Tube
1983-01-01 ~ ; %(FED.T.REG+FED.K/CAB+FED.T.LONG).SD25; , |
19823-29W00 |
— | ||
|
13052
|
13052
13052-29W01 Gear-Drive, Injection Pump1983-01-01 ~ ; SD25; , |
13052-29W01 |
US $99.79 |
||
|
15108
|
15108
15108-29W01
Tube Assy-Oil
1983-01-01 ~ ; SD25; , |
15108-29W01 |
— | ||
|
15108
|
15108
16817-29W02
Tube Assy-Oil
1983-01-01 ~ ; SD25; , |
16817-29W02 |
— | ||
|
15108
|
15108
16818-29W03
Tube Assy-Oil
1983-01-01 ~ ; SD25; , |
16818-29W03 |
— | ||
|
15108
|
15108
19820-19W01
Tube Assy-Oil
1983-01-01 ~ 1983-12-01; &*(FED.T.REG+FED.K/CAB+FED.T.LONG).SD25; , |
19820-19W01 |
— | ||
|
15108
|
15108
19820-29W01
Tube Assy-Oil
1983-01-01 ~ ; %(FED.T.REG+FED.K/CAB+FED.T.LONG).SD25; , |
19820-29W01 |
— | ||
|
15108M
|
15108M
16817-29W02
Tube Assy-Oil
1983-01-01 ~ ; SD25; , |
16817-29W02 |
— | ||
|
15108R
|
15108R
16818-29W03
Tube Assy-Oil
1983-01-01 ~ ; SD25; , |
16818-29W03 |
— | ||
|
15108T
|
15108T
19820-19W01
Tube Assy-Oil
1983-01-01 ~ 1983-12-01; &*(FED.T.REG+FED.K/CAB+FED.T.LONG).SD25; , |
19820-19W01 |
— | ||
|
15108T
|
15108T
19820-29W01
Tube Assy-Oil
1983-01-01 ~ ; %(FED.T.REG+FED.K/CAB+FED.T.LONG).SD25; , |
19820-29W01 |
— | ||
|
16446
|
16446
19836-Y7500 Hose-Rubber1983-01-01 ~ ; SD25; , |
19836-Y7500 |
US $12.67 |
||
|
16686
|
16686
16697-96000 Support-Injection Tube1983-01-01 ~ ; SD25; , |
16697-96000 |
US $5.76 |
||
| replacement | |||||
|
16686
|
16686
16697-Z5501 Support1983-01-01 ~ ; SD25; , |
16697-Z5501 |
US $6.48 |
||
|
16686
|
16686
16686-37501 Support-Injection Tube1983-01-01 ~ ; SD25; NO.1-NO.4 |
16686-37501 |
US $3.60 |
||
|
16700
|
16700
16700-29W04
Pump Assy-Injection
1983-01-01 ~ ; SD25; , |
16700-29W04 |
— | ||
|
16700
|
16700
16701-37504 Gasket-Injection Pump1983-01-01 ~ ; SD25; , |
16701-37504 |
US $4.46 |
||
|
16700H
|
16700H
16701-37504 Gasket-Injection Pump1983-01-01 ~ ; SD25; , |
16701-37504 |
US $4.46 |
||
|
16705M
|
16705M
01558-00044 CLAMP-HOSE1983-01-01 ~ ; SD25; , |
01558-00044 |
US $2.45 |
||
|
16705M
|
16705M
21383-Z5000 Band1983-01-01 ~ ; SD25; , |
21383-Z5000 |
US $2.45 |
||
|
16705M
|
16705M
24210-89944 Clamp1983-01-01 ~ ; SD25; , |
24210-89944 |
US $3.46 |
||
|
16705M
|
16705M
01558-00044 CLAMP-HOSE1983-01-01 ~ ; SD25; , |
01558-00044 |
US $2.45 |
||
|
16705M
|
16705M
21383-Z5000 Band1983-01-01 ~ ; SD25; , |
21383-Z5000 |
US $2.45 |
||
|
16705M
|
16705M
24210-89944 Clamp1983-01-01 ~ ; SD25; , |
24210-89944 |
US $3.46 |
||
|
16705M
|
16705M
01558-00044 CLAMP-HOSE1983-01-01 ~ ; SD25; , |
01558-00044 |
US $2.45 |
||
|
16705M
|
16705M
21383-Z5000 Band1983-01-01 ~ ; SD25; , |
21383-Z5000 |
US $2.45 |
||
|
16705M
|
16705M
24210-89944 Clamp1983-01-01 ~ ; SD25; , |
24210-89944 |
US $3.46 |
||
|
16705M
|
16705M
01558-00044 CLAMP-HOSE1983-01-01 ~ ; SD25; , |
01558-00044 |
US $2.45 |
||
|
16705M
|
16705M
21383-Z5000 Band1983-01-01 ~ ; SD25; , |
21383-Z5000 |
US $2.45 |
||
|
16705M
|
16705M
24210-89944 Clamp1983-01-01 ~ ; SD25; , |
24210-89944 |
US $3.46 |
||
|
16705M
|
16705M
01558-00044 CLAMP-HOSE1983-01-01 ~ ; SD25; , |
01558-00044 |
US $2.45 |
||
|
16705M
|
16705M
21383-Z5000 Band1983-01-01 ~ ; SD25; , |
21383-Z5000 |
US $2.45 |
||
|
16705M
|
16705M
24210-89944 Clamp1983-01-01 ~ ; SD25; , |
24210-89944 |
US $3.46 |
||
|
16705N
|
16705N
21383-Z5002 Clamp-Fuel Tube1983-01-01 ~ ; SD25; , |
21383-Z5002 |
US $2.45 |
||
|
16710
|
16710
16950-29W00
Aneroid Compensator Assy
1983-01-01 ~ ; SD25; , |
16950-29W00 |
— | ||
|
16712C
|
16712C
01351-11144 PACKING1983-01-01 ~ ; SD25; , |
01351-11144 |
US $2.45 |
||
| replacement | |||||
|
16712C
|
16712C
1679410G01 Gasket1983-01-01 ~ ; SD25; , |
1679410G01 |
US $8.18 |
||
|
16712C
|
16712C
01351-11144 PACKING1983-01-01 ~ ; SD25; , |
01351-11144 |
US $2.45 |
||
| replacement | |||||
|
16712C
|
16712C
1679410G01 Gasket1983-01-01 ~ ; SD25; , |
1679410G01 |
US $8.18 |
||
|
16813
|
16813
16813-29W01
Bracket-Injection Pump
1983-01-01 ~ ; SD25; , |
16813-29W01 |
— | ||
|
19321
|
19321
11032-C0300 Hose-Rubber1983-01-01 ~ 1983-06-01; SD25; , |
11032-C0300 |
US $7.92 |
||
| replacement | |||||
|
19321
|
19321
A1032-37701
Tube Assy
1983-01-01 ~ 1983-06-01; SD25; , |
A1032-37701 |
— | ||
|
19321
|
19321
11032-C6803 Hose-Fuel1983-07-01 ~ ; SD25; , |
11032-C6803 |
US $5.04 |
||
| replacement | |||||
|
19321
|
19321
11032-V6600
Hose-Rubber
1983-07-01 ~ ; SD25; , |
11032-V6600 |
— | ||
|
19322
|
19322
11032-31W00 Hose-Fuel1983-01-01 ~ ; SD25; , |
11032-31W00 |
US $5.04 |
||
| replacement | |||||
|
19322
|
19322
11032-V6600
Hose-Rubber
1983-01-01 ~ ; SD25; , |
11032-V6600 |
— | ||
|
19324
|
19324
16698-96000 Support-Injection Tube1983-01-01 ~ ; SD25; , |
16698-96000 |
US $4.32 |
||
| replacement | |||||
|
19324
|
19324
16698-Z5501 Support-Injection Tube1983-01-01 ~ ; SD25; , |
16698-Z5501 |
US $7.20 |
||
|
19600E
|
19600E
24210-07P00 Clip-Harness1983-01-01 ~ ; SD25; , |
24210-07P00 |
US $2.45 |
||
|
19811
|
19811
19811-29W00
Controller-Injection Pump
1983-01-01 ~ ; SD25; , |
19811-29W00 |
— | ||
| replacement | |||||
|
19811
|
19811
A9811-29W00
Controller
1983-01-01 ~ ; SD25; , |
A9811-29W00 |
— | ||
|
19813
|
19813
16656-37501 Joint Assy-Pipe1983-01-01 ~ ; SD25; , |
16656-37501 |
US $5.76 |
||
|
19816
|
19816
19816-29W01
Bracket-Controller
1983-01-01 ~ ; SD25; , |
19816-29W01 |
— | ||
