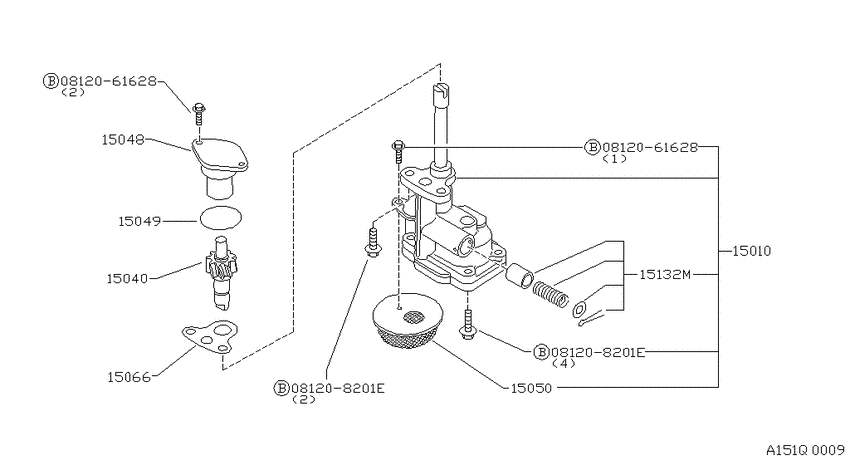

Oil pump (1979-06-01 ~ ; SD25) Diagram Nissan PICKUP
- Year
- 1983 - 1984
- Sales region
- U.S.A.
- Engine
- SD25
- drive
- 2WD
- transmission
- F5
- body
- T
- trim lvl
- DX
- emission
- FED
- length
- LONG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $0.65 |
||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $0.65 |
||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
15010
|
15010
15010-34W00
Pump Assy-Oil
1982-11-01 ~ ; SD25; , |
15010-34W00 |
— | ||
|
15040
|
15040
15040-37504
Spindle Assy-Oil Pump Drive
1982-11-01 ~ ; SD25; , |
15040-37504 |
— | ||
|
15048
|
15048
22178-37501 Support-Spindle1982-11-01 ~ ; SD25; , |
22178-37501 |
US $12.10 |
||
|
15049
|
15049
22179-37500 Gasket-Spindle1982-11-01 ~ ; SD25; , |
22179-37500 |
US $4.46 |
||
|
15050
|
15050
15050-31W00 Strainer Assy-Oil1982-11-01 ~ ; SD25; , |
15050-31W00 |
US $60.19 |
||
|
15066
|
15066
15066-37501 Gasket-Oil Pump To Cylinder Block1982-11-01 ~ ; SD25; , |
15066-37501 |
US $1.73 |
||
|
15132M
|
15132M
15132-37525 Valve Assy-Regulator1982-11-01 ~ ; SD25; , |
15132-37525 |
US $10.08 |
