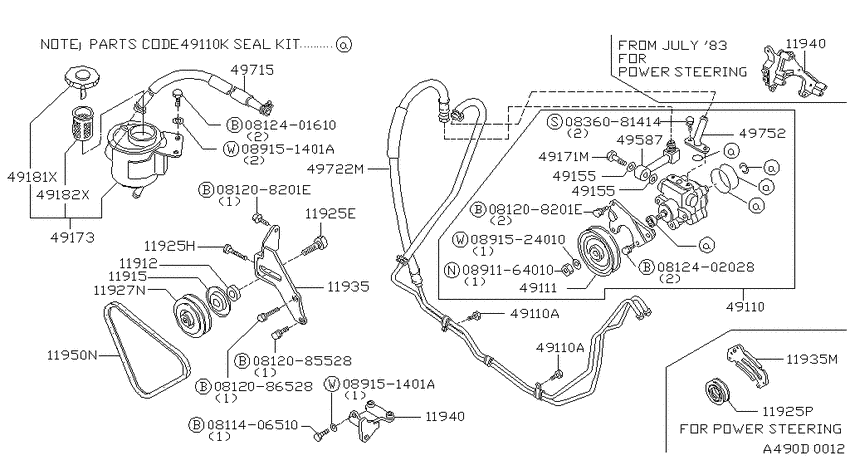

Power steering pump (1983-01-01 ~ ; SD25) Diagram Nissan PICKUP
- Year
- 1983 - 1984
- Sales region
- U.S.A.
- Engine
- SD25
- drive
- 2WD
- transmission
- F5
- body
- T
- trim lvl
- DX
- emission
- FED
- length
- LONG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811406510
|
0811406510
08114-06510
Bolt-hexagon
|
08114-06510 |
— | ||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0812085528
|
0812085528
08120-85528
Bolt-hexagon
|
08120-85528 |
— | ||
|
0812086528
|
0812086528
08120-86528
Bolt-hexagon
|
08120-86528 |
— | ||
|
0812401610
|
0812401610
08124-01610
Bolt-hexagon
|
08124-01610 |
— | ||
|
0812402028
|
0812402028
08124-02028
Bolt-hexagon
|
08124-02028 |
— | ||
|
0836081414
|
0836081414
08360-81414
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-81414 |
— | ||
|
0891164010
|
0891164010
08911-64010
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-64010 |
— | ||
| replacement | |||||
|
0891164010
|
0891164010
089116402A
NUTHEX
|
089116402A |
— | ||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
0891524010
|
0891524010
08915-24010
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-24010 |
— | ||
|
11912
|
11912
33023-90000 Spacer-Idler Pulley1983-01-01 ~ ; *SD25; FOR POWER STEERING |
33023-90000 |
US $5.33 |
||
|
11912
|
11912
33023-90000 Spacer-Idler Pulley1979-06-01 ~ ; *SD22 +*SD25; , |
33023-90000 |
US $5.33 |
||
|
11915
|
11915
11915-J5502 Cover-Dust1983-01-01 ~ ; *SD25; FOR POWER STEERING |
11915-J5502 |
US $5.76 |
||
|
11915
|
11915
11915-31W00 Cover-Dust, Idler Pulley1983-01-01 ~ ; *SD22 +*SD25; , |
11915-31W00 |
US $72.58 |
||
|
11915
|
11915
11915-J5502 Cover-Dust1979-06-01 ~ ; *SD22 +*SD25; , |
11915-J5502 |
US $5.76 |
||
|
11925E
|
11925E
11914-Y7500 Bolt1983-01-01 ~ ; *SD25; FOR POWER STEERING |
11914-Y7500 |
US $30.67 |
||
|
11925H
|
11925H
0111116144 BOLT-ADJUST1983-01-01 ~ ; *SD25; FOR POWER STEERING |
0111116144 |
US $2.45 |
||
|
11925P
|
11925P
11934-29W00
Pulley Assy-Idler
1983-01-01 ~ ; *SD25; FOR POWER STEERING |
11934-29W00 |
— | ||
|
11927N
|
11927N
11933-54W00 Pulley-Power Steering1983-01-01 ~ ; *SD25; FOR POWER STEERING |
11933-54W00 |
US $287.45 |
||
|
11935
|
11935
11931-54W10 Bracket-Power Steering Oil Pump1983-01-01 ~ ; *SD25; FOR POWER STEERING |
11931-54W10 |
US $148.32 |
||
|
11935
|
11935
11913-29W02
Bolt
1983-01-01 ~ ; *SD22 +*SD25; , |
11913-29W02 |
— | ||
|
11935
|
11935
11913-31W04 Bracket-Idler Pulley1979-06-01 ~ ; *SD22 +*SD25; USA MAKE |
11913-31W04 |
US $416.30 |
||
|
11935
|
11935
11914-Y7500 Bolt1979-06-01 ~ ; *SD22 +*SD25; , |
11914-Y7500 |
US $30.67 |
||
|
11935
|
11935
11932-29W00
Bracket-Idler Pulley
1983-01-01 ~ ; *SD25; FOR POWER STEERING |
11932-29W00 |
— | ||
|
11935
|
11935
11932-29W01
Bracket-Idler Pulley
1983-01-01 ~ ; *SD25; FOR POWER STEERING |
11932-29W01 |
— | ||
|
11935M
|
11935M
11932-29W00
Bracket-Idler Pulley
1983-01-01 ~ ; *SD25; FOR POWER STEERING |
11932-29W00 |
— | ||
|
11935M
|
11935M
11932-29W01
Bracket-Idler Pulley
1983-01-01 ~ ; *SD25; FOR POWER STEERING |
11932-29W01 |
— | ||
|
11940
|
11940
11931-29W02
Bracket-Power Steering Oil Pump
1983-01-01 ~ 1983-06-01; *SD25; FOR POWER STEERING |
11931-29W02 |
— | ||
|
11940
|
11940
11931-29W05 Bracket-Power Steering Oil Pump1983-07-01 ~ ; *SD25; FOR POWER STEERING |
11931-29W05 |
US $712.25 |
||
|
11940
|
11940
11931-29W02
Bracket-Power Steering Oil Pump
1983-01-01 ~ 1983-06-01; *SD25; FOR POWER STEERING |
11931-29W02 |
— | ||
|
11940
|
11940
11931-29W05 Bracket-Power Steering Oil Pump1983-07-01 ~ ; *SD25; FOR POWER STEERING |
11931-29W05 |
US $712.25 |
||
|
11950N
|
11950N
21066-29W12
Belt-Fan
1983-01-01 ~ ; *SD25; FOR POWER STEERING |
21066-29W12 |
— | ||
|
49110
|
49110
49110-54W02
Pump assy-power steering
1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49110-54W02 |
— | ||
|
49110
|
49110
01456-00011 SCREW1983-01-01 ~ ; *SD25; FOR POWER STEERING |
01456-00011 |
US $1.93 |
||
|
49110
|
49110
49128-04R26 Seal Kit-O Ring, Power Steering Pump1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49128-04R26 |
US $11.09 |
||
|
49110A
|
49110A
01456-00011 SCREW1983-01-01 ~ ; *SD25; FOR POWER STEERING |
01456-00011 |
US $1.93 |
||
|
49110A
|
49110A
01456-00011 SCREW1983-01-01 ~ ; *SD25; FOR POWER STEERING |
01456-00011 |
US $1.93 |
||
|
49110K
|
49110K
49128-04R26 Seal Kit-O Ring, Power Steering Pump1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49128-04R26 |
US $11.09 |
||
|
49111
|
49111
49586-54W00 ﾌﾟ-ﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾎﾟﾝﾌﾟ1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49586-54W00 |
US $145.44 |
||
|
49155
|
49155
49589-R8200 Washer-Copper1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49589-R8200 |
US $3.46 |
||
| replacement | |||||
|
49155
|
49155
49726Y0100 Washer-Copper1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49726Y0100 |
from US $1.72 |
||
|
49155
|
49155
49589-R8200 Washer-Copper1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49589-R8200 |
US $3.46 |
||
| replacement | |||||
|
49155
|
49155
49726Y0100 Washer-Copper1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49726Y0100 |
from US $1.72 |
||
|
49171M
|
49171M
49590-W4400 Bolt1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49590-W4400 |
US $10.08 |
||
|
49173
|
49173
49115-54W00
Reservoir assy-oil
1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49115-54W00 |
— | ||
|
49181X
|
49181X
49181-W1700
Cap Assy-Pump
1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49181-W1700 |
— | ||
| replacement | |||||
|
49181X
|
49181X
49181W1705 Cap Assy-Pump1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49181W1705 |
from US $14.42 |
||
|
49182X
|
49182X
49182-W1100 Filter Assy-Pump1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49182-W1100 |
US $14.98 |
||
|
49587
|
49587
49587-54W02
Joint-outlet,power steering pump
1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49587-54W02 |
— | ||
|
49715
|
49715
49723-54W01
Hose-pump to reservoir tank
1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49723-54W01 |
— | ||
|
49722M
|
49722M
49710-29W00
Hose & tube assy-pressure,ps
1983-01-01 ~ ; *2WD |
49710-29W00 |
— | ||
|
49722M
|
49722M
49710-49W00
Hose & tube assy-pressure,ps
1983-01-01 ~ ; *4WD |
49710-49W00 |
— | ||
|
49752
|
49752
49580-54W01
Connector
1983-01-01 ~ ; *SD25; FOR POWER STEERING |
49580-54W01 |
— | ||
