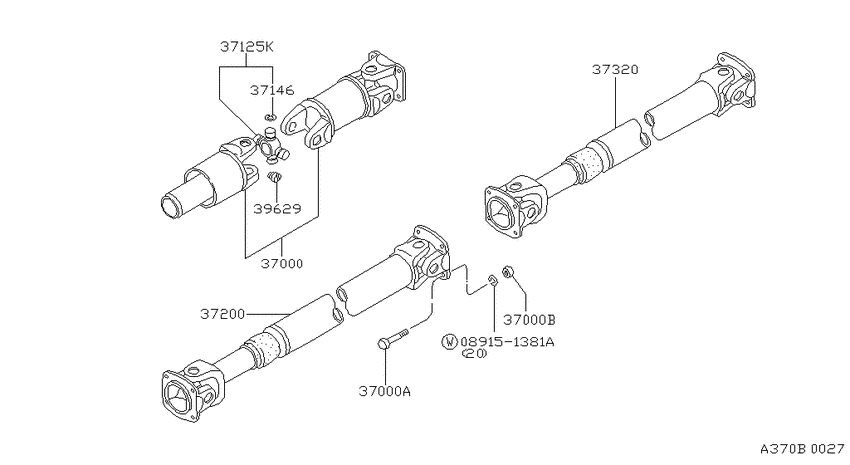

Propeller shaft (1979-06-01 ~ ; 4WD) Diagram Nissan PICKUP
- Year
- 1980 - 1982
- Sales region
- U.S.A.
- Engine
- Z22
- drive
- 4WD
- transmission
- F4
- body
- T
- trim lvl
- DX
- emission
- CAL
- length
- REG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37000
|
37000
37000-01W10 Shaft Assy-Propeller1982-11-01 ~ ; T.REG.MT.(STD+DX); 3-JOINT |
37000-01W10 |
US $1,376.35 |
||
|
37000
|
37000
37000-05W60 Shaft Assy-Propeller1979-06-01 ~ 1982-10-01; T.REG.MT; 2-JOINT |
37000-05W60 |
US $1,376.35 |
||
|
37000
|
37000
37000-05W70 Shaft Assy-Propeller1979-06-01 ~ 1982-10-01; T.REG.MT; 2-JOINT |
37000-05W70 |
US $1,376.35 |
||
|
37000
|
37000
37100-41W00 Shaft Assy-Primary Propeller1979-06-01 ~ 1982-01-01; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; 2 JOINT (140) |
37100-41W00 |
US $926.06 |
||
|
37000
|
37000
37100-48W00 Shaft Assy-Primary Propeller1982-02-01 ~ 1982-12-01; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; 2 JOINT (140) |
37100-48W00 |
US $926.06 |
||
|
37000
|
37000
37100-50W00 Shaft Assy-Primary Propeller1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; 2 JOINT (265) |
37100-50W00 |
US $926.06 |
||
|
37000
|
37000
01111-00281 BOLT-FIX PROPELLER SHAFT1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; L=32.5 |
01111-00281 |
US $3.06 |
||
|
37000
|
37000
37120-50W00 Bolt1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; L=39.2 |
37120-50W00 |
US $5.62 |
||
|
37000
|
37000
0122500161 NUT-FIX PROPELLER SHAFT1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; M8 |
0122500161 |
US $3.06 |
||
|
37000
|
37000
08911-24210
NUT-FIX PROPELLER SHAFT
1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; M12 |
08911-24210 |
— | ||
| replacement | |||||
|
37000
|
37000
089112421A NUTHEX1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; M12 |
089112421A |
from US $0.57 |
||
|
37000
|
37000
089112421A NUTHEX1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; M12 |
089112421A |
from US $0.57 |
||
|
37000A
|
37000A
01111-00281 BOLT-FIX PROPELLER SHAFT1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; L=32.5 |
01111-00281 |
US $3.06 |
||
|
37000A
|
37000A
37120-50W00 Bolt1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; L=39.2 |
37120-50W00 |
US $5.62 |
||
|
37000B
|
37000B
0122500161 NUT-FIX PROPELLER SHAFT1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; M8 |
0122500161 |
US $3.06 |
||
|
37000B
|
37000B
08911-24210
NUT-FIX PROPELLER SHAFT
1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; M12 |
08911-24210 |
— | ||
| replacement | |||||
|
37000B
|
37000B
089112421A NUTHEX1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; M12 |
089112421A |
from US $0.57 |
||
|
37000B
|
37000B
089112421A NUTHEX1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; M12 |
089112421A |
from US $0.57 |
||
|
37125K
|
37125K
37124-P3000
Journal Kit
1979-06-01 ~ 1982-12-01; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; , |
37124-P3000 |
— | ||
|
37125K
|
37125K
37125-14627
Journal Kit
1979-06-01 ~ 1982-10-01; T.REG.MT; , |
37125-14627 |
— | ||
|
37125K
|
37125K
39625N4125 Journal Kit1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; , |
39625N4125 |
US $110.74 |
||
| replacement | |||||
|
37125K
|
37125K
37126VB925 Journal Kit1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; , |
37126VB925 |
from US $83.51 |
||
|
37146
|
37146
37146-14600 Ring-Snap1979-06-01 ~ 1982-12-01; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; T=2.00 |
37146-14600 |
US $1.73 |
||
|
37146
|
37146
37147-14600 Ring-Snap1979-06-01 ~ 1982-12-01; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; T=2.02 |
37147-14600 |
US $1.73 |
||
|
37146
|
37146
37148-14600 Ring-Snap1979-06-01 ~ 1982-12-01; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; T=2.04 |
37148-14600 |
US $1.73 |
||
|
37146
|
37146
37149-14600 Ring-Snap1979-06-01 ~ 1982-12-01; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; T=2.06 |
37149-14600 |
US $1.73 |
||
|
37146
|
37146
39646-21001 Ring-Snap1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; T=1.49 |
39646-21001 |
US $1.73 |
||
|
37146
|
37146
39646-21002 Ring-Snap1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; T=1.61 |
39646-21002 |
US $1.73 |
||
|
37146
|
37146
39647-21001 Ring-Snap1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; T=1.52 |
39647-21001 |
US $1.73 |
||
|
37146
|
37146
39647-21002 Ring-Snap1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; T=1.64 |
39647-21002 |
US $1.73 |
||
|
37146
|
37146
39648-21001 Ring-Snap1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; T=1.55 |
39648-21001 |
US $1.73 |
||
|
37146
|
37146
3964821002 Ring-Snap1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; T=1.67 |
3964821002 |
US $1.73 |
||
|
37146
|
37146
39649-21001 Ring-Snap1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; T=1.58 |
39649-21001 |
US $1.73 |
||
|
37200
|
37200
37200-41W00 Shaft Assy-Front Propeller1979-06-01 ~ 1982-12-01; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; 2 JOINT (650) |
37200-41W00 |
US $1,349.45 |
||
|
37200
|
37200
37200-49W00 Shaft Assy-Front Propeller1983-01-01 ~ 1984-12-01; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; 2 JOINT (615) |
37200-49W00 |
US $1,349.45 |
||
|
37200
|
37200
37200-50W00
Propeller Shaft Assy-Front
1983-01-01 ~ 1984-12-01; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; 2 JOINT (615) |
37200-50W00 |
— | ||
|
37200
|
37200
37200-50W10 Shaft Assy-Front Propeller1985-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; 2 JOINT (615) |
37200-50W10 |
US $1,312.63 |
||
|
37320
|
37320
37300-41W00 Shaft Assy-Rear Propeller1979-06-01 ~ 1982-12-01; T.REG.4WD; 2 JOINT (805) |
37300-41W00 |
US $1,183.78 |
||
|
37320
|
37320
37300-50W10 Shaft Assy-Rear Propeller1983-01-01 ~ ; T.REG.4WD; 2 JOINT (780) |
37300-50W10 |
US $1,183.78 |
||
|
37320
|
37320
37300-50W13
Propeller Shaft Assy-Rear
1983-01-01 ~ ; T.REG.4WD; 2 JOINT (780) |
37300-50W13 |
— | ||
|
39629
|
39629
39629-21000
Plug
1983-01-01 ~ ; 4WD.L20B +4WD.Z22 +4WD.Z24 +Z24I; , |
39629-21000 |
— | ||
