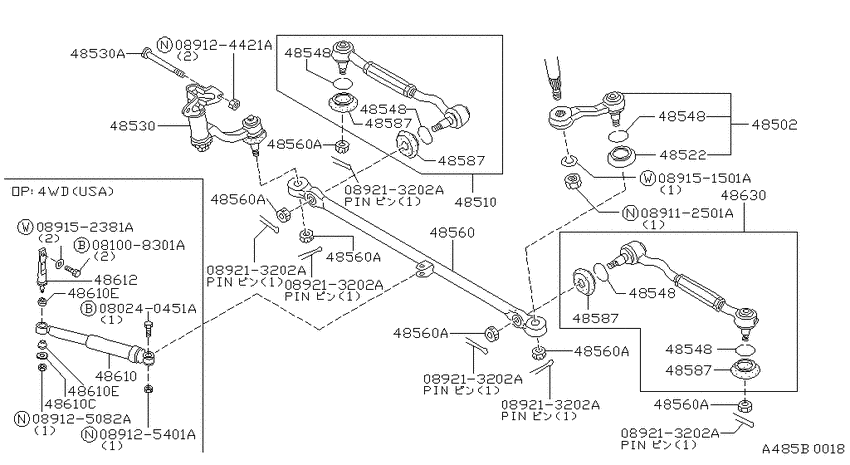

Steering linkage (1983-01-01 ~ ; 4WD) Diagram Nissan PICKUP
- Year
- 1980 - 1982
- Sales region
- U.S.A.
- Engine
- Z22
- drive
- 4WD
- transmission
- F4
- body
- T
- trim lvl
- DX
- emission
- CAL
- length
- REG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080240451A
|
080240451A
08024-0451A
Bolt-hexagon
|
08024-0451A |
— | ||
|
081008301A
|
081008301A
08100-8301A
Bolt-hex
|
08100-8301A |
— | ||
|
089112501A
|
089112501A
08911-2501A
NUTHEX
|
08911-2501A |
— | ||
|
089124421A
|
089124421A
089124421A NUTHEX |
089124421A |
US $0.93 |
||
|
089125082A
|
089125082A
08912-5082A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08912-5082A |
— | ||
|
089125401A
|
089125401A
08912-5401A NUTHEX |
08912-5401A |
US $0.91 |
||
|
089151501A
|
089151501A
08915-1501A
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-1501A |
— | ||
|
089152381A
|
089152381A
089152381A
Washer
|
089152381A |
— | ||
|
089213202A
|
089213202A
089213202A PINCOTTER SPLI |
089213202A |
US $2.21 |
||
|
089213202A
|
089213202A
089213202A PINCOTTER SPLI |
089213202A |
US $2.21 |
||
|
089213202A
|
089213202A
089213202A PINCOTTER SPLI |
089213202A |
US $2.21 |
||
|
089213202A
|
089213202A
089213202A PINCOTTER SPLI |
089213202A |
US $2.21 |
||
|
089213202A
|
089213202A
089213202A PINCOTTER SPLI |
089213202A |
US $2.21 |
||
|
089213202A
|
089213202A
089213202A PINCOTTER SPLI |
089213202A |
US $2.21 |
||
|
48502
|
48502
48501-50W00 ｱ-ﾑ,ﾋﾟﾂﾄﾏﾝ1983-01-01 ~ ; 4WD; , |
48501-50W00 |
US $188.64 |
||
|
48502
|
48502
48502-01W00 ｱ-ﾑ,ﾋﾟﾂﾄﾏﾝ1979-06-01 ~ 1982-12-01; 4WD; , |
48502-01W00 |
US $95.90 |
||
|
48502
|
48502
01227-00032
NUT
1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
01227-00032 |
— | ||
| replacement | |||||
|
48502
|
48502
0122700081 NUT1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
0122700081 |
US $2.91 |
||
|
48510
|
48510
48510-41W00 ﾛﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｻｲﾄﾞ1979-06-01 ~ 1982-12-01; 4WD; , |
48510-41W00 |
US $228.96 |
||
|
48510
|
48510
48510-50W00 ﾛﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｻｲﾄﾞ1983-01-01 ~ ; 4WD; , |
48510-50W00 |
US $228.96 |
||
|
48522
|
48522
48522-01W05
ｶﾊﾞ-,ﾀﾞｽﾄ
1983-01-01 ~ ; 4WD; , |
48522-01W05 |
— | ||
|
48530
|
48530
48530-43W00
Idler assy-steering
1979-06-01 ~ 1980-06-01; 4WD; , |
48530-43W00 |
— | ||
|
48530
|
48530
48530-43W01
Idler assy-steering
1980-07-01 ~ 1982-12-01; 4WD; , |
48530-43W01 |
— | ||
|
48530
|
48530
48530-50W10
Idler assy-steering
1983-01-01 ~ ; 4WD; , |
48530-50W10 |
— | ||
|
48530
|
48530
48214-10W00 ﾎﾞﾙﾄ1983-01-01 ~ 1984-03-01; 4WD; , |
48214-10W00 |
US $4.18 |
||
|
48530
|
48530
48214-50W00 ﾎﾞﾙﾄ1984-04-01 ~ ; 4WD; , |
48214-50W00 |
US $4.18 |
||
|
48530
|
48530
48214-U7400 Bolt1979-06-01 ~ 1980-06-01; 4WD; , |
48214-U7400 |
US $3.46 |
||
|
48530
|
48530
48366-B0700
Nut
1979-06-01 ~ 1980-06-01; 2WD +4WD; , |
48366-B0700 |
— | ||
| replacement | |||||
|
48530
|
48530
48366DA00A Nut1979-06-01 ~ 1980-06-01; 2WD +4WD; , |
48366DA00A |
US $3.06 |
||
|
48530
|
48530
4018973000 Plug-Filler1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
4018973000 |
US $1.58 |
||
| replacement | |||||
|
48530
|
48530
401897300A Plug1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
401897300A |
US $1.58 |
||
|
48530A
|
48530A
48214-10W00 ﾎﾞﾙﾄ1983-01-01 ~ 1984-03-01; 4WD; , |
48214-10W00 |
US $4.18 |
||
|
48530A
|
48530A
48214-50W00 ﾎﾞﾙﾄ1984-04-01 ~ ; 4WD; , |
48214-50W00 |
US $4.18 |
||
|
48530A
|
48530A
48214-U7400 Bolt1979-06-01 ~ 1980-06-01; 4WD; , |
48214-U7400 |
US $3.46 |
||
|
48548
|
48548
48548-18000 Clamp-Boot1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
48548-18000 |
US $1.01 |
||
|
48548
|
48548
48548-18000 Clamp-Boot1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
48548-18000 |
US $1.01 |
||
|
48548
|
48548
48548-18000 Clamp-Boot1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
48548-18000 |
US $1.01 |
||
|
48548
|
48548
48548-18000 Clamp-Boot1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
48548-18000 |
US $1.01 |
||
|
48548
|
48548
48548-18000 Clamp-Boot1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
48548-18000 |
US $1.01 |
||
|
48560
|
48560
48560-43W00
Rod assy-cross
1979-06-01 ~ 1982-12-01; 4WD; , |
48560-43W00 |
— | ||
|
48560
|
48560
48560-50W00
Rod assy-cross
1983-01-01 ~ 1983-06-01; 4WD; , |
48560-50W00 |
— | ||
| replacement | |||||
|
48560
|
48560
48561-50W03
ﾛﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｸﾛｽ
1983-01-01 ~ 1983-06-01; 4WD; , |
48561-50W03 |
— | ||
|
48560
|
48560
48560-50W01
Rod assy-cross
1983-07-01 ~ ; *4WD; FOR POWER STEERING |
48560-50W01 |
— | ||
|
48560
|
48560
48560-50W02
Rod assy-cross
1983-07-01 ~ ; 4WD; , |
48560-50W02 |
— | ||
|
48560
|
48560
48560-50W03
Rod assy-cross
1983-07-01 ~ ; 4WD; , |
48560-50W03 |
— | ||
|
48560
|
48560
48561-50W00 ﾛﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｸﾛｽ1983-01-01 ~ 1983-06-01; *4WD; FOR POWER STEERING |
48561-50W00 |
US $205.92 |
||
|
48560
|
48560
48561-50W01 ﾛﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｸﾛｽ1983-01-01 ~ 1983-06-01; 4WD; , |
48561-50W01 |
US $205.92 |
||
| replacement | |||||
|
48560
|
48560
48561-50W03
ﾛﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｸﾛｽ
1983-01-01 ~ 1983-06-01; 4WD; , |
48561-50W03 |
— | ||
|
48560
|
48560
01227-00032
NUT
1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
01227-00032 |
— | ||
| replacement | |||||
|
48560
|
48560
0122700081 NUT1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
0122700081 |
US $2.91 |
||
|
48560
|
48560
0122700081 NUT1983-01-01 ~ ; 4WD; , |
0122700081 |
US $2.91 |
||
|
48560
|
48560
4018973000 Plug-Filler1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
4018973000 |
US $1.58 |
||
| replacement | |||||
|
48560
|
48560
401897300A Plug1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
401897300A |
US $1.58 |
||
|
48560A
|
48560A
01227-00032
NUT
1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
01227-00032 |
— | ||
| replacement | |||||
|
48560A
|
48560A
0122700081 NUT1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
0122700081 |
US $2.91 |
||
|
48560A
|
48560A
0122700081 NUT1983-01-01 ~ ; 4WD; , |
0122700081 |
US $2.91 |
||
|
48560A
|
48560A
01227-00032
NUT
1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
01227-00032 |
— | ||
| replacement | |||||
|
48560A
|
48560A
0122700081 NUT1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
0122700081 |
US $2.91 |
||
|
48560A
|
48560A
0122700081 NUT1983-01-01 ~ ; 4WD; , |
0122700081 |
US $2.91 |
||
|
48560A
|
48560A
01227-00032
NUT
1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
01227-00032 |
— | ||
| replacement | |||||
|
48560A
|
48560A
0122700081 NUT1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
0122700081 |
US $2.91 |
||
|
48560A
|
48560A
0122700081 NUT1983-01-01 ~ ; 4WD; , |
0122700081 |
US $2.91 |
||
|
48560A
|
48560A
01227-00032
NUT
1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
01227-00032 |
— | ||
| replacement | |||||
|
48560A
|
48560A
0122700081 NUT1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
0122700081 |
US $2.91 |
||
|
48560A
|
48560A
0122700081 NUT1983-01-01 ~ ; 4WD; , |
0122700081 |
US $2.91 |
||
|
48560A
|
48560A
01227-00032
NUT
1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
01227-00032 |
— | ||
| replacement | |||||
|
48560A
|
48560A
0122700081 NUT1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
0122700081 |
US $2.91 |
||
|
48560A
|
48560A
0122700081 NUT1983-01-01 ~ ; 4WD; , |
0122700081 |
US $2.91 |
||
|
48560A
|
48560A
01227-00032
NUT
1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
01227-00032 |
— | ||
| replacement | |||||
|
48560A
|
48560A
0122700081 NUT1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
0122700081 |
US $2.91 |
||
|
48560A
|
48560A
0122700081 NUT1983-01-01 ~ ; 4WD; , |
0122700081 |
US $2.91 |
||
|
48587
|
48587
48522-01W05
ｶﾊﾞ-,ﾀﾞｽﾄ
1983-01-01 ~ ; 4WD; , |
48522-01W05 |
— | ||
|
48587
|
48587
48522-01W05
ｶﾊﾞ-,ﾀﾞｽﾄ
1983-01-01 ~ ; 4WD; , |
48522-01W05 |
— | ||
|
48587
|
48587
48522-01W05
ｶﾊﾞ-,ﾀﾞｽﾄ
1983-01-01 ~ ; 4WD; , |
48522-01W05 |
— | ||
|
48587
|
48587
48522-01W05
ｶﾊﾞ-,ﾀﾞｽﾄ
1983-01-01 ~ ; 4WD; , |
48522-01W05 |
— | ||
|
48610
|
48610
48611-50W00
Damper-steering
1983-07-01 ~ ; *4WD; W/DAMPER |
48611-50W00 |
— | ||
|
48610
|
48610
56122-18000 Washer1983-07-01 ~ ; *4WD; W/DAMPER |
56122-18000 |
US $3.31 |
||
|
48610
|
48610
56124-18000 Bush1983-07-01 ~ ; *4WD; W/DAMPER |
56124-18000 |
from US $2.02 |
||
|
48610C
|
48610C
56122-18000 Washer1983-07-01 ~ ; *4WD; W/DAMPER |
56122-18000 |
US $3.31 |
||
|
48610E
|
48610E
56124-18000 Bush1983-07-01 ~ ; *4WD; W/DAMPER |
56124-18000 |
from US $2.02 |
||
|
48610E
|
48610E
56124-18000 Bush1983-07-01 ~ ; *4WD; W/DAMPER |
56124-18000 |
from US $2.02 |
||
|
48612
|
48612
48612-50W00
Pin-steering damper
1983-07-01 ~ ; *4WD; W/DAMPER |
48612-50W00 |
— | ||
|
48612
|
48612
48612-50W01
Pin-steering damper
1983-07-01 ~ ; *4WD; W/DAMPER |
48612-50W01 |
— | ||
|
48630
|
48630
48630-41W00 ﾛﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｻｲﾄﾞ1979-06-01 ~ 1982-12-01; 4WD; , |
48630-41W00 |
US $228.96 |
||
|
48630
|
48630
48630-50W00 ROD ASSYSIDE1983-01-01 ~ ; 4WD; , |
48630-50W00 |
US $228.96 |
||
|
48630
|
48630
4018973000 Plug-Filler1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
4018973000 |
US $1.58 |
||
| replacement | |||||
|
48630
|
48630
401897300A Plug1979-06-01 ~ 1982-10-01; 2WD +4WD; , |
401897300A |
US $1.58 |
||
