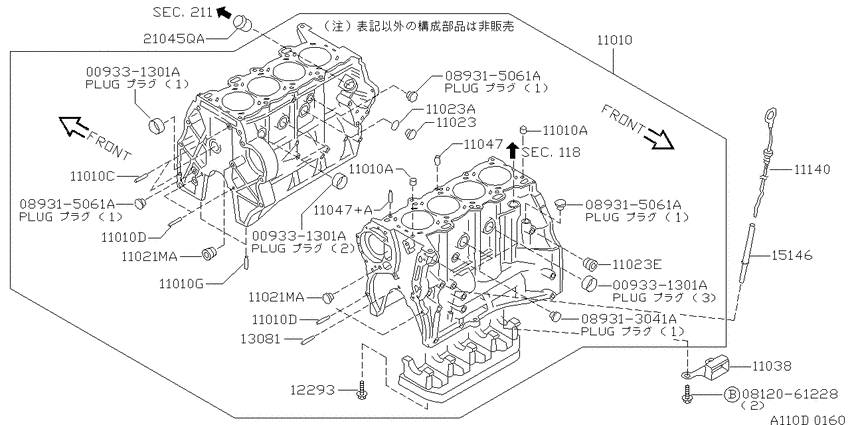

Cylinder block & oil pan (1992-06-01 ~ ; アッセンブリー; SR18DE) Diagram Nissan PRESEA
- Year
- 1992 - 2012
- Sales region
- Japan
- Engine
- SR18DE
- transmission
- MT
- grade
- CT2DS
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331301A
|
009331301A
009331301A Plug-Welch |
009331301A |
from US $1.11 |
||
|
009331301A
|
009331301A
009331301A Plug-Welch |
009331301A |
from US $1.11 |
||
|
009331301A
|
009331301A
009331301A Plug-Welch |
009331301A |
from US $1.11 |
||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
089313041A
|
089313041A
089313041A
Plug-Drain
|
089313041A |
— | ||
|
089315061A
|
089315061A
089315061A
Plug-Taper
|
089315061A |
— | ||
|
089315061A
|
089315061A
089315061A
Plug-Taper
|
089315061A |
— | ||
|
089315061A
|
089315061A
089315061A
Plug-Taper
|
089315061A |
— | ||
|
11010
|
11010
11000-64J20 Block Assy-Cylinder9206--01 ~ ; SR18DE |
11000-64J20 |
US $1,750 |
||
|
11010
|
11010
1105301M00 Dowel-Block To Head9206--01 ~ ; SR18DE |
1105301M00 |
from US $1.31 |
||
|
11010
|
11010
30412H1001 Dowel-Block9206--01 ~ ; SR18DE |
30412H1001 |
from US $0.46 |
||
|
11010
|
11010
1104673402 Dowel-Water Pump9206--01 ~ ; SR18DE |
1104673402 |
from US $0.48 |
||
|
11010
|
11010
1102277A00 Dowel-Block To Oil Pump9206--01 ~ ; SR18DE |
1102277A00 |
from US $0.52 |
||
|
11010A
|
11010A
1105301M00 Dowel-Block To Head9206--01 ~ ; SR18DE |
1105301M00 |
from US $1.31 |
||
|
11010A
|
11010A
1105301M00 Dowel-Block To Head9206--01 ~ ; SR18DE |
1105301M00 |
from US $1.31 |
||
|
11010C
|
11010C
30412H1001 Dowel-Block9206--01 ~ ; SR18DE |
30412H1001 |
from US $0.46 |
||
|
11010D
|
11010D
1104673402 Dowel-Water Pump9206--01 ~ ; SR18DE |
1104673402 |
from US $0.48 |
||
|
11010D
|
11010D
1104673402 Dowel-Water Pump9206--01 ~ ; SR18DE |
1104673402 |
from US $0.48 |
||
|
11010G
|
11010G
1102277A00 Dowel-Block To Oil Pump9206--01 ~ ; SR18DE |
1102277A00 |
from US $0.52 |
||
|
11021MA
|
11021MA
11051-D0100 Plug-Taper9206--01 ~ ; SR18DE |
11051-D0100 |
US $3.06 |
||
|
11021MA
|
11021MA
11051-D0100 Plug-Taper9206--01 ~ ; SR18DE |
11051-D0100 |
US $3.06 |
||
|
11023
|
11023
11051-53J00 Plug-Blind9206--01 ~ ; SR18DE |
11051-53J00 |
US $7.34 |
||
|
11023
|
11023
1102660U01 Gasket9206--01 ~ ; SR18DE; FIX 11023 |
1102660U01 |
from US $2.49 |
||
|
11023
|
11023
14088-V5004 Plug-Taper9206--01 ~ ; SR18DE |
14088-V5004 |
US $3.31 |
||
|
11023A
|
11023A
1102660U01 Gasket9206--01 ~ ; SR18DE; FIX 11023 |
1102660U01 |
from US $2.49 |
||
|
11023E
|
11023E
14088-V5004 Plug-Taper9206--01 ~ ; SR18DE |
14088-V5004 |
US $3.31 |
||
|
11038
|
11038
1103853J00 Plate-Baffle, Crank Case9206--01 ~ ; SR18DE |
1103853J00 |
US $14.14 |
||
|
11047
|
11047
11036-V7200 Jet-Oil, Cylinder Head9206--01 ~ ; SR18DE |
11036-V7200 |
US $2.45 |
||
| replacement | |||||
|
11047
|
11047
11036V720A Jet-Oil, Cylinder Head9206--01 ~ ; SR18DE |
11036V720A |
US $3.60 |
||
|
11047
|
11047
11047-21000 Jet-Oil, Cylinder Head9206--01 ~ ; SR18DE |
11047-21000 |
US $1.52 |
||
|
11047+A
|
11047+A
11047-21000 Jet-Oil, Cylinder Head9206--01 ~ ; SR18DE |
11047-21000 |
US $1.52 |
||
|
11140
|
11140
1114064J01 Gauge-Oil Level9206--01 ~ ; SR18DE |
1114064J01 |
US $18 |
||
|
118
|
Crankcase ventilation
118
|
||||
|
12293
|
12293
12293-64J00 Bolt-Main Bearing Cap9206--01 ~ ; SR18DE |
12293-64J00 |
US $4.18 |
||
|
13081
|
13081
13081-53J00 Jet-Oil, Timing Chain9206--01 ~ ; SR18DE |
13081-53J00 |
US $7.20 |
||
|
15146
|
15146
11150-53J00 Guide-Oil Level Gauge9206--01 ~ ; SR18DE |
11150-53J00 |
US $26.21 |
||
| replacement | |||||
|
15146
|
15146
111502J20A
ｶﾞｲﾄﾞ
9206--01 ~ ; SR18DE |
111502J20A |
— | ||
|
21045QA
|
21045QA
13049-53J05 Pipe-Suction, Water9206--01 ~ ; SR18DE; A2101ﾆﾓ ｶｿｳｾﾝ ｵ ｲﾚﾙ |
13049-53J05 |
US $72.37 |
||
|
211
|
Water hose & piping
211
|
||||
