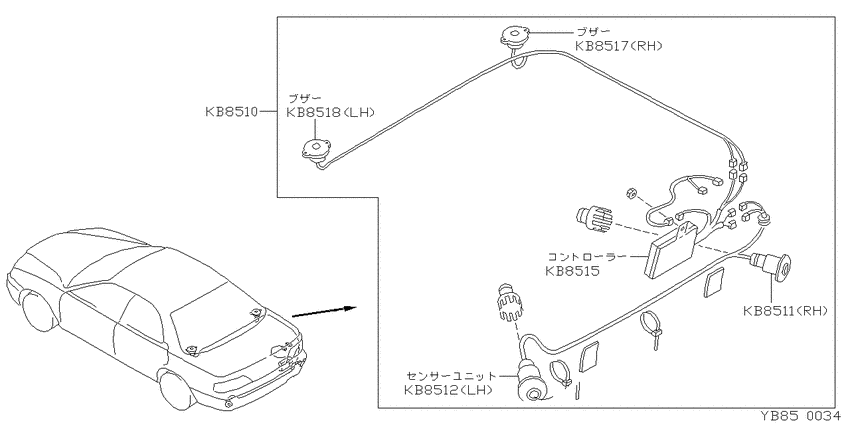

corner sensor (1995-01-01 ~ ; リヤ 左右セット; K) Diagram Nissan PRESEA
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- SR18DE
- transmission
- AT
- grade
- CT2
- body
- K
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
KB8510
|
KB8510
B9810-40Y25
ｺｰﾅｰ ｾﾝｻｰ ﾘﾔ
9501--01 ~ 9708--01; K; ﾋﾀﾞﾘｶﾞﾜｾﾝﾖｳ[K504] |
B9810-40Y25 |
— | ||
|
KB8510
|
KB8510
B9810-40Y85
ｺｰﾅｰ ｾﾝｻｰ ﾘﾔ
9501--01 ~ 9708--01; K; ｻﾕｳｾｯﾄ,ﾘﾔ[K504] |
B9810-40Y85 |
— | ||
|
KB8511
|
KB8511
B9811-89985
Sen-Corner Rr Lh
9501--01 ~ 9708--01; K; ｻﾕｳｾｯﾄ,L=1200mm,ﾊｲｲﾛ[K504] |
B9811-89985 |
— | ||
|
KB8512
|
KB8512
B9811-89925 Sen-Corner Rr Rh9501--01 ~ 9708--01; K; ｻﾕｳｾｯﾄ,L=2750mm,ｸﾛｲﾛ[K504] |
B9811-89925 |
US $129.60 |
||
|
KB8515
|
KB8515
B9812-5C000 Cont-Sen Rr9501--01 ~ 9708--01; K; ｻﾕｳｾｯﾄ[K504] |
B9812-5C000 |
US $187.20 |
||
|
KB8517
|
KB8517
B9814-50F25 Buzzer-Sen Rr Rh9501--01 ~ 9708--01; K; ﾋﾀﾞﾘｶﾞﾜｾﾝﾖｳ,L=2650mm､ｸﾛｲﾛ[K504] |
B9814-50F25 |
US $14.40 |
||
|
KB8517
|
KB8517
B9814-50F85
Buzzer-Sen Rr Lh
9501--01 ~ 9708--01; K; ｻﾕｳｾｯﾄ,L=900mm､ﾊｲｲﾛ[K504] |
B9814-50F85 |
— | ||
|
KB8518
|
KB8518
B9814-50F25 Buzzer-Sen Rr Rh9501--01 ~ 9708--01; K; ｻﾕｳｾｯﾄ,L=2650mm､ｸﾛｲﾛ[K504] |
B9814-50F25 |
US $14.40 |
