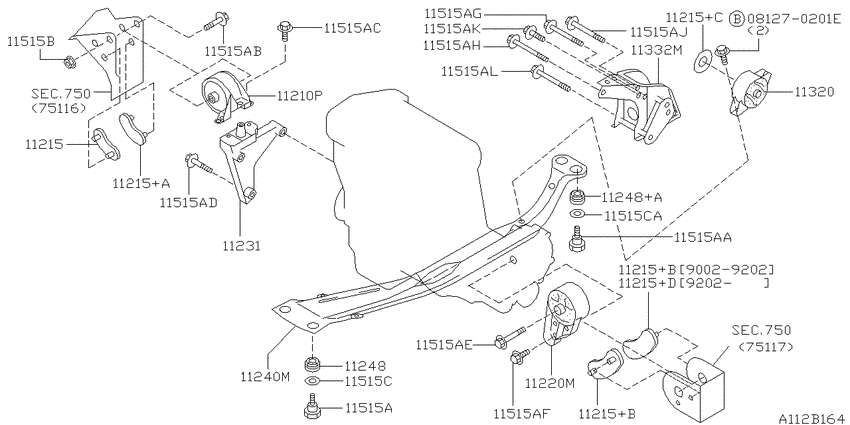

Engine & transmission mounting (1990-02-01 ~ 1992-09-01; 2WD.SR20DE.AT +SR18DI.AT) Diagram Nissan PRIMERA
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- TS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
11210P
|
11210P
11210-64J00 Insulator Assy-Engine Mounting, Front Rh9002--01 ~ 9010--01; 2WD.SR20D.AT +SR18DI.AT |
11210-64J00 |
US $158.40 |
||
|
11210P
|
11210P
11210-64J01 Insulator Assy-Engine Mounting, Front Rh9010--01 ~ 9207--01; 2WD.SR20D.AT +SR18DI.AT |
11210-64J01 |
US $158.40 |
||
|
11210P
|
11210P
11210-64J02 Insulator Assy-Engine Mounting, Front Rh9207--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
11210-64J02 |
US $158.40 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
11215-50J05 Stopper-Engine Mounting9002--01 ~ 9206--01; 2WD.SR20D.AT +SR18DI.AT |
11215-50J05 |
US $12.67 |
||
|
11215
|
11215
11215-64J00 Stopper-Engine Mounting9206--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
11215-64J00 |
US $12.67 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9002--01 ~ 9202--01; 2WD.SR20D.AT +SR18DI.AT |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
1121550A00 Stopper-Engine Mounting9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
1121550A00 |
US $11.38 |
||
|
11215
|
11215
11215-62J00 Stopper-Engine Mounting9202--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
11215-62J00 |
US $11.23 |
||
|
11215+A
|
11215+A
11215-50J05 Stopper-Engine Mounting9002--01 ~ 9206--01; 2WD.SR20D.AT +SR18DI.AT |
11215-50J05 |
US $12.67 |
||
|
11215+A
|
11215+A
11215-64J00 Stopper-Engine Mounting9206--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
11215-64J00 |
US $12.67 |
||
|
11215+B
|
11215+B
1121554E00 STOPPER-ENGINE MOUNTING9002--01 ~ 9202--01; 2WD.SR20D.AT +SR18DI.AT |
1121554E00 |
US $17.57 |
||
|
11215+B
|
11215+B
1121554E00 STOPPER-ENGINE MOUNTING9002--01 ~ 9202--01; 2WD.SR20D.AT +SR18DI.AT |
1121554E00 |
US $17.57 |
||
|
11215+C
|
11215+C
1121550A00 Stopper-Engine Mounting9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
1121550A00 |
US $11.38 |
||
|
11215+D
|
11215+D
11215-62J00 Stopper-Engine Mounting9202--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
11215-62J00 |
US $11.23 |
||
|
11220M
|
11220M
11220-64J20 Insulator Assy-Engine Mounting, Front Lh9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
11220-64J20 |
US $129.89 |
||
|
11231
|
11231
11231-53J00 Bracket-Engine Mounting9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
11231-53J00 |
US $81.87 |
||
|
11240M
|
11240M
11240-53J20 Member-Engine Mounting, Front9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
11240-53J20 |
US $734.90 |
||
|
11248
|
11248
1124851E01 PAD-ENGINE MOUNTING MEMBER9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
1124851E01 |
US $9.02 |
||
|
11248
|
11248
1124851E09 PAD-ENGINE MOUNTING MEMBER9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
1124851E09 |
from US $7.44 |
||
|
11248+A
|
11248+A
1124851E09 PAD-ENGINE MOUNTING MEMBER9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
1124851E09 |
from US $7.44 |
||
|
11320
|
11320
11320-64J20 Insulator-Engine Mounting, Rear9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
11320-64J20 |
US $85.39 |
||
|
11332M
|
11332M
1133253J20 Bracket-Engine Mounting, Rear9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
1133253J20 |
US $108.43 |
||
|
11515A
|
11515A
01125-01301 BOLT9002--01 ~ 9003--01; 2WD.SR20D.AT +SR18DI.AT |
01125-01301 |
US $2.45 |
||
|
11515A
|
11515A
01125-02401 BOLT9003--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-02401 |
US $3.06 |
||
|
11515A
|
11515A
01125-01311 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-01311 |
from US $1.15 |
||
|
11515A
|
11515A
01125-01671 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-01671 |
US $2.45 |
||
|
11515A
|
11515A
0112104241 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
0112104241 |
US $2.45 |
||
|
11515A
|
11515A
01121-04251 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01121-04251 |
US $2.45 |
||
|
11515A
|
11515A
01125-01691 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-01691 |
US $2.45 |
||
|
11515A
|
11515A
01125-02151 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-02151 |
US $2.45 |
||
|
11515A
|
11515A
01125-00831 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-00831 |
US $3.31 |
||
|
11515A
|
11515A
01125-01711 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-01711 |
US $2.45 |
||
|
11515A
|
11515A
01125-01751 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-01751 |
US $2.45 |
||
|
11515A
|
11515A
01125-02111 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-02111 |
US $2.45 |
||
|
11515A
|
11515A
01125-01731 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-01731 |
US $4.03 |
||
|
11515AA
|
11515AA
01125-01311 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-01311 |
from US $1.15 |
||
|
11515AB
|
11515AB
01125-01671 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-01671 |
US $2.45 |
||
|
11515AC
|
11515AC
0112104241 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
0112104241 |
US $2.45 |
||
|
11515AD
|
11515AD
01121-04251 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01121-04251 |
US $2.45 |
||
|
11515AE
|
11515AE
01125-01691 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-01691 |
US $2.45 |
||
|
11515AF
|
11515AF
01125-02151 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-02151 |
US $2.45 |
||
|
11515AG
|
11515AG
01125-00831 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-00831 |
US $3.31 |
||
|
11515AH
|
11515AH
01125-01711 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-01711 |
US $2.45 |
||
|
11515AJ
|
11515AJ
01125-01751 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-01751 |
US $2.45 |
||
|
11515AK
|
11515AK
01125-02111 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-02111 |
US $2.45 |
||
|
11515AL
|
11515AL
01125-01731 BOLT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01125-01731 |
US $4.03 |
||
|
11515B
|
11515B
0122500062 NUT9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
0122500062 |
from US $1.67 |
||
|
11515C
|
11515C
01311-01171 WASHER9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01311-01171 |
US $3.06 |
||
|
11515C
|
11515C
01311-01321 WASHER-PLAIN9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01311-01321 |
from US $2.45 |
||
|
11515CA
|
11515CA
01311-01321 WASHER-PLAIN9002--01 ~ 9209--01; 2WD.SR20D.AT +SR18DI.AT |
01311-01321 |
from US $2.45 |
||
|
