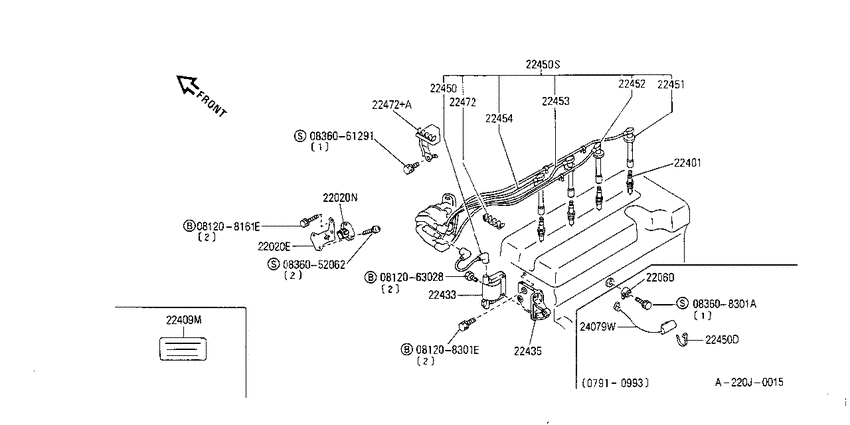

Ignition System (1991-07-01 ~ 1994-09-01; SR20DE) Diagram Nissan PRIMERA
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- GT
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812063028
|
0812063028
08120-63028
Bolt-hexagon
|
08120-63028 |
— | ||
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081208301E
|
081208301E
08120-8301E
Bolt-hexagon
|
08120-8301E |
— | ||
|
0836052062
|
0836052062
0836052062
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836052062 |
— | ||
|
0836061291
|
0836061291
08360-61291
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61291 |
— | ||
|
083608301A
|
083608301A
083608301A
ｽｸﾘﾕ-,ﾏｼﾝ
|
083608301A |
— | ||
|
22020E
|
22020E
22435-58Y00 Bracket-Transistor Ignition9107--01 ~ 9309--01; SR20DE.AT |
22435-58Y00 |
US $53.14 |
||
|
22020E
|
22020E
22435-78J00 Bracket-Transistor Ignition9309--01 ~ 9409--01; SR20DE.AT |
22435-78J00 |
US $58.61 |
||
|
22020N
|
22020N
22020-70J00 Power Transistor Assy9107--01 ~ 9409--01; SR20DE.AT |
22020-70J00 |
US $182.88 |
||
|
22060
|
22060
2206030P00 Knock Sensor9107--01 ~ 9309--01; SR20DE.AT |
2206030P00 |
from US $174.64 |
||
|
22060
|
22060
2206030P00 Knock Sensor9309--01 ~ 9409--01; SR20DE.AT |
2206030P00 |
from US $174.64 |
||
|
22401
|
22401
2240127N65 Spark Plug (NGK PFR5B-11)9107--01 ~ 9309--01; SR20DE.AT; PFR5B-11[B512] |
2240127N65 |
US $21.60 |
||
|
22401
|
22401
2240127N66 Spark Plug (NGK PFR6B-11)9107--01 ~ 9309--01; SR20DE.AT; PFR6B-11[B512] |
2240127N66 |
US $21.60 |
||
|
22401
|
22401
22401-27N67 Spark Plug (NGK PFR7B-11)9107--01 ~ 9309--01; SR20DE.AT; PFR7B-11[B512] |
22401-27N67 |
US $21.60 |
||
|
22409M
|
22409M
2240958S00 Label-Spark Plug9107--01 ~ 9309--01; 5HB.SR20DE |
2240958S00 |
US $5.27 |
||
|
22433
|
22433
2243355S10 Coil Assy-Ignition9107--01 ~ 9409--01; SR20DE.AT |
2243355S10 |
US $119.95 |
||
|
22435
|
22435
22435-0E001 BRACKET-IGNITION COIL9202--01 ~ 9409--01; SR20DE.AT |
22435-0E001 |
US $27.79 |
||
|
22435
|
22435
22435-53J01 Bracket-Ignition Coil9107--01 ~ 9202--01; SR20DE.AT |
22435-53J01 |
US $25.06 |
||
|
22450
|
22450
22450-70J00 Cable Assy-Ignition Coil To Distributor9107--01 ~ 9309--01; SR20DE.AT |
22450-70J00 |
US $28.22 |
||
|
22450
|
22450
22450-89J00 Cable Assy-Ignition Coil To Distributor9309--01 ~ 9409--01; SR20DE.AT |
22450-89J00 |
US $27.65 |
||
|
22450
|
22450
24346-79984 Clip9107--01 ~ 9309--01; SR20DE.AT |
24346-79984 |
US $4.03 |
||
| replacement | |||||
|
22450
|
22450
2434627N05 Clip-Connector9107--01 ~ 9309--01; SR20DE.AT |
2434627N05 |
US $4.16 |
||
|
22450
|
22450
22450-70J25 Cable Set-High Tension9107--01 ~ 9309--01; SR20DE.AT |
22450-70J25 |
US $194.40 |
||
|
22450
|
22450
22450-89J25 Cable Set-High Tension9309--01 ~ 9409--01; SR20DE.AT |
22450-89J25 |
US $194.40 |
||
|
22450D
|
22450D
24346-79984 Clip9107--01 ~ 9309--01; SR20DE.AT |
24346-79984 |
US $4.03 |
||
| replacement | |||||
|
22450D
|
22450D
2434627N05 Clip-Connector9107--01 ~ 9309--01; SR20DE.AT |
2434627N05 |
US $4.16 |
||
|
22450S
|
22450S
22450-70J25 Cable Set-High Tension9107--01 ~ 9309--01; SR20DE.AT |
22450-70J25 |
US $194.40 |
||
|
22450S
|
22450S
22450-89J25 Cable Set-High Tension9309--01 ~ 9409--01; SR20DE.AT |
22450-89J25 |
US $194.40 |
||
|
22451
|
22451
22451-70J00 Cable Assy-High Tension, No 19107--01 ~ 9409--01; SR20DE.AT |
22451-70J00 |
US $47.66 |
||
|
22451
|
22451
22451-89J00 Cable Assy-High Tension, No 19409--01 ~ 9501--01; SR20DE.AT |
22451-89J00 |
US $46.66 |
||
|
22451
|
22451
22451-89J10 Cable Assy-High Tension, No 19501--01 ~ ; SR20DE.AT |
22451-89J10 |
US $47.66 |
||
|
22452
|
22452
22452-70J00 Cable Assy-High Tension, No 29107--01 ~ 9409--01; SR20DE.AT |
22452-70J00 |
US $47.66 |
||
|
22452
|
22452
22452-89J00 Cable Assy-High Tension, No 29409--01 ~ 9501--01; SR20DE.AT |
22452-89J00 |
US $46.66 |
||
|
22452
|
22452
22452-89J10 Cable Assy-High Tension, No 29501--01 ~ ; SR20DE.AT |
22452-89J10 |
US $43.49 |
||
|
22453
|
22453
22453-70J00 Cable Assy-High Tension, No 39107--01 ~ 9409--01; SR20DE.AT |
22453-70J00 |
US $47.66 |
||
|
22453
|
22453
22453-89J00 Cable Assy-High Tension, No 39409--01 ~ 9501--01; SR20DE.AT |
22453-89J00 |
US $46.66 |
||
|
22453
|
22453
22453-89J10 Cable Assy-High Tension, No 39501--01 ~ ; SR20DE.AT |
22453-89J10 |
US $47.66 |
||
|
22454
|
22454
22454-70J00 Cable Assy-High Tension, No 49107--01 ~ 9409--01; SR20DE.AT |
22454-70J00 |
US $47.66 |
||
|
22454
|
22454
22454-89J00 Cable Assy-High Tension, No 49409--01 ~ 9501--01; SR20DE.AT |
22454-89J00 |
US $46.66 |
||
|
22454
|
22454
22454-89J10 Cable Assy-High Tension, No 49501--01 ~ ; SR20DE.AT |
22454-89J10 |
US $47.66 |
||
|
22472
|
22472
2247253J06 Clamp-High Tension Cable9107--01 ~ 9409--01; SR20DE.AT |
2247253J06 |
US $3.60 |
||
|
22472
|
22472
22472-53J10 Clamp-High Tension Cable9107--01 ~ 9409--01; SR20DE.AT |
22472-53J10 |
US $4.42 |
||
|
22472+A
|
22472+A
22472-53J10 Clamp-High Tension Cable9107--01 ~ 9409--01; SR20DE.AT |
22472-53J10 |
US $4.42 |
||
|
24079W
|
24079W
24079-60J01 Harness-Engine Sub9107--01 ~ 9309--01; SR20DE.AT |
24079-60J01 |
US $119.38 |
||
