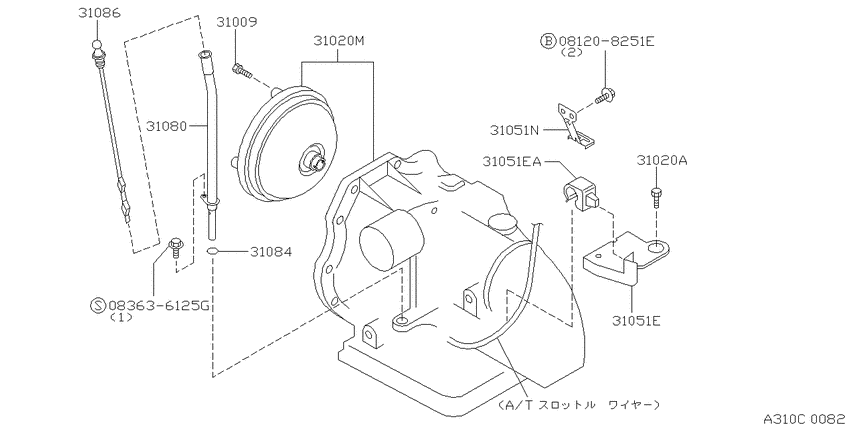

Auto transmission,transaxle & fitting (1995-09-01 ~ 1997-09-01; ｱｯｾﾝﾌﾞﾘｰ & ｵｲﾙﾁｬｰｼﾞﾝｸﾞﾊﾟｰﾂ; 4WD.AT) Diagram Nissan PRIMERA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 4WD
- transmission
- AT.F4
- grade
- T4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208251E
|
081208251E
08120-8251E Bolt-hexagon |
08120-8251E |
from US $0.63 |
||
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G
SCREWMACHINE
|
083606125G |
— | ||
|
31009
|
31009
3100921X00 Bolt-Self Lock9509--01 ~ 9709--01; 4WD.AT |
3100921X00 |
from US $2.65 |
||
|
31020A
|
31020A
01125-02501 BOLT9509--01 ~ 9709--01; 4WD.AT |
01125-02501 |
US $2.45 |
||
|
31020M
|
31020M
31020-35X07 Transaxle Assy-Automatic9509--01 ~ 9709--01; 4WD.AT |
31020-35X07 |
US $4,368 |
||
|
31020M
|
31020M
31020-36X69 Transaxle Assy-Automatic9904--01 ~ ; SR20DE.AT.F4 |
31020-36X69 |
US $4,368 |
||
|
31051E
|
31051E
24210-3J220 Clip-Throttle Wire9509--01 ~ 9709--01; 4WD.AT |
24210-3J220 |
US $4.18 |
||
|
31051E
|
31051E
24220-3J215 Clip-Throttle Wire9509--01 ~ 9709--01; 4WD.AT |
24220-3J215 |
US $4.18 |
||
|
31051EA
|
31051EA
24220-3J215 Clip-Throttle Wire9509--01 ~ 9709--01; 4WD.AT |
24220-3J215 |
US $4.18 |
||
|
31051N
|
31051N
31054-2J311 Bracket-Auto Transmission Throttle Wire9509--01 ~ 9709--01; 4WD.AT |
31054-2J311 |
US $24.77 |
||
|
31051N
|
31051N
31054-2J315 Bracket-Auto Transmission Throttle Wire9904--01 ~ ; SR20DE.AT.F4 |
31054-2J315 |
US $24.77 |
||
|
31080
|
31080
31080-2J300 Pipe Assy-Oil Charging9509--01 ~ 9605--01; 4WD.AT |
31080-2J300 |
US $64.66 |
||
|
31080
|
31080
31080-2J301 Pipe Assy-Oil Charging9605--01 ~ 9709--01; 4WD.AT |
31080-2J301 |
US $44.78 |
||
|
31080
|
31080
31080-WA010 Pipe Assy-Oil Charging9809--01 ~ ; SR20DE.AT.F4 |
31080-WA010 |
US $49.25 |
||
|
31084
|
31084
31084M7500 Seal-O Ring9509--01 ~ 9709--01; 4WD.AT |
31084M7500 |
US $1.15 |
||
|
31086
|
31086
31086-1N000 Gauge Assy-Oil Level9509--01 ~ 9709--01; 4WD.AT |
31086-1N000 |
US $20.16 |
||
|
31086
|
31086
31086-WA000 Gauge Assy-Oil Level9809--01 ~ 9907--01; SR20DE.AT.F4 |
31086-WA000 |
US $20.16 |
||
|
31086
|
31086
31086-WA001 Gauge Assy-Oil Level9907--01 ~ 0111--01; SR20DE.AT.F4 |
31086-WA001 |
US $18.58 |
||
|
31086
|
31086
31086WA010 Gauge Assy-Oil Level0111--01 ~ ; SR20DE.AT.F4 |
31086WA010 |
US $16.85 |
||
