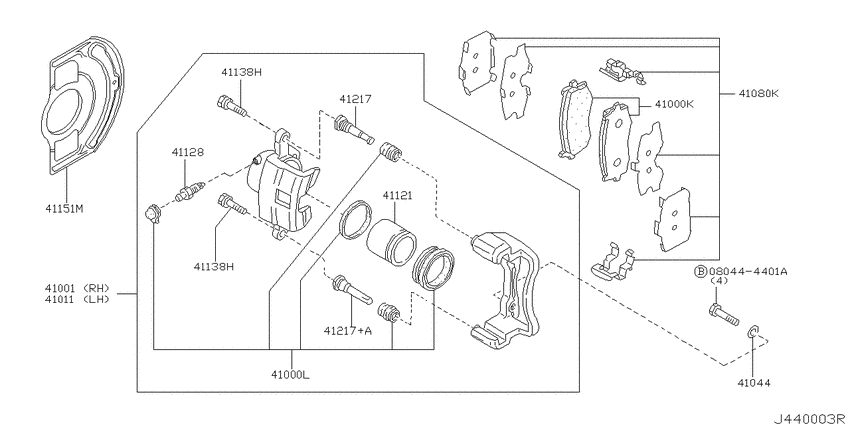

Front brake (2001-08-01 ~ 2003-07-01; SR20VE) Diagram Nissan PRIMERA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- SR20VE
- drive
- 2WD
- transmission
- MT
- grade
- 20V
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080444401A
|
080444401A
08044-4401A
Bolt-hexagon
|
08044-4401A |
— | ||
|
41000K
|
41000K
AY040NS102 Pad Kit-Disc Brake0108--01 ~ 0307--01; SR20VE |
AY040NS102 |
US $142.56 |
||
|
41000L
|
41000L
AY600NS013 Seal Kit-Disc Brake0108--01 ~ 0307--01; SR20VE |
AY600NS013 |
US $45.60 |
||
|
41001
|
41001
41001-AU002 Caliper Assy-Front Rh, W/o Pads Or Shims0108--01 ~ 0307--01; SR20VE |
41001-AU002 |
US $470.11 |
||
|
41011
|
41011
41011-AU002 Caliper Assy-Front Lh, W/o Pads Or Shims0108--01 ~ 0307--01; SR20VE |
41011-AU002 |
US $470.11 |
||
|
41044
|
41044
41044-6P010 Washer0108--01 ~ 0307--01; SR20VE |
41044-6P010 |
US $3.46 |
||
|
41080K
|
41080K
41080AU025 Hardware Kit-Front Disc Brake Pad0108--01 ~ 0307--01; SR20VE |
41080AU025 |
from US $55.57 |
||
|
41121
|
41121
4112171E00 PISTON-CYLINDER0108--01 ~ 0307--01; SR20VE |
4112171E00 |
from US $59.88 |
||
|
41128
|
41128
4112888E01
SCREW-BLEEDER
0108--01 ~ 0307--01; SR20VE |
4112888E01 |
— | ||
| replacement | |||||
|
41128
|
41128
41128AW70A Screw-Bleeder0108--01 ~ 0307--01; SR20VE |
41128AW70A |
from US $7.63 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
0108--01 ~ 0307--01; SR20VE |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt0108--01 ~ 0307--01; SR20VE |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
0108--01 ~ 0307--01; SR20VE |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt0108--01 ~ 0307--01; SR20VE |
44141AW70A |
from US $3.35 |
||
|
41151M
|
41151M
41151AU000 Plate-Baffle0108--01 ~ 0307--01; SR20VE |
41151AU000 |
US $43.06 |
||
|
41217
|
41217
44140N9500 Pin-Lock0108--01 ~ 0307--01; SR20VE |
44140N9500 |
from US $8.45 |
||
|
41217
|
41217
44139-2Y000 Pin-Slide0108--01 ~ 0307--01; SR20VE |
44139-2Y000 |
US $15.12 |
||
|
41217+A
|
41217+A
44139-2Y000 Pin-Slide0108--01 ~ 0307--01; SR20VE |
44139-2Y000 |
US $15.12 |
||
