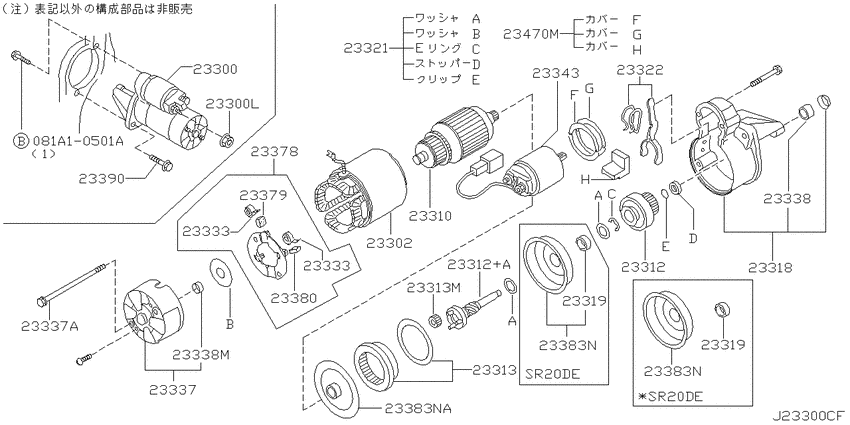

Starter motor (2001-08-01 ~ 2003-07-01; 日立; SR20VE) Diagram Nissan PRIMERA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- SR20VE
- drive
- 2WD
- transmission
- MT
- grade
- 20V
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A10501A
|
081A10501A
081A10501A ﾎﾞﾙﾄ |
081A10501A |
US $2.34 |
||
|
23300
|
23300
23300-5J201 Motor Assy-Starter0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23300-5J201 |
US $1,309.80 |
||
|
23300
|
23300
0122100381 NUT0108--01 ~ 0307--01; SR20VE |
0122100381 |
US $7.91 |
||
|
23300L
|
23300L
0122100381 NUT0108--01 ~ 0307--01; SR20VE |
0122100381 |
US $7.91 |
||
|
23302
|
23302
23302-2J200 Yoke Assy0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23302-2J200 |
US $253.44 |
||
| replacement | |||||
|
23302
|
23302
23302-0M30A Yoke Assy0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23302-0M30A |
US $253.44 |
||
|
23310
|
23310
2331031U00 Armature Assy0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
2331031U00 |
US $283.68 |
||
|
23312
|
23312
233122J200 Pinion Assy0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
233122J200 |
US $140.98 |
||
|
23312
|
23312
23313-2J200 Pinion Assy0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23313-2J200 |
US $97.78 |
||
|
23312+A
|
23312+A
23313-2J200 Pinion Assy0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23313-2J200 |
US $97.78 |
||
|
23313
|
23313
23361-0M300 Gear0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23361-0M300 |
US $51.55 |
||
|
23313
|
23313
23367-31U01 Planet Gear0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23367-31U01 |
US $16.13 |
||
|
23313M
|
23313M
23367-31U01 Planet Gear0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23367-31U01 |
US $16.13 |
||
|
23318
|
23318
23318-5J200 Case Assy-Gear0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23318-5J200 |
US $159.84 |
||
|
23319
|
23319
23319-97E00 METAL-GEAR CASE0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23319-97E00 |
US $11.66 |
||
|
23319
|
23319
23319-97E00 METAL-GEAR CASE0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23319-97E00 |
US $11.66 |
||
|
23321
|
23321
233200M300 Washer Set-Thrust0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
233200M300 |
US $6.34 |
||
|
23322
|
23322
233220M300 Lever Set-Shift0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
233220M300 |
from US $19.30 |
||
|
23333
|
23333
23333-50Y02 Spring-Brush0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23333-50Y02 |
US $6.24 |
||
|
23333
|
23333
23333-50Y02 Spring-Brush0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23333-50Y02 |
US $6.24 |
||
|
23337
|
23337
23337-0M300 Cover Assy-Rear0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23337-0M300 |
US $51.70 |
||
|
23337
|
23337
23340-M4900 Bolt-Through0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23338
|
23338
23338N3300 Metal-Rear Cover0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23338N3300 |
US $5.18 |
||
|
23338
|
23338
2333897E00 BEARING-REAR COVER0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
2333897E00 |
US $10.37 |
||
|
23338M
|
23338M
2333897E00 BEARING-REAR COVER0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
2333897E00 |
US $10.37 |
||
|
23343
|
23343
23343-77A01 Switch Assy-Magnetic0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23343-77A01 |
US $168.48 |
||
|
23378
|
23378
23378-0M300 Holder Assy-Brush0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23378-0M300 |
US $54.43 |
||
|
23379
|
23379
23379-0M300 Brush-Minus0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23379-0M300 |
US $10.08 |
||
|
23380
|
23380
23380-0M300 Brush-Plus0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23380-0M300 |
US $15.98 |
||
|
23383N
|
23383N
23383-2J201 Bracket Assy-Center0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23383-2J201 |
US $26.78 |
||
|
23383N
|
23383N
23383-0M301 Bracket Assy-Center0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23383-0M301 |
US $26.78 |
||
|
23383N
|
23383N
23383-2J201 Bracket Assy-Center0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23383-2J201 |
US $26.78 |
||
|
23383N
|
23383N
23383-0M301 Bracket Assy-Center0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23383-0M301 |
US $26.78 |
||
|
23383NA
|
23383NA
23383-0M301 Bracket Assy-Center0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23383-0M301 |
US $26.78 |
||
|
23390
|
23390
23390-AW010 Bolt0108--01 ~ 0307--01; SR20VE |
23390-AW010 |
US $4.32 |
||
|
23470M
|
23470M
23470-0M300 Cover-Dust0108--01 ~ 0307--01; SR20VE; ﾋﾀﾁ |
23470-0M300 |
US $10.08 |
||
