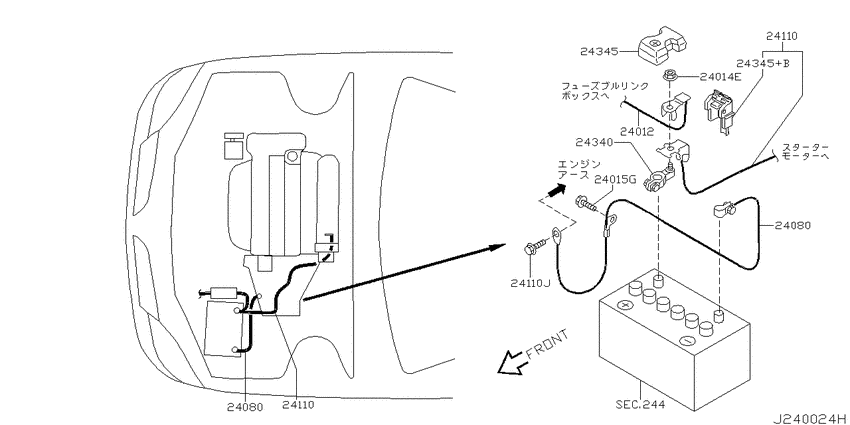

Wiring (2001-08-01 ~ 2003-07-01; ﾊﾞｯﾃﾘｰ ﾏﾜﾘ; S.SR20VE) Diagram Nissan PRIMERA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- SR20VE
- drive
- 2WD
- transmission
- MT
- grade
- 20V
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24012
|
24012
24012-AW000 Harness Assy-Engine Room0108--01 ~ 0201--01; S.SR20VE |
24012-AW000 |
US $2,912 |
||
|
24012
|
24012
24012-AW001 Harness Assy-Engine Room0108--01 ~ 0201--01; *S.SR20VE |
24012-AW001 |
US $2,912 |
||
|
24012
|
24012
24012-AW002 Harness Assy-Engine Room0108--01 ~ 0201--01; *S.SR20VE |
24012-AW002 |
US $2,912 |
||
|
24012
|
24012
24012-AW010 Harness Assy-Engine Room0201--01 ~ 0307--01; S.SR20VE |
24012-AW010 |
US $2,912 |
||
|
24012
|
24012
24012-AW011 Harness Assy-Engine Room0201--01 ~ 0307--01; *S.SR20VE |
24012-AW011 |
US $2,912 |
||
|
24012
|
24012
24012-AW012 Harness Assy-Engine Room0201--01 ~ 0307--01; *S.SR20VE |
24012-AW012 |
US $2,912 |
||
|
24012
|
24012
0145600411 SCREW0108--01 ~ 0307--01; S.SR20VE |
0145600411 |
US $1.67 |
||
|
24012
|
24012
01466-00371 SCREW0108--01 ~ 0307--01; S.SR20VE |
01466-00371 |
US $1.73 |
||
|
24014E
|
24014E
0122100381 NUT0108--01 ~ 0307--01; S.SR20VE |
0122100381 |
from US $5.37 |
||
|
24015G
|
24015G
0145600411 SCREW0108--01 ~ 0307--01; S.SR20VE |
0145600411 |
US $1.67 |
||
|
24080
|
24080
24080-8H311 Cable Assy-Battery Earth0108--01 ~ 0307--01; S.SR20VE |
24080-8H311 |
US $52.13 |
||
|
24080
|
24080
24080-8H311 Cable Assy-Battery Earth0108--01 ~ 0307--01; S.SR20VE |
24080-8H311 |
US $52.13 |
||
|
24110
|
24110
24110-AW001 Cable Assy-Battery To Starter Motor0108--01 ~ 0307--01; S.SR20VE |
24110-AW001 |
US $122.54 |
||
|
24110
|
24110
01121-03151 BOLT0108--01 ~ 0307--01; S.SR20VE |
01121-03151 |
US $2.74 |
||
|
24110
|
24110
24110-AW001 Cable Assy-Battery To Starter Motor0108--01 ~ 0307--01; S.SR20VE |
24110-AW001 |
US $122.54 |
||
|
24110
|
24110
01121-03151 BOLT0108--01 ~ 0307--01; S.SR20VE |
01121-03151 |
US $2.74 |
||
|
24110J
|
24110J
01121-03151 BOLT0108--01 ~ 0307--01; S.SR20VE |
01121-03151 |
US $2.74 |
||
|
24340
|
24340
243407F003 Terminal Assy-Battery0108--01 ~ 0307--01; S.SR20VE |
243407F003 |
from US $8.78 |
||
|
24345
|
24345
24345-AD003 Cover-Connector0108--01 ~ 0307--01; S.SR20VE |
24345-AD003 |
US $18.02 |
||
|
24345
|
24345
24345-AU000 Cover-Connector0108--01 ~ 0307--01; S.SR20VE |
24345-AU000 |
US $16.99 |
||
|
24345
|
24345
24345-AD010 Cover-Connector0108--01 ~ 0307--01; S.SR20VE |
24345-AD010 |
US $12.96 |
||
|
24345
|
24345
24345-AU001 Cover-Battery Terminak0108--01 ~ 0307--01; S.SR20VE |
24345-AU001 |
US $16.99 |
||
|
24345+B
|
24345+B
24345-AD010 Cover-Connector0108--01 ~ 0307--01; S.SR20VE |
24345-AD010 |
US $12.96 |
||
|
244
|
Battery & battery mounting
244
|
||||
|
244
|
Battery & battery mounting
244
|
||||
|
244
|
Battery & battery mounting
244
|
||||
|
244
|
Battery & battery mounting
244
|
||||
