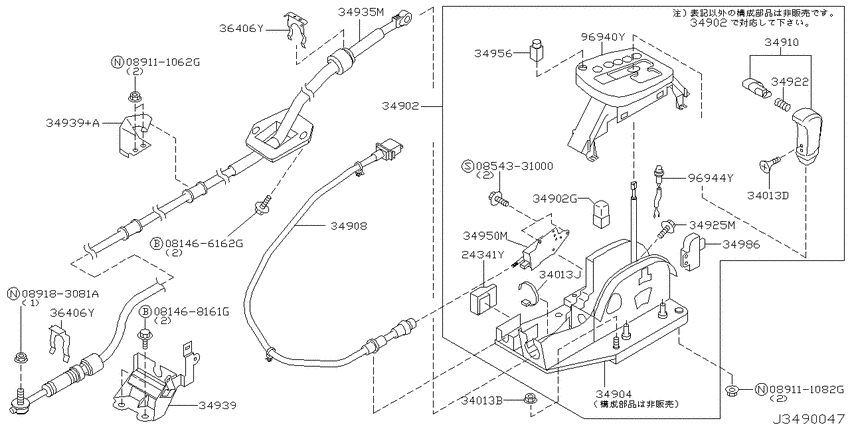

Auto transmission control device (2001-01-01 ~ 2003-07-01; QR25DD) Diagram Nissan PRIMERA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- QR25DD
- drive
- 2WD
- transmission
- MCVT
- grade
- 25X
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.67 |
||
|
081468161G
|
081468161G
081468161G Bolt-hexagon |
081468161G |
US $3.06 |
||
|
0854331000
|
0854331000
08543-31000
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-31000 |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089183081A
|
089183081A
089183081A NUT FLANGE HEX |
089183081A |
US $0.93 |
||
|
24341Y
|
24341Y
24341-0P011 Housing-Connector0101--01 ~ 0307--01; QR25DD |
24341-0P011 |
US $3.31 |
||
|
34013B
|
34013B
0122500371 NUT0101--01 ~ 0307--01; QR25DD |
0122500371 |
US $1.73 |
||
|
34013D
|
34013D
0141300051 SCREW0101--01 ~ 0307--01; QR25DD |
0141300051 |
from US $0.37 |
||
|
34013J
|
34013J
2421633G00 Band-Harness, Transfer Switch0101--01 ~ 0307--01; QR25DD |
2421633G00 |
from US $2.09 |
||
|
34902
|
34902
34901-AV300 Device Assy-Transmission Control0101--01 ~ 0205--01; QR25DD |
34901-AV300 |
US $771.72 |
||
|
34902
|
34902
34901-AV310 Device Assy-Transmission Control0101--01 ~ 0301--01; *QR25DD |
34901-AV310 |
US $836.86 |
||
|
34902
|
34902
34901-AV320 Device Assy-Transmission Control0301--01 ~ 0307--01; QR25DD |
34901-AV320 |
US $1,097.40 |
||
|
34902
|
34902
25230-79915 Relay-Egi0101--01 ~ 0307--01; QR25DD |
25230-79915 |
US $25.78 |
||
|
34902
|
34902
34901-AV300 Device Assy-Transmission Control0101--01 ~ 0205--01; QR25DD |
34901-AV300 |
US $771.72 |
||
|
34902
|
34902
34901-AV310 Device Assy-Transmission Control0101--01 ~ 0301--01; *QR25DD |
34901-AV310 |
US $836.86 |
||
|
34902
|
34902
34901-AV320 Device Assy-Transmission Control0301--01 ~ 0307--01; QR25DD |
34901-AV320 |
US $1,097.40 |
||
|
34902
|
34902
25230-79915 Relay-Egi0101--01 ~ 0307--01; QR25DD |
25230-79915 |
US $25.78 |
||
|
34902G
|
34902G
25230-79915 Relay-Egi0101--01 ~ 0307--01; QR25DD |
25230-79915 |
US $25.78 |
||
|
34904
|
34904
34904-AV300 Bracket Compl-Control Lever0101--01 ~ 0307--01; QR25DD |
34904-AV300 |
US $352.58 |
||
|
34908
|
34908
34908-AV300 Cable Assy-Key Inter Lock0101--01 ~ 0307--01; QR25DD |
34908-AV300 |
US $67.10 |
||
|
34910
|
34910
34910-AV300 Knob Assy-Control Lever, Auto0101--01 ~ 0205--01; QR25DD |
34910-AV300 |
US $84.67 |
||
|
34910
|
34910
34910-AV310 Knob Assy-Control Lever, Auto0101--01 ~ 0307--01; *QR25DD |
34910-AV310 |
US $167.04 |
||
|
34922
|
34922
3492201P00 Spring-Return, Button0101--01 ~ 0307--01; QR25DD |
3492201P00 |
from US $1.81 |
||
|
34925M
|
34925M
34925-64J00 Screw0101--01 ~ 0307--01; QR25DD |
34925-64J00 |
US $2.45 |
||
| replacement | |||||
|
34925M
|
34925M
34925-EB30A Screw0101--01 ~ 0307--01; QR25DD |
34925-EB30A |
US $1.73 |
||
|
34935M
|
34935M
34935-AV300 Cable Assy-Control0101--01 ~ 0307--01; QR25DD |
34935-AV300 |
US $103.97 |
||
|
34939
|
34939
34939-4M510 Bracket-Cable Mounting0101--01 ~ 0307--01; QR25DD |
34939-4M510 |
US $18.43 |
||
|
34939
|
34939
34939-5M800 Bracket-Cable Mounting0101--01 ~ 0307--01; QR25DD |
34939-5M800 |
US $22.61 |
||
|
34939+A
|
34939+A
34939-5M800 Bracket-Cable Mounting0101--01 ~ 0307--01; QR25DD |
34939-5M800 |
US $22.61 |
||
|
34950M
|
34950M
34950-4U100 Shift Lock Solenoid & Park Switch Assy0101--01 ~ 0203--01; QR25DD |
34950-4U100 |
US $128.30 |
||
|
34950M
|
34950M
34950-AV300 Shift Lock Solenoid & Park Switch Assy0203--01 ~ 0307--01; QR25DD |
34950-AV300 |
US $167.04 |
||
|
34956
|
34956
34956-AV300 Knob-Release Lever0101--01 ~ 0205--01; *QR25DD |
34956-AV300 |
US $6.05 |
||
|
34986
|
34986
34986-3J400 Switch Assy-Shift0101--01 ~ 0307--01; QR25DD |
34986-3J400 |
US $19.15 |
||
|
36406Y
|
36406Y
36406-4M400 Plate-Lock0101--01 ~ 0307--01; QR25DD |
36406-4M400 |
US $3.46 |
||
| replacement | |||||
|
36406Y
|
36406Y
364064M40A Plate-Lock0101--01 ~ 0307--01; QR25DD |
364064M40A |
from US $2.66 |
||
|
36406Y
|
36406Y
36406-4M400 Plate-Lock0101--01 ~ 0307--01; QR25DD |
36406-4M400 |
US $3.46 |
||
| replacement | |||||
|
36406Y
|
36406Y
364064M40A Plate-Lock0101--01 ~ 0307--01; QR25DD |
364064M40A |
from US $2.66 |
||
|
96940Y
|
96940Y
96940-AV300 Indicator Assy-Auto Transmission Control0101--01 ~ 0307--01; QR25DD |
96940-AV300 |
US $118.80 |
||
|
96944Y
|
96944Y
96942-AV310 Bulb-Indicator0101--01 ~ 0307--01; QR25DD |
96942-AV310 |
US $9.22 |
||
