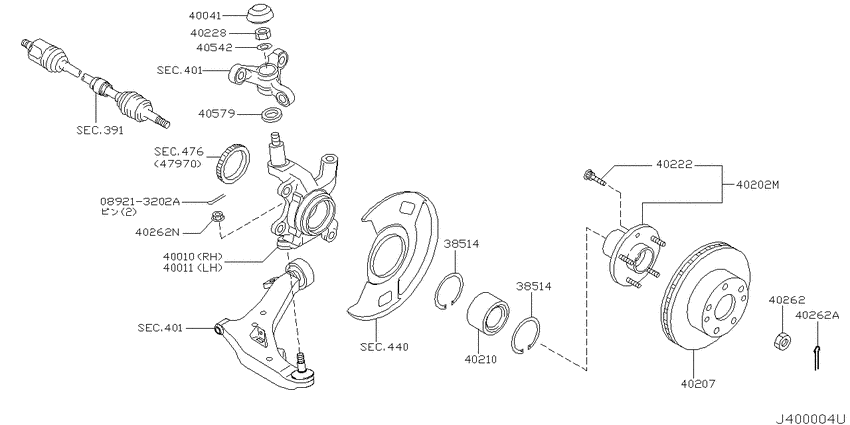

Front axle (2002-05-01 ~ 2003-07-01; QR20DE.AT) Diagram Nissan PRIMERA
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 4WD
- transmission
- AT
- grade
- 20G
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089213202A
|
089213202A
089213202A PINCOTTER SPLI |
089213202A |
US $2.21 |
||
|
38514
|
38514
4021405U00 Ring-Snap0101--01 ~ 0205--01; QR20DE.AT |
4021405U00 |
from US $3.44 |
||
|
38514
|
38514
4021405U00 Ring-Snap0101--01 ~ 0205--01; QR20DE.AT |
4021405U00 |
from US $3.44 |
||
|
391
|
Front drive shaft (ff)
391
|
||||
|
391
|
Front drive shaft (ff)
391
|
||||
|
391
|
Front drive shaft (ff)
391
|
||||
|
391
|
Front drive shaft (ff)
391
|
||||
|
40010
|
40010
40010-AU700 Knuckle Assy, Rh0101--01 ~ 0205--01; QR20DE.AT |
40010-AU700 |
US $590.47 |
||
|
40011
|
40011
40011-AU700 Knuckle Assy, Lh0101--01 ~ 0205--01; QR20DE.AT |
40011-AU700 |
US $590.47 |
||
|
40041
|
40041
4004150J03 Cap-Kingpin0101--01 ~ 0205--01; QR20DE.AT |
4004150J03 |
from US $8.73 |
||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
40202M
|
40202M
402024U010 Hub Assy-Road Wheel, Front0101--01 ~ 0205--01; QR20DE.AT |
402024U010 |
from US $213.69 |
||
|
40207
|
40207
402062Y003 Rotor-Disc Brake, Front0108--01 ~ 0205--01; S.QR20DE.AT |
402062Y003 |
US $329.46 |
||
|
40207
|
40207
40206-AL500 Rotor-Disc Brake, Front0108--01 ~ 0205--01; *S.QR20DE.AT |
40206-AL500 |
US $200.16 |
||
| replacement | |||||
|
40207
|
40207
402069Y000 Rotor-Disc Brake, Front0108--01 ~ 0205--01; *S.QR20DE.AT |
402069Y000 |
from US $149.09 |
||
|
40210
|
40210
402102Y000 Bearing Assy-Front Wheel0101--01 ~ 0205--01; QR20DE.AT |
402102Y000 |
from US $59.74 |
||
|
40222
|
40222
4322270T00 Bolt-Hub0101--01 ~ 0205--01; QR20DE.AT |
4322270T00 |
from US $1.30 |
||
|
40228
|
40228
0122500491 NUT ASSY-BEARING LOCK0101--01 ~ 0205--01; QR20DE.AT |
0122500491 |
from US $3.06 |
||
|
40262
|
40262
402622Y000 Nut-Lock0101--01 ~ 0205--01; QR20DE.AT |
402622Y000 |
from US $3.13 |
||
|
40262
|
40262
400730L700 Pin-Cotter0101--01 ~ 0205--01; QR20DE.AT |
400730L700 |
from US $0.52 |
||
|
40262
|
40262
40262-8H300 Nut-Knuckle Spindle0101--01 ~ 0205--01; QR20DE.AT |
40262-8H300 |
US $12.38 |
||
|
40262A
|
40262A
400730L700 Pin-Cotter0101--01 ~ 0205--01; QR20DE.AT |
400730L700 |
from US $0.52 |
||
|
40262N
|
40262N
40262-8H300 Nut-Knuckle Spindle0101--01 ~ 0205--01; QR20DE.AT |
40262-8H300 |
US $12.38 |
||
|
40542
|
40542
4026450J05 Washer-Lock, Front Wheel0101--01 ~ 0205--01; QR20DE.AT |
4026450J05 |
US $10.66 |
||
|
40579
|
40579
40579AU000 Seal-Grease, Knuckle Flange0101--01 ~ 0205--01; QR20DE.AT |
40579AU000 |
US $39.74 |
||
|
440
|
Front brake
440
|
||||
|
440
|
Front brake
440
|
||||
|
440
|
Front brake
440
|
||||
|
476
|
Anti skid control
476
|
||||
|
476
|
Anti skid control
476
|
||||
