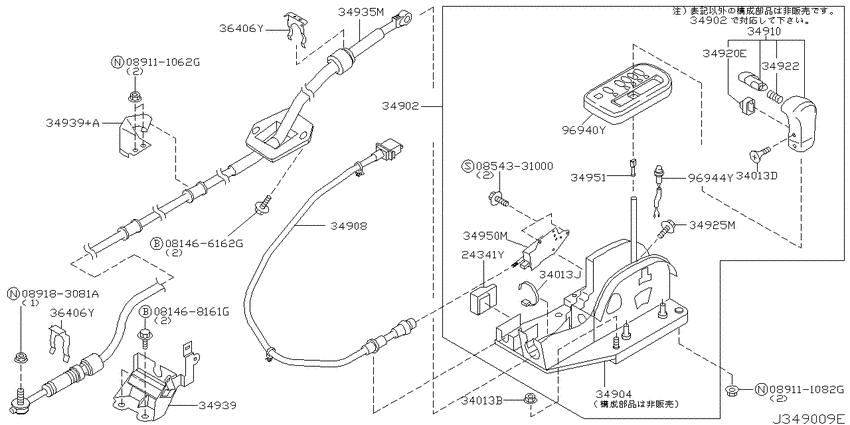

Auto transmission control device (2003-07-01 ~ ; QR20DE.CVT) Diagram Nissan PRIMERA
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20G
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.67 |
||
|
081468161G
|
081468161G
081468161G Bolt-hexagon |
081468161G |
US $3.06 |
||
|
0854331000
|
0854331000
08543-31000
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-31000 |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089183081A
|
089183081A
089183081A NUT FLANGE HEX |
089183081A |
US $0.93 |
||
|
24341Y
|
24341Y
24341-5M515 Housing-Connector0307--01 ~ ; QR20DE.CVT |
24341-5M515 |
US $3.46 |
||
|
34013B
|
34013B
0122500371 NUT0307--01 ~ ; QR20DE.CVT |
0122500371 |
US $1.73 |
||
|
34013D
|
34013D
0141300051 SCREW0307--01 ~ ; QR20DE.CVT |
0141300051 |
from US $0.37 |
||
|
34013J
|
34013J
2421633G00 Band-Harness, Transfer Switch0307--01 ~ ; QR20DE.CVT |
2421633G00 |
from US $2.09 |
||
|
34902
|
34902
34901-AW701 Device Assy-Transmission Control0307--01 ~ 0401--01; QR20DE.CVT; (Z) |
34901-AW701 |
US $720.74 |
||
|
34902
|
34902
34901-AW702 Device Assy-Transmission Control0307--01 ~ 0401--01; QR20DE.CVT; (V) |
34901-AW702 |
US $720.74 |
||
|
34902
|
34902
34901-AW706 Device Assy-Transmission Control0401--01 ~ ; QR20DE.CVT; (Z) |
34901-AW706 |
US $720.74 |
||
|
34902
|
34902
34901AW707 Device Assy-Transmission Control0401--01 ~ ; QR20DE.CVT; (V) |
34901AW707 |
US $720.74 |
||
|
34902
|
34902
34901-AW711 Device Assy-Transmission Control0307--01 ~ 0401--01; *QR20DE.CVT; (Z) |
34901-AW711 |
US $808.54 |
||
|
34902
|
34902
34901-AW712 Device Assy-Transmission Control0307--01 ~ 0401--01; *QR20DE.CVT; (V) |
34901-AW712 |
US $808.54 |
||
|
34902
|
34902
34901-AW716 Device Assy-Transmission Control0401--01 ~ ; *QR20DE.CVT; (Z) |
34901-AW716 |
US $808.54 |
||
|
34902
|
34902
34901-AW717 Device Assy-Transmission Control0401--01 ~ ; *QR20DE.CVT; (V) |
34901-AW717 |
US $808.54 |
||
|
34902
|
34902
34901-AW701 Device Assy-Transmission Control0307--01 ~ 0401--01; QR20DE.CVT; (Z) |
34901-AW701 |
US $720.74 |
||
|
34902
|
34902
34901-AW702 Device Assy-Transmission Control0307--01 ~ 0401--01; QR20DE.CVT; (V) |
34901-AW702 |
US $720.74 |
||
|
34902
|
34902
34901-AW706 Device Assy-Transmission Control0401--01 ~ ; QR20DE.CVT; (Z) |
34901-AW706 |
US $720.74 |
||
|
34902
|
34902
34901AW707 Device Assy-Transmission Control0401--01 ~ ; QR20DE.CVT; (V) |
34901AW707 |
US $720.74 |
||
|
34902
|
34902
34901-AW711 Device Assy-Transmission Control0307--01 ~ 0401--01; *QR20DE.CVT; (Z) |
34901-AW711 |
US $808.54 |
||
|
34902
|
34902
34901-AW712 Device Assy-Transmission Control0307--01 ~ 0401--01; *QR20DE.CVT; (V) |
34901-AW712 |
US $808.54 |
||
|
34902
|
34902
34901-AW716 Device Assy-Transmission Control0401--01 ~ ; *QR20DE.CVT; (Z) |
34901-AW716 |
US $808.54 |
||
|
34902
|
34902
34901-AW717 Device Assy-Transmission Control0401--01 ~ ; *QR20DE.CVT; (V) |
34901-AW717 |
US $808.54 |
||
|
34904
|
34904
34904-AW702 Bracket Compl-Control Lever0307--01 ~ ; QR20DE.CVT |
34904-AW702 |
US $460.20 |
||
|
34908
|
34908
34908-AV300 Cable Assy-Key Inter Lock0307--01 ~ ; QR20DE.CVT |
34908-AV300 |
US $67.10 |
||
|
34910
|
34910
34910-AW702 Knob Assy-Control Lever, Auto0307--01 ~ ; QR20DE.CVT; (V) |
34910-AW702 |
US $92.30 |
||
|
34910
|
34910
34910-AW711 Knob Assy-Control Lever, Auto0307--01 ~ ; *QR20DE.CVT; (Z) |
34910-AW711 |
US $218.88 |
||
|
34910
|
34910
34910-AW712 Knob Assy-Control Lever, Auto0307--01 ~ ; *QR20DE.CVT; (V) |
34910-AW712 |
US $218.88 |
||
|
34920E
|
34920E
25130-3J500 Switch Assy-Over Drive0307--01 ~ ; QR20DE.CVT; (V) |
25130-3J500 |
US $25.78 |
||
|
34920E
|
34920E
25130-AW701 Switch Assy-Over Drive0307--01 ~ ; QR20DE.CVT; (Z) |
25130-AW701 |
US $25.78 |
||
|
34922
|
34922
3492201P00 Spring-Return, Button0307--01 ~ ; QR20DE.CVT |
3492201P00 |
from US $1.81 |
||
|
34925M
|
34925M
34925-64J00 Screw0307--01 ~ ; QR20DE.CVT |
34925-64J00 |
US $2.45 |
||
| replacement | |||||
|
34925M
|
34925M
34925-EB30A Screw0307--01 ~ ; QR20DE.CVT |
34925-EB30A |
US $1.73 |
||
|
34935M
|
34935M
34935-AV300 Cable Assy-Control0307--01 ~ ; QR20DE.CVT |
34935-AV300 |
US $103.97 |
||
|
34939
|
34939
34939-4M510 Bracket-Cable Mounting0307--01 ~ ; QR20DE.CVT |
34939-4M510 |
US $18.43 |
||
|
34939
|
34939
34939-5M800 Bracket-Cable Mounting0307--01 ~ ; QR20DE.CVT |
34939-5M800 |
US $22.61 |
||
|
34939+A
|
34939+A
34939-5M800 Bracket-Cable Mounting0307--01 ~ ; QR20DE.CVT |
34939-5M800 |
US $22.61 |
||
|
34950M
|
34950M
34950AW702 Shift Lock Solenoid & Park Switch Assy0307--01 ~ ; QR20DE.CVT |
34950AW702 |
US $167.04 |
||
|
34951
|
34951
34951-3J400 Adaptor-Compression Rod0307--01 ~ ; QR20DE.CVT |
34951-3J400 |
US $31.97 |
||
|
36406Y
|
36406Y
36406-4M400 Plate-Lock0307--01 ~ ; QR20DE.CVT |
36406-4M400 |
US $3.46 |
||
| replacement | |||||
|
36406Y
|
36406Y
364064M40A Plate-Lock0307--01 ~ ; QR20DE.CVT |
364064M40A |
from US $2.66 |
||
|
36406Y
|
36406Y
36406-4M400 Plate-Lock0307--01 ~ ; QR20DE.CVT |
36406-4M400 |
US $3.46 |
||
| replacement | |||||
|
36406Y
|
36406Y
364064M40A Plate-Lock0307--01 ~ ; QR20DE.CVT |
364064M40A |
from US $2.66 |
||
|
96940Y
|
96940Y
96940-AW702 Indicator Assy-Auto Transmission Control0307--01 ~ ; QR20DE.CVT |
96940-AW702 |
US $155.52 |
||
|
96944Y
|
96944Y
96942AW702 Bulb-Indicator0307--01 ~ ; QR20DE.CVT |
96942AW702 |
US $12.53 |
||
