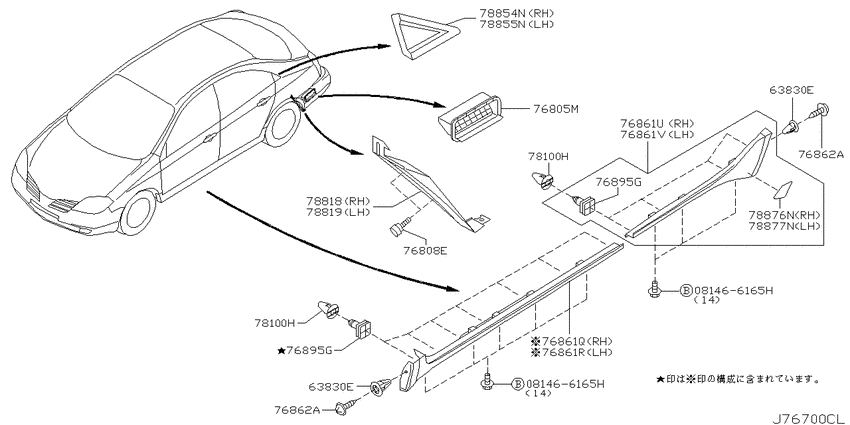

Body side fitting (2003-07-01 ~ ; ﾏｯﾄﾞｶﾞｰﾄﾞ&ﾌｨｯﾃｨﾝｸﾞ; S) Diagram Nissan PRIMERA
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20G
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466165H
|
081466165H
081466165H Bolt-hexagon |
081466165H |
from US $0.63 |
||
|
081466165H
|
081466165H
081466165H Bolt-hexagon |
081466165H |
from US $0.63 |
||
|
63830E
|
63830E
0128100831 GROMMET-SCREW0307--01 ~ ; S |
0128100831 |
from US $0.89 |
||
|
63830E
|
63830E
0128100831 GROMMET-SCREW0307--01 ~ ; S |
0128100831 |
from US $0.89 |
||
|
76805M
|
76805M
768054M400
Duct-Drafter, Outlet Lh
0307--01 ~ ; S |
768054M400 |
— | ||
| replacement | |||||
|
76805M
|
76805M
76805-2DR0A DUCTDRAFTER0307--01 ~ ; S |
76805-2DR0A |
from US $31.21 |
||
|
76808E
|
76808E
0155309321 CLIP0307--01 ~ ; S |
0155309321 |
US $0.97 |
||
|
76861Q
|
76861Q
76852-AU008 Mudguard-Center, Front Rh0307--01 ~ ; S |
76852-AU008 |
US $484.47 |
||
|
76861Q
|
76861Q
76852-AU009 Mudguard-Center, Front Rh0307--01 ~ ; S |
76852-AU009 |
US $484.47 |
||
|
76861Q
|
76861Q
76852-AU013 Mudguard-Center, Front Rh0307--01 ~ ; S |
76852-AU013 |
US $484.47 |
||
|
76861Q
|
76861Q
76852-AW714 Mudguard-Center, Front Rh0307--01 ~ ; S |
76852-AW714 |
US $444.10 |
||
|
76861Q
|
76861Q
76852AW715 Mudguard-Center, Front Rh0307--01 ~ ; S |
76852AW715 |
US $444.10 |
||
|
76861R
|
76861R
76853-AU008 Mudguard-Center, Front Lh0307--01 ~ ; S |
76853-AU008 |
US $484.47 |
||
|
76861R
|
76861R
76853-AU009 Mudguard-Center, Front Lh0307--01 ~ ; S |
76853-AU009 |
US $484.47 |
||
|
76861R
|
76861R
76853-AU013 Mudguard-Center, Front Lh0307--01 ~ ; S |
76853-AU013 |
US $484.47 |
||
|
76861R
|
76861R
76853AW714 Mudguard-Center, Front Lh0307--01 ~ ; S |
76853AW714 |
US $444.10 |
||
|
76861R
|
76861R
76853AW715 Mudguard-Center, Front Lh0307--01 ~ ; S |
76853AW715 |
US $444.10 |
||
|
76861U
|
76861U
76856-AU008 Mudguard-Center, Rear Rh0307--01 ~ ; S |
76856-AU008 |
US $322.99 |
||
|
76861U
|
76861U
76856-AU009 Mudguard-Center, Rear Rh0307--01 ~ ; S |
76856-AU009 |
US $322.99 |
||
|
76861U
|
76861U
76856AU013 Mudguard-Center, Rear Rh0307--01 ~ ; S |
76856AU013 |
US $322.99 |
||
|
76861U
|
76861U
76856-AW714 Mudguard-Center, Rear Rh0307--01 ~ ; S |
76856-AW714 |
US $322.99 |
||
|
76861U
|
76861U
76856-AW715 Mudguard-Center, Rear Rh0307--01 ~ ; S |
76856-AW715 |
US $322.99 |
||
|
76861V
|
76861V
76857-AU008 Mudguard-Center, Rear Lh0307--01 ~ ; S |
76857-AU008 |
US $322.99 |
||
|
76861V
|
76861V
76857-AU009 Mudguard-Center, Rear Lh0307--01 ~ ; S |
76857-AU009 |
US $322.99 |
||
|
76861V
|
76861V
76857-AU013 Mudguard-Center, Rear Lh0307--01 ~ ; S |
76857-AU013 |
US $322.99 |
||
|
76861V
|
76861V
76857AW714 Mudguard-Center, Rear Lh0307--01 ~ ; S |
76857AW714 |
US $322.99 |
||
|
76861V
|
76861V
76857-AW715 Mudguard-Center, Rear Lh0307--01 ~ ; S |
76857-AW715 |
US $322.99 |
||
|
76862A
|
76862A
0145100841 SCREW0307--01 ~ ; S |
0145100841 |
from US $0.94 |
||
|
76862A
|
76862A
0145100841 SCREW0307--01 ~ ; S |
0145100841 |
from US $0.94 |
||
|
76895G
|
76895G
768826P010 Clip0307--01 ~ ; S |
768826P010 |
US $1.93 |
||
|
76895G
|
76895G
768826P010 Clip0307--01 ~ ; S |
768826P010 |
US $1.93 |
||
|
78100H
|
78100H
76848-6P010
Grommet
0307--01 ~ ; S |
76848-6P010 |
— | ||
| replacement | |||||
|
78100H
|
78100H
768486P020 Grommet0307--01 ~ ; S |
768486P020 |
US $4.30 |
||
|
78100H
|
78100H
76848-6P010
Grommet
0307--01 ~ ; S |
76848-6P010 |
— | ||
| replacement | |||||
|
78100H
|
78100H
768486P020 Grommet0307--01 ~ ; S |
768486P020 |
US $4.30 |
||
|
78818
|
78818
78818-AU000 Closing-Rear Bumper, Rh0307--01 ~ ; S |
78818-AU000 |
US $16.70 |
||
|
78819
|
78819
78819-AU000 Closing-Rear Bumper, Lh0307--01 ~ ; S |
78819-AU000 |
US $16.70 |
||
|
78854N
|
78854N
78126-AU000 Cover-Rear Fender, Rh0307--01 ~ ; S |
78126-AU000 |
US $34.13 |
||
|
78855N
|
78855N
78127AU000 Cover-Rear Fender, Lh0307--01 ~ ; S |
78127AU000 |
US $34.13 |
||
|
78876N
|
78876N
78876AU000 Protector-Rear Side, Rh0307--01 ~ ; S |
78876AU000 |
US $14.40 |
||
|
78877N
|
78877N
78877AU000 Protector-Rear Side, Lh0307--01 ~ ; S |
78877AU000 |
US $14.40 |
||
