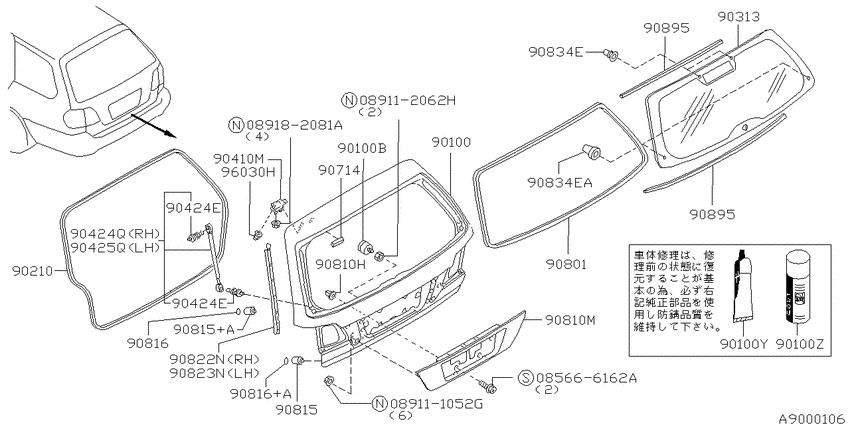

Back door panel & fitting (1997-09-01 ~ 1998-09-01; W) Diagram Nissan PRIMERA
- Year
- 1997 - 1998
- Sales region
- Japan
- Engine
- SR18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
085666162A
|
085666162A
085666162A SCREWTAPPING |
085666162A |
US $2.21 |
||
|
089111052G
|
089111052G
089111052G Nut |
089111052G |
from US $0.52 |
||
|
089112062H
|
089112062H
089112062H NUT |
089112062H |
US $2.08 |
||
|
089182081A
|
089182081A
089182081A NUTHEX |
089182081A |
from US $0.57 |
||
|
90100
|
90100
90100-4J530 Door-Back9709--01 ~ 9809--01; W.(SR18DE+SR20DE) |
90100-4J530 |
US $960.05 |
||
|
90100
|
90100
908704J500 Bumper Rubber-Tail Gate9709--01 ~ 9809--01; W |
908704J500 |
US $21.17 |
||
|
90100
|
90100
KA360-16570
Paint Sealer
9709--01 ~ 9809--01; W; [K504] |
KA360-16570 |
— | ||
|
90100
|
90100
KA390-18090
Metal Keep Wax
9709--01 ~ 9809--01; W; [K504] |
KA390-18090 |
— | ||
|
90100B
|
90100B
908704J500 Bumper Rubber-Tail Gate9709--01 ~ 9809--01; W |
908704J500 |
US $21.17 |
||
|
90100Y
|
90100Y
KA360-16570
Paint Sealer
9709--01 ~ 9809--01; W; [K504] |
KA360-16570 |
— | ||
|
90100Z
|
90100Z
KA390-18090
Metal Keep Wax
9709--01 ~ 9809--01; W; [K504] |
KA390-18090 |
— | ||
|
90210
|
90210
90830-4J500 Weatherstrip-Back Door9709--01 ~ 9809--01; W |
90830-4J500 |
US $190.08 |
||
|
90313
|
90313
90300-4J510 Glass-Back Door Window9709--01 ~ 9809--01; W; [D608] |
90300-4J510 |
US $699.50 |
||
|
90313
|
90313
90300-4J520 Glass-Back Door Window9709--01 ~ 9809--01; *W; ﾌﾟﾗｲﾊﾞｼｰｶﾞﾗｽｼﾖｳ[D608] |
90300-4J520 |
US $896.33 |
||
|
90410M
|
90410M
90400-4J500 Hinge Assy-Back Door9709--01 ~ 9711--01; W; RH & LH |
90400-4J500 |
US $41.76 |
||
|
90410M
|
90410M
90400-4J505 Hinge Assy-Back Door9711--01 ~ 9805--01; W; RH & LH |
90400-4J505 |
US $41.76 |
||
|
90410M
|
90410M
904004J510 Hinge Assy-Back Door9805--01 ~ 9809--01; W; RH & LH |
904004J510 |
US $41.76 |
||
|
90424E
|
90424E
90456-4J500 Stud-Ball, Back Door Stay9709--01 ~ 9809--01; W |
90456-4J500 |
US $10.94 |
||
|
90424E
|
90424E
90456-4J500 Stud-Ball, Back Door Stay9709--01 ~ 9809--01; W |
90456-4J500 |
US $10.94 |
||
|
90424Q
|
90424Q
90452-4J525 Stay Assy-Back Door, Rh9709--01 ~ 9809--01; W |
90452-4J525 |
US $208.80 |
||
|
90425Q
|
90425Q
90453-4J525 Stay Assy-Back Door, Lh9709--01 ~ 9809--01; W |
90453-4J525 |
US $208.80 |
||
|
90714
|
90714
9035651C00 Spacer-Glass A9709--01 ~ 9809--01; W; [D209] |
9035651C00 |
US $1.73 |
||
|
90801
|
90801
903524J500 Moulding-Back Door9709--01 ~ 9809--01; W |
903524J500 |
US $63.07 |
||
|
90810H
|
90810H
01281-00601
GROMMET-SCREW
9709--01 ~ 9809--01; W |
01281-00601 |
— | ||
| replacement | |||||
|
90810H
|
90810H
0128101231 GROMMET-SCREW9709--01 ~ 9809--01; W |
0128101231 |
US $4.16 |
||
|
90810M
|
90810M
908104J504 Finisher Assy-Back Door9709--01 ~ 9809--01; W |
908104J504 |
US $253.44 |
||
|
90810M
|
90810M
90810-4J505 Finisher Assy-Back Door9709--01 ~ 9809--01; W |
90810-4J505 |
US $253.44 |
||
|
90810M
|
90810M
908104J515 Finisher Assy-Back Door9709--01 ~ 9809--01; W |
908104J515 |
US $253.44 |
||
|
90810M
|
90810M
90810-4J517 Finisher Assy-Back Door9709--01 ~ 9809--01; W |
90810-4J517 |
US $253.44 |
||
|
90810M
|
90810M
90810-4J519 Finisher Assy-Back Door9709--01 ~ 9809--01; W |
90810-4J519 |
US $253.44 |
||
|
90810M
|
90810M
90810-4J560 Finisher Assy-Back Door9709--01 ~ 9809--01; W |
90810-4J560 |
US $253.44 |
||
|
90815
|
90815
90878-4J500 Bumper Rubber9709--01 ~ 9809--01; W |
90878-4J500 |
US $7.63 |
||
|
90815
|
90815
90878-4J510 Bumper Rubber9709--01 ~ 9809--01; W |
90878-4J510 |
US $7.63 |
||
|
90815+A
|
90815+A
90878-4J510 Bumper Rubber9709--01 ~ 9809--01; W |
90878-4J510 |
US $7.63 |
||
|
90816
|
90816
6089550M00 PROTECTORTRUNK9709--01 ~ 9809--01; W |
6089550M00 |
US $0.97 |
||
|
90816
|
90816
608954J500 Spacer9709--01 ~ 9809--01; W |
608954J500 |
US $13.86 |
||
|
90816+A
|
90816+A
608954J500 Spacer9709--01 ~ 9809--01; W |
608954J500 |
US $13.86 |
||
|
90822N
|
90822N
90822-4J500 Seal-Back Door, Side Rh9709--01 ~ 9809--01; W |
90822-4J500 |
US $15.98 |
||
|
90823N
|
90823N
90823-4J500 Seal-Back Door, Side Lh9709--01 ~ 9809--01; W |
90823-4J500 |
US $15.98 |
||
|
90834E
|
90834E
90358-4J500 Clip9709--01 ~ 9809--01; W |
90358-4J500 |
US $2.88 |
||
|
90834E
|
90834E
903594J500 Clip9709--01 ~ 9809--01; W |
903594J500 |
US $2.16 |
||
|
90834EA
|
90834EA
903594J500 Clip9709--01 ~ 9809--01; W |
903594J500 |
US $2.16 |
||
|
90895
|
90895
G271689900
Dam Rubber-Sealant
9709--01 ~ 9809--01; W; 5000X6.0T[D608] |
G271689900 |
— | ||
| replacement | |||||
|
90895
|
90895
G2G16-89900 RUBBER-DUM9709--01 ~ 9809--01; W; 5000X6.0T[D608] |
G2G16-89900 |
from US $18.64 |
||
|
90895
|
90895
G271689900
Dam Rubber-Sealant
9709--01 ~ 9809--01; W; 5000X6.0T[D608] |
G271689900 |
— | ||
| replacement | |||||
|
90895
|
90895
G2G16-89900 RUBBER-DUM9709--01 ~ 9809--01; W; 5000X6.0T[D608] |
G2G16-89900 |
from US $18.64 |
||
|
96030H
|
96030H
01217-00281 NUT9709--01 ~ 9809--01; W |
01217-00281 |
US $1.01 |
||
