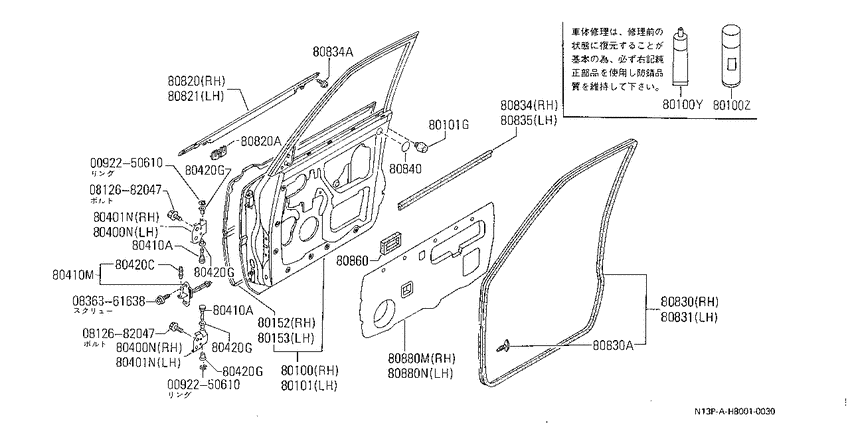

Front door panel (1986-10-01 ~ ; ALL) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- GA15E
- drive
- 2WD
- transmission
- AT
- grade
- SF
- body
- 3HB
- other
- N#
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250610
|
0092250610
0092250610 CLIP |
0092250610 |
from US $0.61 |
||
|
0092250610
|
0092250610
0092250610 CLIP |
0092250610 |
from US $0.61 |
||
|
0812682047
|
0812682047
08126-82047 Bolt-hexagon |
08126-82047 |
US $2.45 |
||
|
0812682047
|
0812682047
08126-82047 Bolt-hexagon |
08126-82047 |
US $2.45 |
||
|
0836361638
|
0836361638
08363-61638
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61638 |
— | ||
| replacement | |||||
|
0836361638
|
0836361638
083636161G Bolt |
083636161G |
US $2.36 |
||
|
80100
|
80100
80100-64M30 Door-Front, Rh8610--01 ~ ; 3HB |
80100-64M30 |
US $1,159.70 |
||
|
80100
|
80100
KA360-16570
Paint Sealer
8610--01 ~ ; ALL; [K504] |
KA360-16570 |
— | ||
|
80100
|
80100
KA390-18090
Metal Keep Wax
8610--01 ~ ; ALL; [K504] |
KA390-18090 |
— | ||
|
80100Y
|
80100Y
KA360-16570
Paint Sealer
8610--01 ~ ; ALL; [K504] |
KA360-16570 |
— | ||
|
80100Z
|
80100Z
KA390-18090
Metal Keep Wax
8610--01 ~ ; ALL; [K504] |
KA390-18090 |
— | ||
|
80101
|
80101
80101-64M30 Door-Front, Lh8610--01 ~ ; 3HB |
80101-64M30 |
US $1,159.70 |
||
|
80101
|
80101
80872W1011 Bumper Rubber-Door8610--01 ~ ; 3HB |
80872W1011 |
from US $3.32 |
||
|
80101G
|
80101G
80872W1011 Bumper Rubber-Door8610--01 ~ ; 3HB |
80872W1011 |
from US $3.32 |
||
|
80152
|
80152
80152-57M30 Panel-Front Door, Outer Rh8610--01 ~ ; 3HB |
80152-57M30 |
US $419.14 |
||
|
80153
|
80153
80153-57M30 Panel-Front Door, Outer Lh8610--01 ~ ; 3HB |
80153-57M30 |
US $419.14 |
||
|
80400N
|
80400N
8040250M00 Hinge Assy-Front Door, Upper & Lower8610--01 ~ ; ALL; ｱﾂﾊﾟ- ﾋﾀﾞﾘ & ﾛｱ ﾐｷﾞ |
8040250M00 |
US $35.71 |
||
|
80400N
|
80400N
8040250M00 Hinge Assy-Front Door, Upper & Lower8610--01 ~ ; ALL; ｱﾂﾊﾟ- ﾋﾀﾞﾘ & ﾛｱ ﾐｷﾞ |
8040250M00 |
US $35.71 |
||
|
80401N
|
80401N
8042250M00 Hinge Assy-Front Door, Upper & Lower8610--01 ~ ; ALL; ｱﾂﾊﾟ- ﾐｷﾞ & ﾛｱ ﾋﾀﾞﾘ |
8042250M00 |
US $35.71 |
||
|
80401N
|
80401N
8042250M00 Hinge Assy-Front Door, Upper & Lower8610--01 ~ ; ALL; ｱﾂﾊﾟ- ﾐｷﾞ & ﾛｱ ﾋﾀﾞﾘ |
8042250M00 |
US $35.71 |
||
|
80410A
|
80410A
80406-50A00
Pin-Spring
8610--01 ~ 8809--01; ALL |
80406-50A00 |
— | ||
|
80410A
|
80410A
8040650M02 Pin-Spring8809--01 ~ ; ALL; |
8040650M02 |
US $6.34 |
||
|
80410A
|
80410A
80406-50A00
Pin-Spring
8610--01 ~ 8809--01; ALL |
80406-50A00 |
— | ||
|
80410A
|
80410A
8040650M02 Pin-Spring8809--01 ~ ; ALL; |
8040650M02 |
US $6.34 |
||
|
80410M
|
80410M
80430-57M00 Link-Door Stopper8610--01 ~ ; 3HB |
80430-57M00 |
US $35.71 |
||
|
80420C
|
80420C
80438-D0101 Pin-Door Stopper8610--01 ~ ; ALL |
80438-D0101 |
US $4.32 |
||
|
80420G
|
80420G
8041001L00 Cap-Front Door Hinge8610--01 ~ ; ALL |
8041001L00 |
from US $3.48 |
||
|
80420G
|
80420G
8041001L00 Cap-Front Door Hinge8610--01 ~ ; ALL |
8041001L00 |
from US $3.48 |
||
|
80420G
|
80420G
8041001L00 Cap-Front Door Hinge8610--01 ~ ; ALL |
8041001L00 |
from US $3.48 |
||
|
80420G
|
80420G
8041001L00 Cap-Front Door Hinge8610--01 ~ ; ALL |
8041001L00 |
from US $3.48 |
||
|
80820
|
80820
80820-57M00 Moulding Assy-Front Door Outside, Rh8610--01 ~ 8706--01; 3HB; ﾌﾞﾗﾂｸ |
80820-57M00 |
US $105.55 |
||
|
80820
|
80820
80820-57M01 Moulding Assy-Front Door Outside, Rh8706--01 ~ ; 3HB; ﾌﾞﾗﾂｸ |
80820-57M01 |
US $105.55 |
||
|
80820
|
80820
80866-D4000 Clip8610--01 ~ ; ALL |
80866-D4000 |
US $0.86 |
||
|
80820A
|
80820A
80866-D4000 Clip8610--01 ~ ; ALL |
80866-D4000 |
US $0.86 |
||
|
80821
|
80821
80821-57M00 Moulding Assy-Front Door Outside, Lh8610--01 ~ 8706--01; 3HB; ﾌﾞﾗﾂｸ |
80821-57M00 |
US $105.55 |
||
|
80821
|
80821
80821-57M01 Moulding Assy-Front Door Outside, Lh8706--01 ~ ; 3HB; ﾌﾞﾗﾂｸ |
80821-57M01 |
US $105.55 |
||
|
80830
|
80830
80830-57M00 Weatherstrip-Front Door, Rh8610--01 ~ 8811--01; 3HB |
80830-57M00 |
US $95.47 |
||
|
80830
|
80830
80830-57M10 Weatherstrip-Front Door, Rh8811--01 ~ ; 3HB |
80830-57M10 |
US $95.47 |
||
|
80830
|
80830
80832-S5000
Clip-Weatherstrip
8610--01 ~ ; ALL; ﾐｷﾞ |
80832-S5000 |
— | ||
| replacement | |||||
|
80830
|
80830
01553-06821 CLIP-WEATHERSTRIP8610--01 ~ ; ALL; ﾐｷﾞ |
01553-06821 |
US $1.11 |
||
|
80830
|
80830
80833-S5000
Clip-Weatherstrip
8610--01 ~ ; ALL; ﾋﾀﾞﾘ |
80833-S5000 |
— | ||
|
80830A
|
80830A
80832-S5000
Clip-Weatherstrip
8610--01 ~ ; ALL; ﾐｷﾞ |
80832-S5000 |
— | ||
| replacement | |||||
|
80830A
|
80830A
01553-06821 CLIP-WEATHERSTRIP8610--01 ~ ; ALL; ﾐｷﾞ |
01553-06821 |
US $1.11 |
||
|
80830A
|
80830A
80833-S5000
Clip-Weatherstrip
8610--01 ~ ; ALL; ﾋﾀﾞﾘ |
80833-S5000 |
— | ||
|
80831
|
80831
80831-57M00 Weatherstrip-Front Door, Lh8610--01 ~ 8811--01; 3HB |
80831-57M00 |
US $95.47 |
||
|
80831
|
80831
80831-57M10 Weatherstrip-Front Door, Lh8811--01 ~ ; 3HB |
80831-57M10 |
US $95.47 |
||
|
80834
|
80834
80834-57M10 Weatherstrip-Front Door Inside, Rh8610--01 ~ ; 3HB |
80834-57M10 |
US $44.93 |
||
|
80835
|
80835
80835-57M10 Weatherstrip-Front Door Inside, Lh8610--01 ~ ; 3HB |
80835-57M10 |
US $44.93 |
||
|
80840
|
80840
80854Q0100 Plug8610--01 ~ ; ALL |
80854Q0100 |
from US $0.97 |
||
|
80860
|
80860
80886-01M00 Sealing Rubber-Door Side8610--01 ~ ; ALL |
80886-01M00 |
US $5.90 |
||
| replacement | |||||
|
80860
|
80860
82886-V5800 ｼ-ﾙﾄﾞ,ｲﾝｻｲﾄﾞ ﾊﾝﾄﾞﾙ8610--01 ~ ; ALL |
82886-V5800 |
US $5.90 |
||
|
80880M
|
80880M
80860-57M05 Screen-Sealing, Front Rh8610--01 ~ ; &P#.3HB.(X+GT#) N#.3HB.(SF#+SSS.T); ﾊﾟﾜ-ｳｲﾝﾄﾞ ﾖｳ |
80860-57M05 |
US $15.55 |
||
|
80880M
|
80880M
80860-57M10 Screen-Sealing, Front Rh8610--01 ~ ; '*P#.3HB.(X+GT#) *N#.3HB.(SF#+SSS.T); ﾊﾟﾜ-ｳｲﾝﾄﾞ&ｽﾋﾟ-ｶ- ﾖｳ |
80860-57M10 |
US $15.55 |
||
|
80880N
|
80880N
80861-57M05 Screen-Sealing, Front Lh8610--01 ~ ; &P#.3HB.(X+GT#) N#.3HB.(SF#+SSS.T); ﾊﾟﾜ-ｳｲﾝﾄﾞ ﾖｳ |
80861-57M05 |
US $15.41 |
||
|
80880N
|
80880N
80861-57M10 Screen-Sealing, Front Lh8610--01 ~ ; '*P#.3HB.(X+GT#) *N#.3HB.(SF#+SSS.T); ﾊﾟﾜ-ｳｲﾝﾄﾞ&ｽﾋﾟ-ｶ- ﾖｳ |
80861-57M10 |
US $15.41 |
||
