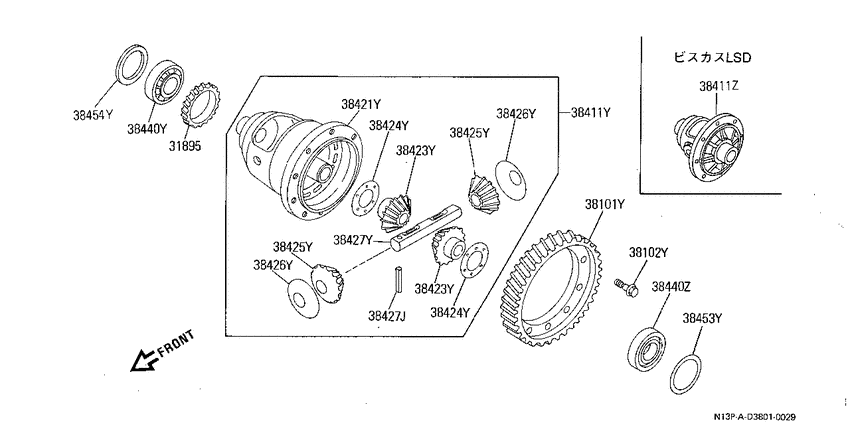

Front final drive (1988-09-01 ~ 1989-05-01; (GA15E+GA15S+CA16D).AT.F4) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- GA15E
- drive
- 2WD
- transmission
- AT
- grade
- SF
- body
- 3HB
- other
- N#
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31895
|
31895
31895-21X04 Gear-Drive, Governor8809--01 ~ ; RL4F02A; |
31895-21X04 |
US $17.71 |
||
|
38101Y
|
38101Y
38101-21X61 Gear-Final Drive8809--01 ~ 8905--01; GA15E.AT |
38101-21X61 |
US $165.60 |
||
|
38101Y
|
38101Y
38101-31X01 Gear-Final Drive8905--01 ~ ; GA15E.AT.F4 RL4F03A |
38101-31X01 |
US $138.96 |
||
|
38102Y
|
38102Y
38102-M8001 Bolt-Drive Gear8905--01 ~ ; (GA15E+GA15S).AT.F4 |
38102-M8001 |
US $2.45 |
||
|
38102Y
|
38102Y
38102N3100 Bolt-Drive Gear8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; |
38102N3100 |
US $4.16 |
||
|
38411Y
|
38411Y
38411-21X08 Case Compl-Differential8809--01 ~ 8905--01; (GA15E+GA15S).AT.F4 |
38411-21X08 |
US $774.55 |
||
|
38411Y
|
38411Y
38411-31X00 Case Compl-Differential8905--01 ~ ; (GA15E+GA15S).AT.F4 |
38411-31X00 |
US $927.48 |
||
|
38421Y
|
38421Y
38421-21X05 Case-Differential8809--01 ~ 8905--01; (GA15E+GA15S).AT.F4 |
38421-21X05 |
US $580.56 |
||
|
38421Y
|
38421Y
38421-31X00 Case-Differential8905--01 ~ ; (GA15E+GA15S).AT.F4 |
38421-31X00 |
US $460.20 |
||
|
38423Y
|
38423Y
38423-03E00 GEAR-SIDE8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; |
38423-03E00 |
US $41.76 |
||
|
38423Y
|
38423Y
3842331X00 Gear-Side8905--01 ~ ; (GA15E+GA15S).AT.F4 |
3842331X00 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-03E00 GEAR-SIDE8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; |
38423-03E00 |
US $41.76 |
||
|
38423Y
|
38423Y
3842331X00 Gear-Side8905--01 ~ ; (GA15E+GA15S).AT.F4 |
3842331X00 |
US $100.80 |
||
|
38424Y
|
38424Y
38424-31X00 Washer-Thrust, Side Gear8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.75-0.80 |
38424-31X00 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X01 Washer-Thrust, Side Gear8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.80-0.85 |
38424-31X01 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X02 Washer-Thrust, Side Gear8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.85-0.90 |
38424-31X02 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X03 Washer-Thrust, Side Gear8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.90-0.95 |
38424-31X03 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X04 Washer-Thrust, Side Gear8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.95-1.00 |
38424-31X04 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-E3000 Washer-Thrust, Side Gear8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.75-0.80 |
38424-E3000 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3001 Washer-Thrust, Side Gear8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.80-0.85 |
38424-E3001 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3002 Washer-Thrust, Side Gear8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.85-0.90 |
38424-E3002 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3003 Washer-Thrust, Side Gear8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.90-0.95 |
38424-E3003 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-31X00 Washer-Thrust, Side Gear8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.75-0.80 |
38424-31X00 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X01 Washer-Thrust, Side Gear8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.80-0.85 |
38424-31X01 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X02 Washer-Thrust, Side Gear8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.85-0.90 |
38424-31X02 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X03 Washer-Thrust, Side Gear8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.90-0.95 |
38424-31X03 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X04 Washer-Thrust, Side Gear8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.95-1.00 |
38424-31X04 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-E3000 Washer-Thrust, Side Gear8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.75-0.80 |
38424-E3000 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3001 Washer-Thrust, Side Gear8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.80-0.85 |
38424-E3001 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3002 Washer-Thrust, Side Gear8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.85-0.90 |
38424-E3002 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3003 Washer-Thrust, Side Gear8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.90-0.95 |
38424-E3003 |
US $4.03 |
||
|
38425Y
|
38425Y
38425-01M01 Pinion-Mate8905--01 ~ ; (GA15E+GA15S).AT.F4 |
38425-01M01 |
US $40.90 |
||
|
38425Y
|
38425Y
38425-B4000 Pinion-Mate8809--01 ~ 8905--01; (GA15E+GA15S).AT.F4 |
38425-B4000 |
US $41.47 |
||
|
38425Y
|
38425Y
38425-01M01 Pinion-Mate8905--01 ~ ; (GA15E+GA15S).AT.F4 |
38425-01M01 |
US $40.90 |
||
|
38425Y
|
38425Y
38425-B4000 Pinion-Mate8809--01 ~ 8905--01; (GA15E+GA15S).AT.F4 |
38425-B4000 |
US $41.47 |
||
|
38426Y
|
38426Y
38426-01M01
Washer-Thrust, Pinion Mate
8905--01 ~ ; (GA15E+GA15S).AT.F4 |
38426-01M01 |
— | ||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4 |
38426-03E00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-01M01
Washer-Thrust, Pinion Mate
8905--01 ~ ; (GA15E+GA15S).AT.F4 |
38426-01M01 |
— | ||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4 |
38426-03E00 |
US $4.18 |
||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4 |
38428-P0100 |
from US $0.86 |
||
|
38427Y
|
38427Y
38427-21X01 Shaft-Pinion Mate8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4 |
38427-21X01 |
US $100.37 |
||
|
38427Y
|
38427Y
38427-31X00 Shaft-Pinion Mate8905--01 ~ ; (GA15E+GA15S).AT.F4 |
38427-31X00 |
US $75.74 |
||
|
38440Y
|
38440Y
31409-31X00 Bearing-Differential Side8905--01 ~ ; (GA15E+GA15S).AT.F4 |
31409-31X00 |
US $55.58 |
||
|
38440Y
|
38440Y
4021085000 BEARING-INNER,REAR AXLE8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; |
4021085000 |
from US $28.55 |
||
|
38440Z
|
38440Z
38440-21X00 Bearing-Differential Side8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; |
38440-21X00 |
US $88.42 |
||
|
38453Y
|
38453Y
38453-21X00 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.44 |
38453-21X00 |
US $7.92 |
||
|
38453Y
|
38453Y
38453-21X01 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.48 |
38453-21X01 |
US $7.92 |
||
|
38453Y
|
38453Y
38453-21X02 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.52 |
38453-21X02 |
US $7.92 |
||
|
38453Y
|
38453Y
38453-21X03 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.56 |
38453-21X03 |
US $7.92 |
||
|
38453Y
|
38453Y
38453-21X04 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.60 |
38453-21X04 |
US $7.92 |
||
|
38453Y
|
38453Y
38453-21X05 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.64 |
38453-21X05 |
US $7.92 |
||
|
38453Y
|
38453Y
38453-21X06 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.68 |
38453-21X06 |
US $7.92 |
||
|
38453Y
|
38453Y
38453-21X07 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.72 |
38453-21X07 |
US $7.92 |
||
|
38453Y
|
38453Y
38453-21X08 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.76 |
38453-21X08 |
US $7.92 |
||
|
38453Y
|
38453Y
38453-21X09 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.80 |
38453-21X09 |
US $7.92 |
||
|
38453Y
|
38453Y
38453-21X10 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.84 |
38453-21X10 |
US $7.92 |
||
|
38453Y
|
38453Y
38453-21X11 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.88 |
38453-21X11 |
US $7.92 |
||
|
38453Y
|
38453Y
38453-21X12 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.92 |
38453-21X12 |
US $7.92 |
||
|
38453Y
|
38453Y
38453-21X13 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.12 |
38453-21X13 |
US $10.37 |
||
|
38453Y
|
38453Y
38453-21X14 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.16 |
38453-21X14 |
US $10.37 |
||
|
38453Y
|
38453Y
38453-21X15 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.20 |
38453-21X15 |
US $10.37 |
||
|
38453Y
|
38453Y
38453-21X16 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.24 |
38453-21X16 |
US $10.37 |
||
|
38453Y
|
38453Y
38453-21X17 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.28 |
38453-21X17 |
US $10.37 |
||
|
38453Y
|
38453Y
38453-21X18 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.32 |
38453-21X18 |
US $10.37 |
||
|
38453Y
|
38453Y
38453-21X19 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.36 |
38453-21X19 |
US $10.37 |
||
|
38453Y
|
38453Y
38453-21X20 Shim-Adjust, Side Bearing8809--01 ~ 8905--01; (GA15E+GA15S+CA16D).AT.F4; ｾﾝﾀｸ T=0.40 |
38453-21X20 |
US $10.37 |
||
|
38453Y
|
38453Y
38454-M8000 Shim-Adjust, Side Bearing8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.44 |
38454-M8000 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8001 Shim-Adjust, Side Bearing8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.48 |
38454-M8001 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8003 Shim-Adjust, Side Bearing8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.56 |
38454-M8003 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8004 Shim-Adjust, Side Bearing8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.60 |
38454-M8004 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8005 Shim-Adjust, Side Bearing8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.64 |
38454-M8005 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8006 Shim-Adjust, Side Bearing8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.68 |
38454-M8006 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8007 Shim-Adjust, Side Bearing8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.72 |
38454-M8007 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8008 Shim-Adjust, Side Bearing8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.76 |
38454-M8008 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8009 Shim-Adjust, Side Bearing8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.80 |
38454-M8009 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8010 Shim-Adjust, Side Bearing8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.84 |
38454-M8010 |
US $6.34 |
||
|
38453Y
|
38453Y
38454-M8011 Shim-Adjust, Side Bearing8905--01 ~ ; (GA15E+GA15S).AT.F4; ｾﾝﾀｸ T=0.88 |
38454-M8011 |
US $6.34 |
