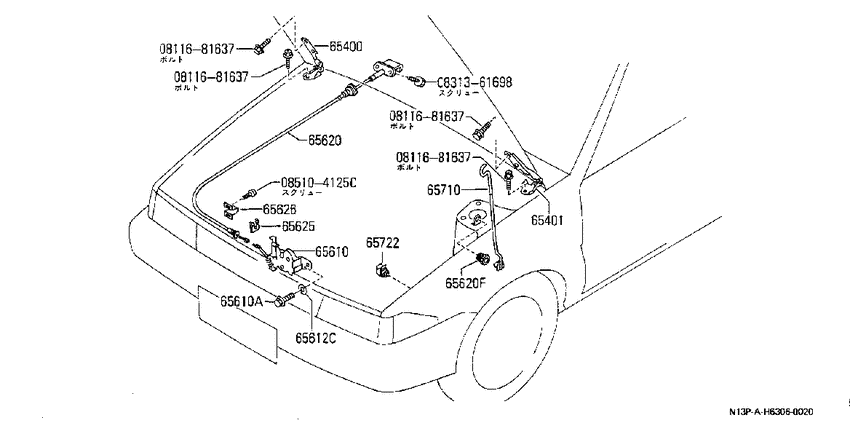

hood hinge & lock (1986-10-01 ~ ; ALL) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- GA15E
- drive
- 2WD
- transmission
- AT
- grade
- SF
- body
- 3HB
- other
- N#
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811681637
|
0811681637
08116-81637
Bolt-hexagon
|
08116-81637 |
— | ||
|
0811681637
|
0811681637
08116-81637
Bolt-hexagon
|
08116-81637 |
— | ||
|
0811681637
|
0811681637
08116-81637
Bolt-hexagon
|
08116-81637 |
— | ||
|
0811681637
|
0811681637
08116-81637
Bolt-hexagon
|
08116-81637 |
— | ||
|
0831361698
|
0831361698
08313-61698
ｽｸﾘﾕ-,ﾏｼﾝ
|
08313-61698 |
— | ||
|
085104125C
|
085104125C
08510-4125C
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08510-4125C |
— | ||
|
65400
|
65400
65400-50M00 Hinge Assy-Hood, Rh8610--01 ~ ; ALL |
65400-50M00 |
US $26.78 |
||
|
65401
|
65401
65401-50M00 Hinge Assy-Hood, Lh8610--01 ~ ; ALL |
65401-50M00 |
US $26.78 |
||
|
65610
|
65610
65601-75M00 Female Assy-Hood Lock8610--01 ~ 8706--01; ALL |
65601-75M00 |
US $56.88 |
||
|
65610
|
65610
65601-75M10 Female Assy-Hood Lock8706--01 ~ ; ALL |
65601-75M10 |
US $56.88 |
||
|
65610
|
65610
01121-01861 BOLT8610--01 ~ 8703--01; ALL |
01121-01861 |
US $2.45 |
||
|
65610
|
65610
01121-03181
BOLT
8703--01 ~ ; ALL |
01121-03181 |
— | ||
| replacement | |||||
|
65610
|
65610
65698EQ30A Bolt8703--01 ~ ; ALL |
65698EQ30A |
US $3.06 |
||
|
65610A
|
65610A
01121-01861 BOLT8610--01 ~ 8703--01; ALL |
01121-01861 |
US $2.45 |
||
|
65610A
|
65610A
01121-03181
BOLT
8703--01 ~ ; ALL |
01121-03181 |
— | ||
| replacement | |||||
|
65610A
|
65610A
65698EQ30A Bolt8703--01 ~ ; ALL |
65698EQ30A |
US $3.06 |
||
|
65612C
|
65612C
01311-00701 WASHER-PLAIN8610--01 ~ 8809--01; ALL |
01311-00701 |
US $2.45 |
||
|
65620
|
65620
65620-50A00 Cable Assy-Hood Lock8610--01 ~ 8703--01; ALL |
65620-50A00 |
US $34.99 |
||
|
65620
|
65620
65620-50A10 Cable Assy-Hood Lock8703--01 ~ ; ALL |
65620-50A10 |
US $28.37 |
||
|
65620
|
65620
65512P7100 Grommet-Hood Support Rod8610--01 ~ ; ALL |
65512P7100 |
from US $1.76 |
||
|
65620F
|
65620F
65512P7100 Grommet-Hood Support Rod8610--01 ~ ; ALL |
65512P7100 |
from US $1.76 |
||
|
65625
|
65625
65625-01E00 CLAMP-CONTROL CABLE8610--01 ~ ; ALL |
65625-01E00 |
US $0.86 |
||
|
65626
|
65626
01552-00033 CLIP-HARNESS8809--01 ~ ; ALL |
01552-00033 |
US $4.85 |
||
|
65710
|
65710
65771-50A00 Rod-Hood Support8610--01 ~ 8705--01; ALL |
65771-50A00 |
US $15.26 |
||
|
65710
|
65710
65771-50A01 Rod-Hood Support8705--01 ~ ; ALL |
65771-50A01 |
US $15.26 |
||
|
65722
|
65722
6572250A00
Clamp-Rod Hood
8610--01 ~ ; ALL |
6572250A00 |
— | ||
| replacement | |||||
|
65722
|
65722
65722-50A0A Clamp-Rod Hood8610--01 ~ ; ALL |
65722-50A0A |
from US $1.33 |
||
