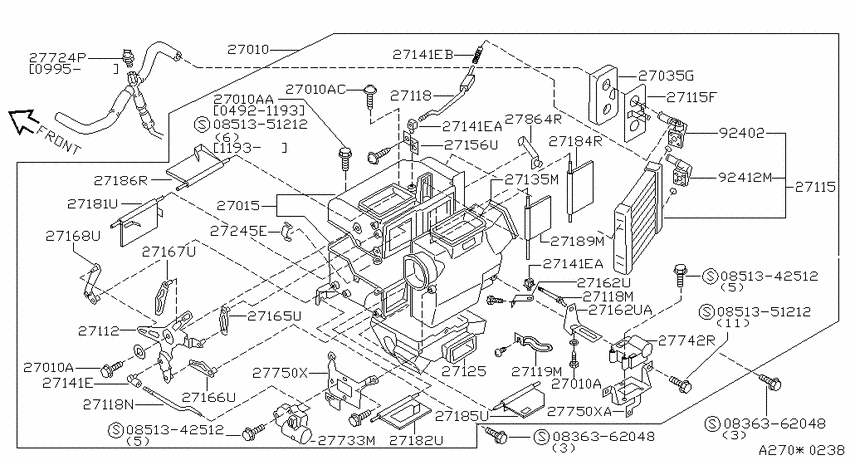

Heater & blower unit (1992-04-01 ~ ; HEATER-FRONT; FED.W +CAL.W) Diagram Nissan QUEST
- Year
- 1992 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- drive
- 2WD
- transmission
- AT
- body
- CAL.W
- trim lvl
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836362048
|
0836362048
08363-62048
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62048 |
— | ||
|
0836362048
|
0836362048
08363-62048
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62048 |
— | ||
|
0851342512
|
0851342512
08513-42512
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-42512 |
— | ||
|
0851342512
|
0851342512
08513-42512
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-42512 |
— | ||
|
0851351212
|
0851351212
08513-51212
SCREW
|
08513-51212 |
— | ||
|
0851351212
|
0851351212
08513-51212
SCREW
|
08513-51212 |
— | ||
|
27010
|
27010
27110-0B000
Heating Unit Assy-Front
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
27110-0B000 |
— | ||
|
27010
|
27010
27110-1B000
Heating Unit Assy-Front
1995-09-01 ~ ; FED.W +CAL.W; , |
27110-1B000 |
— | ||
|
27010
|
27010
27111-0B001
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
27111-0B001 |
— | ||
|
27010
|
27010
23344-0B001
Screw
1992-04-01 ~ 1993-11-01; FED.W +CAL.W; , |
23344-0B001 |
— | ||
|
27010
|
27010
27111-0B002
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
27111-0B002 |
— | ||
|
27010
|
27010
25149-0B003
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
25149-0B003 |
— | ||
|
27010
|
27010
25149-0B001
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
25149-0B001 |
— | ||
|
27010
|
27010
25149-0B002
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
25149-0B002 |
— | ||
|
27010
|
27010
01456-00421 SCREW1997-09-01 ~ ; FED.W +CAL.W; , |
01456-00421 |
from US $0.57 |
||
|
27010
|
27010
14437-0B000
Screw
1995-09-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; , |
14437-0B000 |
— | ||
|
27010
|
27010
14511-0B000
Screw
1995-09-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; , |
14511-0B000 |
— | ||
|
27010A
|
27010A
27111-0B001
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
27111-0B001 |
— | ||
|
27010A
|
27010A
23344-0B001
Screw
1992-04-01 ~ 1993-11-01; FED.W +CAL.W; , |
23344-0B001 |
— | ||
|
27010A
|
27010A
27111-0B002
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
27111-0B002 |
— | ||
|
27010A
|
27010A
27111-0B001
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
27111-0B001 |
— | ||
|
27010A
|
27010A
23344-0B001
Screw
1992-04-01 ~ 1993-11-01; FED.W +CAL.W; , |
23344-0B001 |
— | ||
|
27010A
|
27010A
27111-0B002
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
27111-0B002 |
— | ||
|
27010AA
|
27010AA
23344-0B001
Screw
1992-04-01 ~ 1993-11-01; FED.W +CAL.W; , |
23344-0B001 |
— | ||
|
27010AC
|
27010AC
27111-0B002
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
27111-0B002 |
— | ||
|
27015
|
27015
27120-0B000
Case Assy-Front Heater
1995-09-01 ~ ; FED.W +CAL.W; , |
27120-0B000 |
— | ||
|
27035G
|
27035G
28982-0B001
Grommet-Rubber
1997-09-01 ~ ; FED.W +CAL.W; , |
28982-0B001 |
— | ||
|
27112
|
27112
27155-0B000
Link Assy-Side
1997-09-01 ~ ; FED.W +CAL.W; , |
27155-0B000 |
— | ||
|
27115
|
27115
27140-0B000
Core Assy-Front Heater
1997-09-01 ~ ; FED.W +CAL.W; , |
27140-0B000 |
— | ||
|
27115
|
27115
27148-0B000
Support-Heater Core
1997-09-01 ~ ; FED.W +CAL.W; , |
27148-0B000 |
— | ||
|
27115F
|
27115F
27148-0B000
Support-Heater Core
1997-09-01 ~ ; FED.W +CAL.W; , |
27148-0B000 |
— | ||
|
27118
|
27118
27781-0B002
Rod-Water Cock
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; F/FRONT |
27781-0B002 |
— | ||
|
27118
|
27118
27781-0B001
Rod Assy-Temperature
1997-09-01 ~ ; FED.W +CAL.W; , |
27781-0B001 |
— | ||
|
27118
|
27118
27781-0B000
Rod
1997-09-01 ~ ; FED.W +CAL.W; , |
27781-0B000 |
— | ||
|
27118M
|
27118M
27781-0B001
Rod Assy-Temperature
1997-09-01 ~ ; FED.W +CAL.W; , |
27781-0B001 |
— | ||
|
27118N
|
27118N
27781-0B000
Rod
1997-09-01 ~ ; FED.W +CAL.W; , |
27781-0B000 |
— | ||
|
27119M
|
27119M
27163-0B000
Lever
1997-09-01 ~ ; FED.W +CAL.W; , |
27163-0B000 |
— | ||
|
27125
|
27125
27125-0B000
Duct-Foot
1997-09-01 ~ ; FED.W +CAL.W; , |
27125-0B000 |
— | ||
|
27125
|
27125
27930-0B000
Duct-Foot
1992-04-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; F/RR HEATER & RR COOLER |
27930-0B000 |
— | ||
|
27135M
|
27135M
27135-0B000
Duct Assy-Ventilator
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; F/FRONT |
27135-0B000 |
— | ||
|
27135M
|
27135M
27135-1B000
Duct Assy-Ventilator
1997-09-01 ~ ; FED.W +CAL.W; , |
27135-1B000 |
— | ||
|
27141E
|
27141E
27141-0B002
Holder-Rod
1997-09-01 ~ ; FED.W +CAL.W; , |
27141-0B002 |
— | ||
|
27141E
|
27141E
27142-0B000
Holder-Rod
1995-09-01 ~ ; FED.W +CAL.W; , |
27142-0B000 |
— | ||
|
27141E
|
27141E
27142-0B001
Holder-Rod
1997-09-01 ~ ; FED.W +CAL.W; , |
27142-0B001 |
— | ||
|
27141EA
|
27141EA
27142-0B000
Holder-Rod
1995-09-01 ~ ; FED.W +CAL.W; , |
27142-0B000 |
— | ||
|
27141EA
|
27141EA
27142-0B000
Holder-Rod
1995-09-01 ~ ; FED.W +CAL.W; , |
27142-0B000 |
— | ||
|
27141EB
|
27141EB
27142-0B001
Holder-Rod
1997-09-01 ~ ; FED.W +CAL.W; , |
27142-0B001 |
— | ||
|
27156U
|
27156U
27162-0B002
Lever-Air Mix Door
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; F/FRONT |
27162-0B002 |
— | ||
|
27162U
|
27162U
27162-0B000
Lever-Air Mix Door
1992-04-01 ~ 1997-09-01; FED.W +CAL.W; F/FRONT |
27162-0B000 |
— | ||
|
27162U
|
27162U
27162-0B001
Lever-Air Mix Door
1997-09-01 ~ ; FED.W +CAL.W; , |
27162-0B001 |
— | ||
|
27162UA
|
27162UA
27162-0B001
Lever-Air Mix Door
1997-09-01 ~ ; FED.W +CAL.W; , |
27162-0B001 |
— | ||
|
27165U
|
27165U
27165-0B000
Lever-Ventilator
1997-09-01 ~ ; FED.W +CAL.W; , |
27165-0B000 |
— | ||
|
27166U
|
27166U
27166-0B000
Lever-Ventilation, No2
1997-09-01 ~ ; FED.W +CAL.W; , |
27166-0B000 |
— | ||
|
27167U
|
27167U
27167-0B000
Lever-Defroster
1997-09-01 ~ ; FED.W +CAL.W; , |
27167-0B000 |
— | ||
|
27168U
|
27168U
27168-0B000
Lever-Foot
1997-09-01 ~ ; FED.W +CAL.W; , |
27168-0B000 |
— | ||
|
27181U
|
27181U
27181-0B000
Door Assy-Ventilation
1997-09-01 ~ ; FED.W +CAL.W; , |
27181-0B000 |
— | ||
|
27182U
|
27182U
27182-0B000
Door Assy-Ventilation
1997-09-01 ~ ; FED.W +CAL.W; , |
27182-0B000 |
— | ||
|
27184R
|
27184R
27184-0B000
Door-Mix
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; F/FRONT |
27184-0B000 |
— | ||
|
27184R
|
27184R
27184-1B000
Door-Mix
1995-09-01 ~ 1997-09-01; FED.W +CAL.W; F/FRONT |
27184-1B000 |
— | ||
|
27184R
|
27184R
27184-0B010
Door-Mix
1996-02-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; , |
27184-0B010 |
— | ||
|
27185U
|
27185U
27185-0B000
Door Assy-Foot
1997-09-01 ~ ; FED.W +CAL.W; , |
27185-0B000 |
— | ||
|
27186R
|
27186R
27186-0B000
Door-Mode
1997-09-01 ~ ; FED.W +CAL.W; , |
27186-0B000 |
— | ||
|
27186R
|
27186R
27186-0B010
Door-Mode
1996-02-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; , |
27186-0B010 |
— | ||
|
27189M
|
27189M
27187-0B000
Door Assy-Fresh Ventilation
1997-09-01 ~ ; FED.W +CAL.W; , |
27187-0B000 |
— | ||
|
27245E
|
27245E
27111-0B000
Clip
1997-09-01 ~ ; FED.W +CAL.W; , |
27111-0B000 |
— | ||
|
27733M
|
27733M
27141-0B000
Actuator Assy-Mode
1997-09-01 ~ ; FED.W +CAL.W; , |
27141-0B000 |
— | ||
|
27733M
|
27733M
27141-0B001
Actuator Assy-Mode
1992-04-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; F/RR HEATER & RR COOLER |
27141-0B001 |
— | ||
|
27742R
|
27742R
27742-0B000
Actuator Assy-Air Mix
1997-09-01 ~ ; FED.W +CAL.W; , |
27742-0B000 |
— | ||
|
27742R
|
27742R
27742-0B001
Actuator Assy-Air Mix
1992-04-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; F/RR HEATER & RR COOLER |
27742-0B001 |
— | ||
|
27750X
|
27750X
27750-0B000
Bracket-Actuator
1997-09-01 ~ ; FED.W +CAL.W; , |
27750-0B000 |
— | ||
|
27750X
|
27750X
27752-0B000
Bracket-Actuator
1997-09-01 ~ ; FED.W +CAL.W; , |
27752-0B000 |
— | ||
|
27750XA
|
27750XA
27752-0B000
Bracket-Actuator
1997-09-01 ~ ; FED.W +CAL.W; , |
27752-0B000 |
— | ||
|
27864R
|
27864R
27175-0B000
Bracket
1997-09-01 ~ ; FED.W +CAL.W; , |
27175-0B000 |
— | ||
|
27864R
|
27864R
27422-0B000
Bracket
1995-09-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; , |
27422-0B000 |
— | ||
|
92402
|
92402
27145-0B000
Tube-water,inlet
1997-09-01 ~ ; FED.W +CAL.W; , |
27145-0B000 |
— | ||
|
92412M
|
92412M
27146-0B000
Tube-water,outlet
1997-09-01 ~ ; FED.W +CAL.W; , |
27146-0B000 |
— |
