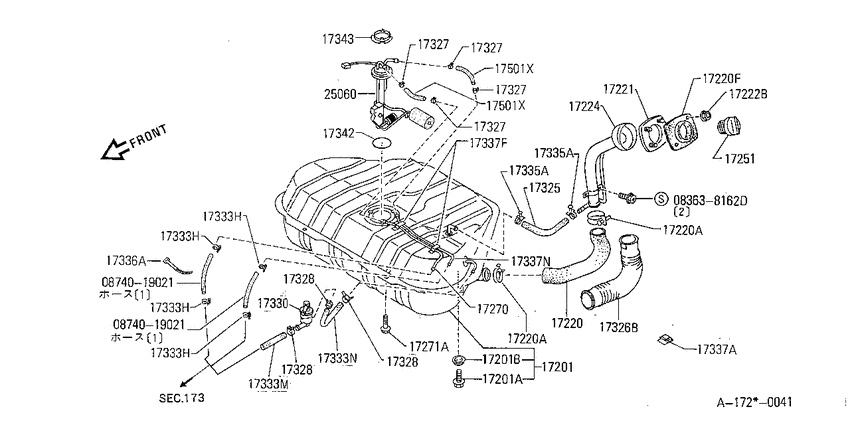

Fuel tank (1989-01-01 ~ ; ALL) Diagram Nissan S-CARGO
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- E15S
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083638162D
|
083638162D
08363-8162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8162D |
— | ||
|
0874019021
|
0874019021
08740-19021
HOSE-FUEL
|
08740-19021 |
— | ||
|
0874019021
|
0874019021
08740-19021
HOSE-FUEL
|
08740-19021 |
— | ||
|
17201
|
17201
17202-48A05 ﾀﾝｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾕ-ｴﾙ8901--01 ~ ; *E15S; ｶﾝﾚｲﾁ ｼﾖｳ |
17202-48A05 |
US $562.15 |
||
|
17201
|
17201
17202-48A10 ﾀﾝｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾕ-ｴﾙ8901--01 ~ ; E15S |
17202-48A10 |
US $562.15 |
||
|
17201
|
17201
01125-00062 Plug-Drain8908--01 ~ ; *E15S; ｶﾝﾚｲﾁ ｼﾖｳ |
01125-00062 |
US $3.06 |
||
|
17201
|
17201
17232-79900 Packing-Drain Plug8908--01 ~ ; *E15S; ｶﾝﾚｲﾁ ｼﾖｳ |
17232-79900 |
US $3.06 |
||
|
17201A
|
17201A
01125-00062 Plug-Drain8908--01 ~ ; *E15S; ｶﾝﾚｲﾁ ｼﾖｳ |
01125-00062 |
US $3.06 |
||
|
17201B
|
17201B
17232-79900 Packing-Drain Plug8908--01 ~ ; *E15S; ｶﾝﾚｲﾁ ｼﾖｳ |
17232-79900 |
US $3.06 |
||
|
17220
|
17220
17228-48A00 ﾎ-ｽ,ﾌｲﾗ-8901--01 ~ ; E15S |
17228-48A00 |
US $71.71 |
||
|
17220
|
17220
01555-00311
CLAMP-HOSE
8901--01 ~ ; E15S |
01555-00311 |
— | ||
| replacement | |||||
|
17220
|
17220
0155500951 CLAMP8901--01 ~ ; E15S |
0155500951 |
from US $2.98 |
||
|
17220
|
17220
17240-30R00 Grommet-Filler Base8901--01 ~ ; E15S |
17240-30R00 |
US $27.94 |
||
|
17220A
|
17220A
01555-00311
CLAMP-HOSE
8901--01 ~ ; E15S |
01555-00311 |
— | ||
| replacement | |||||
|
17220A
|
17220A
0155500951 CLAMP8901--01 ~ ; E15S |
0155500951 |
from US $2.98 |
||
|
17220A
|
17220A
01555-00311
CLAMP-HOSE
8901--01 ~ ; E15S |
01555-00311 |
— | ||
| replacement | |||||
|
17220A
|
17220A
0155500951 CLAMP8901--01 ~ ; E15S |
0155500951 |
from US $2.98 |
||
|
17220F
|
17220F
17240-30R00 Grommet-Filler Base8901--01 ~ ; E15S |
17240-30R00 |
US $27.94 |
||
|
17221
|
17221
17241-01E01
PLATE-HOSE GROMMET
8901--01 ~ ; E15S |
17241-01E01 |
— | ||
|
17222B
|
17222B
0122100261 NUT8901--01 ~ ; E15S |
0122100261 |
US $2.36 |
||
|
17224
|
17224
17221-48A00 ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌｲﾗ-8901--01 ~ ; E15S |
17221-48A00 |
US $197.28 |
||
|
17251
|
17251
17251-79915
Cap Assy-Filler
8901--01 ~ ; E15S |
17251-79915 |
— | ||
| replacement | |||||
|
17251
|
17251
1725179920 Cap Assy-Filler8901--01 ~ ; E15S |
1725179920 |
from US $32.99 |
||
|
17270
|
17270
17271-01B01 Tube Assy-Fuel Tank Outlet8901--01 ~ ; E15S |
17271-01B01 |
US $12.53 |
||
|
17271A
|
17271A
01121-00911 BOLT8901--01 ~ ; E15S |
01121-00911 |
US $3.06 |
||
|
17325
|
17325
17227-48A00 ﾎ-ｽ,ﾍﾞﾝﾁﾚ-ｼﾖﾝ8901--01 ~ ; E15S |
17227-48A00 |
US $54.58 |
||
|
17326B
|
17326B
17291-30R00 Protector-Filler Hose8901--01 ~ ; E15S |
17291-30R00 |
US $30.82 |
||
|
17327
|
17327
16439-U6800 Clamp-Breather Hose8901--01 ~ ; E15S |
16439-U6800 |
US $1.15 |
||
|
17327
|
17327
16439-U6800 Clamp-Breather Hose8901--01 ~ ; E15S |
16439-U6800 |
US $1.15 |
||
|
17327
|
17327
16439-U6800 Clamp-Breather Hose8901--01 ~ ; E15S |
16439-U6800 |
US $1.15 |
||
|
17327
|
17327
16439-U6800 Clamp-Breather Hose8901--01 ~ ; E15S |
16439-U6800 |
US $1.15 |
||
|
17328
|
17328
17386-M7001 Clip8901--01 ~ ; E15S |
17386-M7001 |
US $2.45 |
||
| replacement | |||||
|
17328
|
17328
17326-F990A Clamp-Breather Hose8901--01 ~ ; E15S |
17326-F990A |
US $2.45 |
||
|
17328
|
17328
17386-M7001 Clip8901--01 ~ ; E15S |
17386-M7001 |
US $2.45 |
||
| replacement | |||||
|
17328
|
17328
17326-F990A Clamp-Breather Hose8901--01 ~ ; E15S |
17326-F990A |
US $2.45 |
||
|
17328
|
17328
17386-M7001 Clip8901--01 ~ ; E15S |
17386-M7001 |
US $2.45 |
||
| replacement | |||||
|
17328
|
17328
17326-F990A Clamp-Breather Hose8901--01 ~ ; E15S |
17326-F990A |
US $2.45 |
||
|
17330
|
17330
17330-01P00
Valve Assy-Check, Fuel
8901--01 ~ 9012--01; E15S |
17330-01P00 |
— | ||
| replacement | |||||
|
17330
|
17330
1737079901 Valve Assy-Fuel Check8901--01 ~ 9012--01; E15S |
1737079901 |
US $60.04 |
||
|
17330
|
17330
1737079901 Valve Assy-Fuel Check9012--01 ~ ; E15S |
1737079901 |
US $60.04 |
||
|
17333H
|
17333H
01555-00181
CLIP
8901--01 ~ ; E15S |
01555-00181 |
— | ||
| replacement | |||||
|
17333H
|
17333H
01555-00791 CLAMP8901--01 ~ ; E15S |
01555-00791 |
from US $3.24 |
||
|
17333H
|
17333H
01555-00181
CLIP
8901--01 ~ ; E15S |
01555-00181 |
— | ||
| replacement | |||||
|
17333H
|
17333H
01555-00791 CLAMP8901--01 ~ ; E15S |
01555-00791 |
from US $3.24 |
||
|
17333H
|
17333H
01555-00181
CLIP
8901--01 ~ ; E15S |
01555-00181 |
— | ||
| replacement | |||||
|
17333H
|
17333H
01555-00791 CLAMP8901--01 ~ ; E15S |
01555-00791 |
from US $3.24 |
||
|
17333H
|
17333H
01555-00181
CLIP
8901--01 ~ ; E15S |
01555-00181 |
— | ||
| replacement | |||||
|
17333H
|
17333H
01555-00791 CLAMP8901--01 ~ ; E15S |
01555-00791 |
from US $3.24 |
||
|
17333M
|
17333M
A7335U0110 Hose-Evaporation8901--01 ~ ; E15S; L=420 |
A7335U0110 |
US $43.19 |
||
|
17333N
|
17333N
A7335U0110 Hose-Evaporation8901--01 ~ ; E15S; L=300 |
A7335U0110 |
US $43.19 |
||
|
17335A
|
17335A
01555-00391
CLAMP-HOSE
8901--01 ~ ; E15S |
01555-00391 |
— | ||
| replacement | |||||
|
17335A
|
17335A
0155500841 CLIP8901--01 ~ ; E15S |
0155500841 |
from US $1.37 |
||
|
17335A
|
17335A
01555-00391
CLAMP-HOSE
8901--01 ~ ; E15S |
01555-00391 |
— | ||
| replacement | |||||
|
17335A
|
17335A
0155500841 CLIP8901--01 ~ ; E15S |
0155500841 |
from US $1.37 |
||
|
17336A
|
17336A
01552-00401
CLIP-WIRING HARNESS
8901--01 ~ ; E15S |
01552-00401 |
— | ||
| replacement | |||||
|
17336A
|
17336A
2421610Y80 Clamp8901--01 ~ ; E15S |
2421610Y80 |
from US $4.42 |
||
|
17337A
|
17337A
16439-N2100
Clamp-Hose
8901--01 ~ ; E15S |
16439-N2100 |
— | ||
| replacement | |||||
|
17337A
|
17337A
16439N210A Clamp-Hose8901--01 ~ ; E15S |
16439N210A |
from US $3.32 |
||
|
17337F
|
17337F
17273-01B01 Clip-Tube8901--01 ~ ; E15S |
17273-01B01 |
US $4.18 |
||
|
17337N
|
17337N
17272-01B01 Tube Assy-Fuel Tank Return8901--01 ~ ; E15S |
17272-01B01 |
US $12.53 |
||
|
17342
|
17342
1734201L00 Seal-O Ring, Fuel Gauge8901--01 ~ ; E15S |
1734201L00 |
from US $15.93 |
||
|
17343
|
17343
17343-01L00 Plate-Lock, Fuel Gauge8901--01 ~ ; E15S |
17343-01L00 |
from US $4.85 |
||
|
17501X
|
17501X
A874220020 Hose-Fuel8901--01 ~ ; E15S; L=75 |
A874220020 |
from US $4.85 |
||
| replacement | |||||
|
17501X
|
17501X
A6440J0100 Hose-Fuel8901--01 ~ ; E15S; L=75 |
A6440J0100 |
US $217.61 |
||
|
17501X
|
17501X
A874220020 Hose-Fuel8901--01 ~ ; E15S; L=75 |
A874220020 |
from US $4.85 |
||
| replacement | |||||
|
17501X
|
17501X
A6440J0100 Hose-Fuel8901--01 ~ ; E15S; L=75 |
A6440J0100 |
US $217.61 |
||
|
25060
|
25060
25060-48A00 ｹﾞ-ｼﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾕﾆﾂﾄ ﾌﾕｰｴﾙ ﾀﾝｸ8901--01 ~ ; E15S |
25060-48A00 |
US $273.60 |
||
