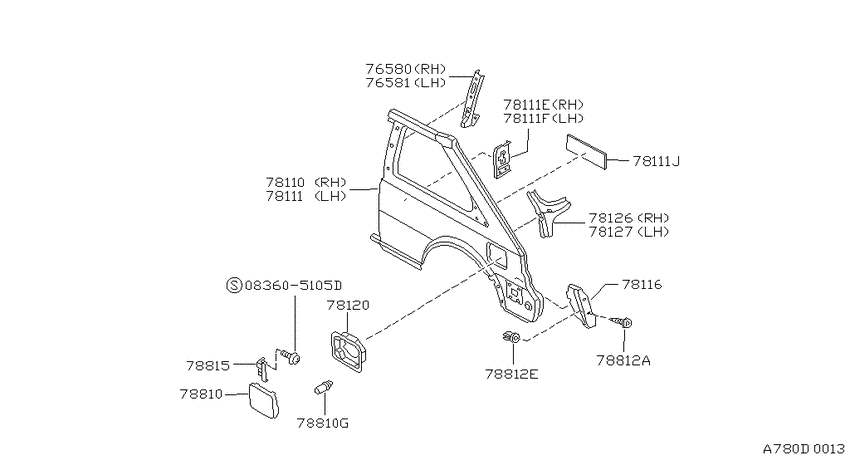

Rear fender & fitting (1986-01-01 ~ ; HB) Diagram Nissan SENTRA/200SX
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Engine
- E16I
- drive
- 2WD
- transmission
- MT
- body
- HB
- trim lvl
- E
- emission
- CAL
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083605105D
|
083605105D
08360-5105D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-5105D |
— | ||
|
76580
|
76580
76580-56A00 Anchor-Belt, Rear Pillar Rh1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
76580-56A00 |
US $53.14 |
||
|
76581
|
76581
76581-56A00 Anchor-Belt, Rear Pillar Lh1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
76581-56A00 |
US $53.14 |
||
|
78110
|
78110
78112-69A30
Fender-rear,rh
1986-01-01 ~ 1987-04-01; FED.HB +CAL.HB; , |
78112-69A30 |
— | ||
|
78110
|
78110
78112-69A31
Fender-rear,rh
1987-04-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
78112-69A31 |
— | ||
|
78111
|
78111
78113-69A30
Fender-rear,lh
1986-01-01 ~ 1987-04-01; FED.HB +CAL.HB; , |
78113-69A30 |
— | ||
|
78111
|
78111
78113-69A31
Fender-rear,lh
1987-04-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
78113-69A31 |
— | ||
|
78111
|
78111
76590-63A00 Retainer-Tapping, Striker1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
76590-63A00 |
US $24.91 |
||
|
78111
|
78111
76591-63A00 Retainer-Tapping, Striker1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
76591-63A00 |
US $24.91 |
||
|
78111
|
78111
80160-50A01 Insulator-Rear Fender1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
80160-50A01 |
US $13.25 |
||
|
78111E
|
78111E
76590-63A00 Retainer-Tapping, Striker1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
76590-63A00 |
US $24.91 |
||
|
78111F
|
78111F
76591-63A00 Retainer-Tapping, Striker1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
76591-63A00 |
US $24.91 |
||
|
78111J
|
78111J
80160-50A01 Insulator-Rear Fender1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
80160-50A01 |
US $13.25 |
||
|
78116
|
78116
78818-50A00 Extension-Rear Fender, Rh1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
78818-50A00 |
US $6.91 |
||
|
78120
|
78120
78120-50A00 Base-Filler Lid1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
78120-50A00 |
US $22.18 |
||
|
78126
|
78126
78136-56A00 Corner-Rear Fender, Rh1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
78136-56A00 |
US $41.47 |
||
|
78127
|
78127
78137-56A00 Corner-Rear Fender, Lh1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
78137-56A00 |
US $41.47 |
||
|
78810
|
78810
78830-60A01
Lid Assy-Fuel Filler
1986-01-01 ~ 1988-07-01; FED.HB.E +CAL.HB.E; , |
78830-60A01 |
— | ||
|
78810
|
78810
01461-00271 SCREW1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
01461-00271 |
from US $2.08 |
||
|
78810
|
78810
0128100111 GROMMET-SCREW1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
0128100111 |
from US $0.83 |
||
|
78810
|
78810
01658-00371 BUMPER-LID1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
01658-00371 |
from US $3.46 |
||
|
78810
|
78810
17290-50A00 Protector-Fuel Filler1986-01-01 ~ 1988-07-01; 2S +4S +HB +W.2WD; , |
17290-50A00 |
US $12.67 |
||
|
78810G
|
78810G
01658-00371 BUMPER-LID1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
01658-00371 |
from US $3.46 |
||
|
78812A
|
78812A
01461-00271 SCREW1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
01461-00271 |
from US $2.08 |
||
|
78812E
|
78812E
0128100111 GROMMET-SCREW1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
0128100111 |
from US $0.83 |
