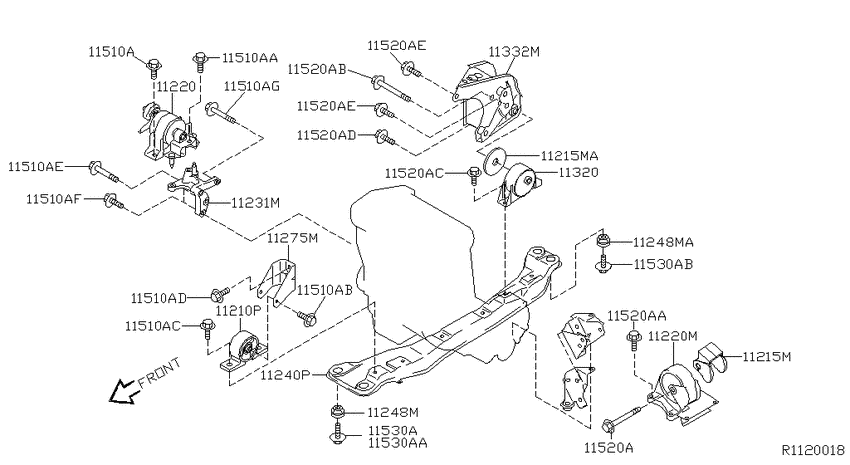

Engine & transmission mounting (2003-04-01 ~ ; QG18DE.MT; QG18DE.MT) Diagram Nissan SENTRA/200SX
- Year
- 2002 - 2003
- Sales region
- U.S.A.
- Engine
- QG18DE
- transmission
- MT
- body
- 4S
- trim lvl
- XE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11210P
|
11210P
11270-4Z000
Insulator Assy-Engine Mounting, Front Rh
2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11270-4Z000 |
— | ||
|
11215M
|
11215M
11215-4M700
Stopper-Rubber, Engine Mounting
2000-12-01 ~ 2001-03-01; QG18DE.MT; , |
11215-4M700 |
— | ||
|
11215M
|
11215M
11215-4Z000
Stopper-Rubber, Engine Mounting
2000-01-01 ~ 2000-12-01; QG18DE.MT; , |
11215-4Z000 |
— | ||
|
11215M
|
11215M
11215-0Z015
Stopper-Rubber, Engine Mounting, Rear
2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11215-0Z015 |
— | ||
|
11215MA
|
11215MA
11215-0Z015
Stopper-Rubber, Engine Mounting, Rear
2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11215-0Z015 |
— | ||
|
11220
|
11220
11210-4Z000
Insulator-Engine Mounting, Front
2000-01-01 ~ 2000-12-01; QG18DE.MT; , |
11210-4Z000 |
— | ||
|
11220
|
11220
11210-4Z010
Insulator-Engine Mounting, Front
2000-12-01 ~ 2001-08-01; QG18DE.MT; , |
11210-4Z010 |
— | ||
|
11220
|
11220
11220-4Z000
Insulator Assy-Engine Mounting, Front Lh
2000-01-01 ~ 2000-12-01; QG18DE.MT; , |
11220-4Z000 |
— | ||
|
11220
|
11220
11220-4Z015
Insulator Assy-Engine Mounting, Front Lh
2000-12-01 ~ 2001-08-01; QG18DE.MT; , |
11220-4Z015 |
— | ||
|
11220M
|
11220M
11220-4Z000
Insulator Assy-Engine Mounting, Front Lh
2000-01-01 ~ 2000-12-01; QG18DE.MT; , |
11220-4Z000 |
— | ||
|
11220M
|
11220M
11220-4Z015
Insulator Assy-Engine Mounting, Front Lh
2000-12-01 ~ 2001-08-01; QG18DE.MT; , |
11220-4Z015 |
— | ||
|
11231M
|
11231M
11231-4Z800
Bracket-Engine Mounting
2002-11-01 ~ ; QG18DE.MT; , |
11231-4Z800 |
— | ||
|
11231M
|
11231M
11231-5M000
Bracket-Engine Mounting
2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11231-5M000 |
— | ||
|
11240P
|
11240P
11240-5M000
Member Assy-Engine Mounting
2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11240-5M000 |
— | ||
|
11240P
|
11240P
11240-F4600
Member Assy-Engine Mounting
2002-12-01 ~ ; QG18DE.MT; , |
11240-F4600 |
— | ||
|
11248M
|
11248M
112484M400 Pad-Engine Mounting Member2000-01-01 ~ 2001-03-01; QG18DE.MT; , |
112484M400 |
from US $7.31 |
||
|
11248M
|
11248M
11248-4Z005
Pad-Engine Mounting Member
2001-03-01 ~ 2001-08-01; QG18DE.MT; , |
11248-4Z005 |
— | ||
|
11248M
|
11248M
112484M410 Pad-Engine Mounting Member2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
112484M410 |
from US $7.31 |
||
|
11248MA
|
11248MA
112484M410 Pad-Engine Mounting Member2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
112484M410 |
from US $7.31 |
||
|
11275M
|
11275M
11274-5M000
Bracket-Engine Mounting Block, Front
2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11274-5M000 |
— | ||
|
11320
|
11320
11320-4Z005
Insulator-Engine Mounting, Rear
2002-07-01 ~ ; QG18DE.MT; , |
11320-4Z005 |
— | ||
|
11320
|
11320
11320-4Z010
Insulator-Engine Mounting, Rear
2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11320-4Z010 |
— | ||
|
11332M
|
11332M
11332-5M000
Bracket-Engine Mounting, Rear
2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11332-5M000 |
— | ||
|
11510A
|
11510A
11298-4M417 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11298-4M417 |
US $3.46 |
||
|
11510A
|
11510A
01125-03311 BOLT2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
01125-03311 |
US $3.46 |
||
|
11510A
|
11510A
112984M420 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
112984M420 |
US $3.46 |
||
|
11510A
|
11510A
11298-5M301
Bolt
2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11298-5M301 |
— | ||
|
11510A
|
11510A
112984M407 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
112984M407 |
from US $2.02 |
||
|
11510A
|
11510A
11298-4M405 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11298-4M405 |
US $3.46 |
||
|
11510A
|
11510A
11298-4M406 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11298-4M406 |
US $4.03 |
||
|
11510A
|
11510A
01125-03211 BOLT2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
01125-03211 |
US $3.31 |
||
|
11510AA
|
11510AA
01125-03311 BOLT2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
01125-03311 |
US $3.46 |
||
|
11510AB
|
11510AB
112984M420 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
112984M420 |
US $3.46 |
||
|
11510AC
|
11510AC
11298-5M301
Bolt
2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11298-5M301 |
— | ||
|
11510AD
|
11510AD
112984M407 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
112984M407 |
from US $2.02 |
||
|
11510AE
|
11510AE
11298-4M405 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11298-4M405 |
US $3.46 |
||
|
11510AF
|
11510AF
11298-4M406 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11298-4M406 |
US $4.03 |
||
|
11510AG
|
11510AG
01125-03211 BOLT2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
01125-03211 |
US $3.31 |
||
|
11520A
|
11520A
11298-4M500 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11298-4M500 |
US $8.06 |
||
|
11520A
|
11520A
112982J206 Bolt2001-01-01 ~ 2001-08-01; QG18DE.MT; , |
112982J206 |
from US $1.76 |
||
|
11520A
|
11520A
112984M420 Bolt2002-07-01 ~ ; QG18DE.MT; , |
112984M420 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M419 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11298-4M419 |
from US $1.81 |
||
|
11520A
|
11520A
11298-4M421 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11298-4M421 |
US $3.46 |
||
|
11520A
|
11520A
112982J209 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
112982J209 |
US $3.26 |
||
|
11520AA
|
11520AA
112982J206 Bolt2001-01-01 ~ 2001-08-01; QG18DE.MT; , |
112982J206 |
from US $1.76 |
||
|
11520AB
|
11520AB
112984M420 Bolt2002-07-01 ~ ; QG18DE.MT; , |
112984M420 |
US $3.46 |
||
|
11520AC
|
11520AC
11298-4M419 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11298-4M419 |
from US $1.81 |
||
|
11520AD
|
11520AD
11298-4M421 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11298-4M421 |
US $3.46 |
||
|
11520AE
|
11520AE
112982J209 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
112982J209 |
US $3.26 |
||
|
11520AE
|
11520AE
112982J209 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
112982J209 |
US $3.26 |
||
|
11530A
|
11530A
112984M413 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
112984M413 |
from US $1.63 |
||
|
11530A
|
11530A
112982J220 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
112982J220 |
US $3.46 |
||
|
11530A
|
11530A
112982J221 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
112982J221 |
from US $1.79 |
||
|
11530A
|
11530A
11298-4M419 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
11298-4M419 |
from US $1.81 |
||
|
11530AA
|
11530AA
112982J220 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
112982J220 |
US $3.46 |
||
|
11530AB
|
11530AB
112982J221 Bolt2000-01-01 ~ 2001-08-01; QG18DE.MT; , |
112982J221 |
from US $1.79 |
