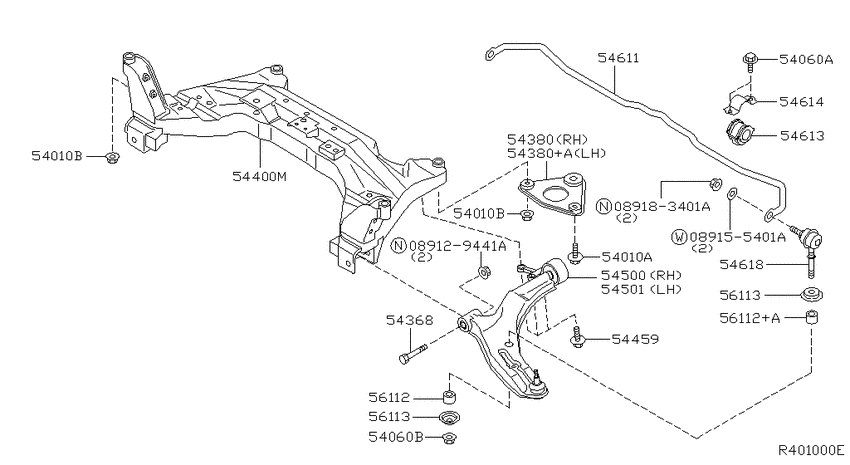

Front suspension (2000-01-01 ~ 2001-08-01; STABILIZER PARTS; QG18DE +SR20DE) Diagram Nissan SENTRA/200SX
- Year
- 2000 - 2001
- Sales region
- U.S.A.
- Engine
- SR20DE
- transmission
- MT
- body
- 4S
- trim lvl
- SE
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089129441A
|
089129441A
089129441A NUTHEX |
089129441A |
from US $1.02 |
||
|
089155401A
|
089155401A
089155401A WASHERPLAIN |
089155401A |
from US $0.52 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
54010A
|
54010A
01125-00161 BOLT2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
01125-00161 |
US $2.45 |
||
|
54010B
|
54010B
0122500891 NUT2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
0122500891 |
US $2.45 |
||
|
54010B
|
54010B
0122500891 NUT2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
0122500891 |
US $2.45 |
||
|
54060A
|
54060A
54459-0M010 Bolt2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
54459-0M010 |
US $2.45 |
||
| replacement | |||||
|
54060A
|
54060A
54459-0M01A Bolt2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
54459-0M01A |
from US $1.05 |
||
|
54060B
|
54060B
0122300291 NUT2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
0122300291 |
from US $0.70 |
||
|
54368
|
54368
54368-4M400 Bolt2000-01-01 ~ 2001-08-01; SR20DE; , |
54368-4M400 |
US $7.34 |
||
| replacement | |||||
|
54368
|
54368
543684M40A Bolt2000-01-01 ~ 2001-08-01; SR20DE; , |
543684M40A |
US $6.95 |
||
|
54380
|
54380
543424M410 Stopper-Insulator2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; F/RH |
543424M410 |
US $35.42 |
||
|
54380
|
54380
543434M410 Stopper-Insulator2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; F/LH |
543434M410 |
US $35.42 |
||
|
54380+A
|
54380+A
543434M410 Stopper-Insulator2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; F/LH |
543434M410 |
US $35.42 |
||
|
54400M
|
54400M
54401-5M000
Member compl-front suspension
2000-01-01 ~ 2001-08-01; QG18DE.CA +SR20DE; , |
54401-5M000 |
— | ||
|
54459
|
54459
54459-4M400 Bolt2000-01-01 ~ 2001-08-01; SR20DE; , |
54459-4M400 |
US $4.18 |
||
| replacement | |||||
|
54459
|
54459
544594M401 Bolt2000-01-01 ~ 2001-08-01; SR20DE; , |
544594M401 |
US $4.18 |
||
|
54459
|
54459
54459-4M405 Bolt2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
54459-4M405 |
US $4.75 |
||
|
54459
|
54459
54459-4M415 Bolt2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
54459-4M415 |
US $3.60 |
||
|
54500
|
54500
54500-4Z005
Link compl-transverse,rh
2000-12-01 ~ 2001-08-01; SR20DE; , |
54500-4Z005 |
— | ||
|
54500
|
54500
54500-4Z010
Link compl-transverse,rh
2000-01-01 ~ 2000-12-01; *SR20DE; , |
54500-4Z010 |
— | ||
|
54500
|
54500
54500-4Z011
Link compl-transverse,rh
2000-12-01 ~ 2001-08-01; *SR20DE; , |
54500-4Z011 |
— | ||
|
54500
|
54500
54500-5M000
Link compl-transverse,rh
2000-01-01 ~ 2000-12-01; QG18DE +SR20DE; , |
54500-5M000 |
— | ||
|
54501
|
54501
54501-4Z005
Link compl-transverse,lh
2000-12-01 ~ 2001-08-01; SR20DE; , |
54501-4Z005 |
— | ||
|
54501
|
54501
54501-4Z010
Link compl-transverse,lh
2000-01-01 ~ 2000-12-01; *SR20DE; , |
54501-4Z010 |
— | ||
|
54501
|
54501
54501-4Z011
Link compl-transverse,lh
2000-12-01 ~ 2001-08-01; *SR20DE; , |
54501-4Z011 |
— | ||
|
54501
|
54501
54501-5M000
Link compl-transverse,lh
2000-01-01 ~ 2000-12-01; QG18DE +SR20DE; , |
54501-5M000 |
— | ||
|
54611
|
54611
54611-4Z000
Stabilizer-front
2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
54611-4Z000 |
— | ||
|
54613
|
54613
54613-4Z000
Bush-stabilizer
2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
54613-4Z000 |
— | ||
|
54614
|
54614
54614-4M400 Clamp-Stabilizer2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
54614-4M400 |
from US $10.37 |
||
|
54618
|
54618
54618-4Z000
Rod assy-connecting,stabilizer
2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
54618-4Z000 |
— | ||
|
56112
|
56112
56112-4Z000
Bush
2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
56112-4Z000 |
— | ||
|
56112
|
56112
56112-4Z010
Bush
2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
56112-4Z010 |
— | ||
|
56112+A
|
56112+A
56112-4Z010
Bush
2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
56112-4Z010 |
— | ||
|
56113
|
56113
56113-50Y00
Washer-Special, Outer
2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
56113-50Y00 |
— | ||
| replacement | |||||
|
56113
|
56113
5611350Y0A Washer-Special, Outer2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
5611350Y0A |
from US $1.67 |
||
|
56113
|
56113
56113-4U000 Washer-Special2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
56113-4U000 |
US $1.58 |
||
|
56113
|
56113
56113-50Y00
Washer-Special, Outer
2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
56113-50Y00 |
— | ||
| replacement | |||||
|
56113
|
56113
5611350Y0A Washer-Special, Outer2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
5611350Y0A |
from US $1.67 |
||
|
56113
|
56113
56113-4U000 Washer-Special2000-01-01 ~ 2001-08-01; QG18DE +SR20DE; , |
56113-4U000 |
US $1.58 |
||
