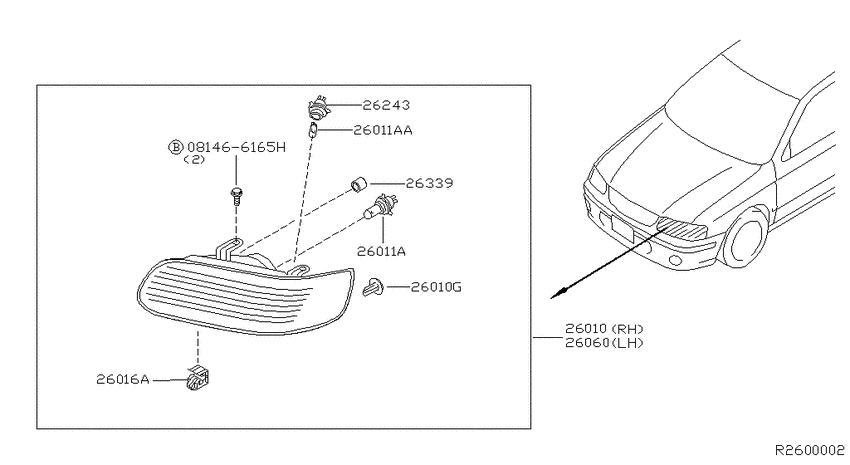

Head lamp (2000-01-01 ~ 2001-08-01; 4S) Diagram Nissan SENTRA/200SX
- Year
- 2000 - 2001
- Sales region
- U.S.A.
- Engine
- SR20DE
- transmission
- MT
- body
- 4S
- trim lvl
- SE
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466165H
|
081466165H
081466165H Bolt-hexagon |
081466165H |
from US $0.63 |
||
|
26010
|
26010
26010-5M026
Lamp assy-rh
2000-01-01 ~ 2000-08-01; 4S; , |
26010-5M026 |
— | ||
|
26010
|
26010
B6010-4Z300
Headlamp Assy-Rh
2000-08-01 ~ 2001-08-01; *4S; , |
B6010-4Z300 |
— | ||
|
26010
|
26010
263993J110 Grommet-Screw2000-01-01 ~ 2000-08-01; 4S; , |
263993J110 |
US $1.01 |
||
|
26010G
|
26010G
263993J110 Grommet-Screw2000-01-01 ~ 2000-08-01; 4S; , |
263993J110 |
US $1.01 |
||
|
26011A
|
26011A
26296-9B901
Bulb
2000-01-01 ~ 2000-08-01; 4S; , |
26296-9B901 |
— | ||
|
26011A
|
26011A
26717-9B903
Bulb
2000-01-01 ~ 2000-08-01; 4S; , |
26717-9B903 |
— | ||
|
26011A
|
26011A
26717-9B913 Bulb2000-09-01 ~ 2001-08-01; 4S; , |
26717-9B913 |
US $12.40 |
||
|
26011AA
|
26011AA
26717-9B903
Bulb
2000-01-01 ~ 2000-08-01; 4S; , |
26717-9B903 |
— | ||
|
26011AA
|
26011AA
26717-9B913 Bulb2000-09-01 ~ 2001-08-01; 4S; , |
26717-9B913 |
US $12.40 |
||
|
26016A
|
26016A
263982Y001 Clip2000-01-01 ~ 2000-08-01; 4S; , |
263982Y001 |
from US $1.98 |
||
|
26060
|
26060
26060-5M026
Lamp assy-lh
2000-01-01 ~ 2000-08-01; 4S; , |
26060-5M026 |
— | ||
|
26060
|
26060
B6060-4Z300
Headlamp Assy-Lh
2000-08-01 ~ 2001-08-01; *4S; , |
B6060-4Z300 |
— | ||
|
26243
|
26243
26242-4Z000
Socket assy
2000-01-01 ~ 2000-08-01; 4S; , |
26242-4Z000 |
— | ||
|
26243
|
26243
26243-9B903
Socket Assy-Headlamp
2000-01-01 ~ 2001-08-01; *4S; , |
26243-9B903 |
— | ||
|
26339
|
26339
26049-4Z000
Cap-Headlamp
2000-01-01 ~ 2000-08-01; 4S; , |
26049-4Z000 |
— |
