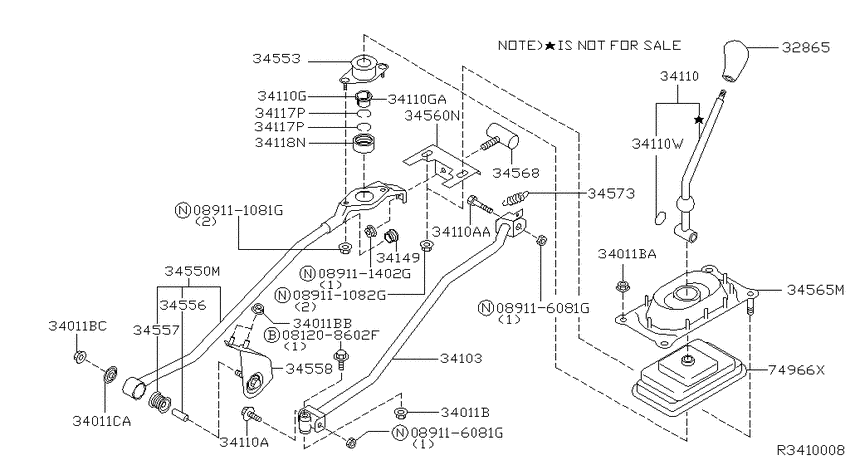

Transmission control & linkage (2000-01-01 ~ 2001-08-01; SR20DE) Diagram Nissan SENTRA/200SX
- Year
- 2000 - 2001
- Sales region
- U.S.A.
- Engine
- SR20DE
- transmission
- MT
- body
- 4S
- trim lvl
- SE
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208602F
|
081208602F
08120-8602F
Bolt-hexagon
|
08120-8602F |
— | ||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111402G
|
089111402G
089111402G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111402G |
— | ||
|
089116081G
|
089116081G
08911-6081G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6081G |
— | ||
|
089116081G
|
089116081G
08911-6081G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6081G |
— | ||
|
32865
|
32865
32865-4Z010
Knob-Control Lever
2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
32865-4Z010 |
— | ||
|
32865
|
32865
32865-4Z015
Knob-Control Lever
2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
32865-4Z015 |
— | ||
|
34011B
|
34011B
0122500261 NUT2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
0122500261 |
from US $0.57 |
||
|
34011B
|
34011B
0122500102 NUT2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
0122500102 |
from US $0.56 |
||
|
34011B
|
34011B
0122500371 NUT2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
0122500371 |
US $1.73 |
||
|
34011B
|
34011B
0122500261 NUT2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
0122500261 |
from US $0.57 |
||
|
34011BA
|
34011BA
0122500102 NUT2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
0122500102 |
from US $0.56 |
||
|
34011BB
|
34011BB
0122500371 NUT2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
0122500371 |
US $1.73 |
||
|
34011BC
|
34011BC
0122500261 NUT2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
0122500261 |
from US $0.57 |
||
|
34011CA
|
34011CA
34555-D4000 Washer2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34555-D4000 |
US $3.46 |
||
| replacement | |||||
|
34011CA
|
34011CA
34555D400A Washer2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34555D400A |
from US $1.35 |
||
|
34103
|
34103
34103-4M800
Rod Assy-Control
2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34103-4M800 |
— | ||
|
34110
|
34110
34110-5M400 Lever Assy-Control2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34110-5M400 |
US $62.79 |
||
|
34110
|
34110
34136-50J00 Bolt2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34136-50J00 |
US $2.45 |
||
| replacement | |||||
|
34110
|
34110
34136-2Y00B Bolt2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34136-2Y00B |
US $2.45 |
||
|
34110
|
34110
34136-0M000 Bolt2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34136-0M000 |
US $1.73 |
||
| replacement | |||||
|
34110
|
34110
341362Y00A Bolt2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
341362Y00A |
US $1.73 |
||
|
34110
|
34110
34116-0M000 Bearing-Hand Lever2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34116-0M000 |
from US $7.20 |
||
|
34110
|
34110
34116-0M000 Bearing-Hand Lever2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34116-0M000 |
from US $7.20 |
||
|
34110
|
34110
3416350J00 Seal-O Ring2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
3416350J00 |
US $3.75 |
||
|
34110A
|
34110A
34136-50J00 Bolt2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34136-50J00 |
US $2.45 |
||
| replacement | |||||
|
34110A
|
34110A
34136-2Y00B Bolt2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34136-2Y00B |
US $2.45 |
||
|
34110A
|
34110A
34136-0M000 Bolt2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34136-0M000 |
US $1.73 |
||
| replacement | |||||
|
34110A
|
34110A
341362Y00A Bolt2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
341362Y00A |
US $1.73 |
||
|
34110AA
|
34110AA
34136-0M000 Bolt2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34136-0M000 |
US $1.73 |
||
| replacement | |||||
|
34110AA
|
34110AA
341362Y00A Bolt2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
341362Y00A |
US $1.73 |
||
|
34110G
|
34110G
34116-0M000 Bearing-Hand Lever2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34116-0M000 |
from US $7.20 |
||
|
34110G
|
34110G
34116-0M000 Bearing-Hand Lever2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34116-0M000 |
from US $7.20 |
||
|
34110GA
|
34110GA
34116-0M000 Bearing-Hand Lever2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34116-0M000 |
from US $7.20 |
||
|
34110W
|
34110W
3416350J00 Seal-O Ring2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
3416350J00 |
US $3.75 |
||
|
34117P
|
34117P
34117-0M000 Spring-Bearing Set2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34117-0M000 |
US $3.74 |
||
|
34117P
|
34117P
34117-0M000 Spring-Bearing Set2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34117-0M000 |
US $3.74 |
||
|
34118N
|
34118N
34118-0M000 Seat-Bearing Set2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34118-0M000 |
US $8.35 |
||
|
34149
|
34149
34149-2J200 Cap-Control Lever2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34149-2J200 |
US $8.21 |
||
|
34550M
|
34550M
34550-4M400 Support Assy-Control Rod2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34550-4M400 |
US $69.98 |
||
|
34553
|
34553
34553-0M000 Socket Assy-Hand Lever2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34553-0M000 |
US $13.29 |
||
|
34556
|
34556
34556-D4000 Tube-Control Rod Support Bush2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34556-D4000 |
US $5.04 |
||
| replacement | |||||
|
34556
|
34556
345562Y00A Tube-Control Rod Support Bush2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
345562Y00A |
US $5.62 |
||
|
34557
|
34557
34557-50J00 Bush-Control Rod Support2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34557-50J00 |
from US $6.60 |
||
|
34558
|
34558
34558-4M800
Bracket-Support Rod
2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34558-4M800 |
— | ||
|
34560N
|
34560N
34560-5M400 Bracket Assy-Holder Rubber2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34560-5M400 |
from US $45.79 |
||
|
34565M
|
34565M
74965-5M400 Cover-Transmission Hole2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
74965-5M400 |
from US $15.93 |
||
|
34568
|
34568
34568-9E010 DAMPER-MASS2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
34568-9E010 |
US $26.34 |
||
|
34573
|
34573
345734M500 Spring-Return, Lever2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
345734M500 |
US $7.20 |
||
|
74966X
|
74966X
74966-6J000 Cover-Transmission Hole2000-01-01 ~ 2001-08-01; SR20DE.MT; , |
74966-6J000 |
US $35.14 |
||
