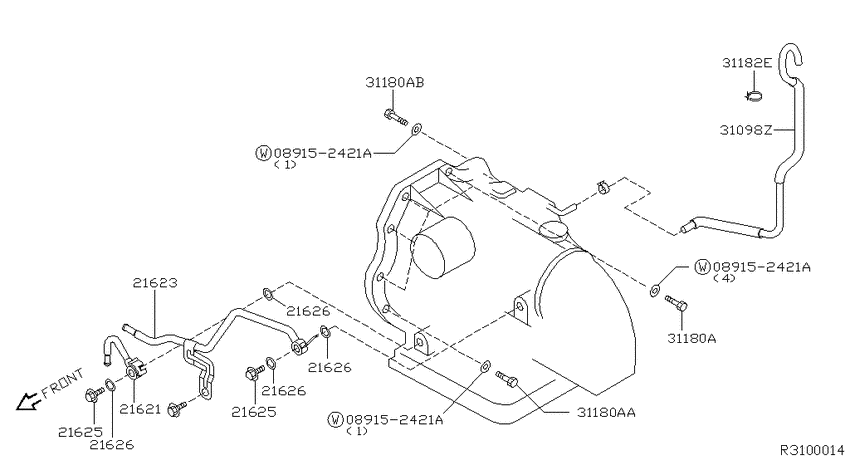

Auto transmission,transaxle & fitting (2003-04-01 ~ ; OIL COOLER TUBE PARTS; QR25DE.AT) Diagram Nissan SENTRA/200SX
- Year
- 2003 - 2011
- Sales region
- U.S.A.
- Engine
- QR25DE
- transmission
- AT
- body
- 4S
- trim lvl
- SER
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
21621
|
21621
21621-8H300 Tube Assy-Oil Cooler2003-04-01 ~ ; QR25DE.AT; , |
21621-8H300 |
US $22.46 |
||
| replacement | |||||
|
21621
|
21621
21621-8H30B Tube Assy-Oil Cooler2003-04-01 ~ ; QR25DE.AT; , |
21621-8H30B |
US $30.22 |
||
|
21623
|
21623
21623-8H305 Tube Assy-Oil Cooler2003-04-01 ~ ; QR25DE.AT; , |
21623-8H305 |
US $47.38 |
||
| replacement | |||||
|
21623
|
21623
21623-8H30A Tube Assy-Oil Cooler2003-04-01 ~ ; QR25DE.AT; , |
21623-8H30A |
US $64.04 |
||
|
21625
|
21625
21625-F6105
Bolt-Connector
2003-04-01 ~ ; QR25DE.AT; , |
21625-F6105 |
— | ||
| replacement | |||||
|
21625
|
21625
21625JL00A Bolt-Connector2003-04-01 ~ ; QR25DE.AT; , |
21625JL00A |
US $8.59 |
||
|
21625
|
21625
21625-F6105
Bolt-Connector
2003-04-01 ~ ; QR25DE.AT; , |
21625-F6105 |
— | ||
| replacement | |||||
|
21625
|
21625
21625JL00A Bolt-Connector2003-04-01 ~ ; QR25DE.AT; , |
21625JL00A |
US $8.59 |
||
|
21626
|
21626
2162632U00 Washer-Seal2003-04-01 ~ ; QR25DE.AT; , |
2162632U00 |
from US $0.59 |
||
|
21626
|
21626
2162632U00 Washer-Seal2003-04-01 ~ ; QR25DE.AT; , |
2162632U00 |
from US $0.59 |
||
|
21626
|
21626
2162632U00 Washer-Seal2003-04-01 ~ ; QR25DE.AT; , |
2162632U00 |
from US $0.59 |
||
|
21626
|
21626
2162632U00 Washer-Seal2003-04-01 ~ ; QR25DE.AT; , |
2162632U00 |
from US $0.59 |
||
|
31098Z
|
31098Z
31098-8H300 Hose-Breather2003-04-01 ~ ; QR25DE.AT; , |
31098-8H300 |
US $15.12 |
||
|
31180A
|
31180A
31377-8J000 Bolt2003-04-01 ~ ; QR25DE.AT; , |
31377-8J000 |
US $2.45 |
||
|
31180A
|
31180A
31377-2U500 Bolt2003-04-01 ~ ; QR25DE.AT; , |
31377-2U500 |
from US $2.36 |
||
|
31180A
|
31180A
31377-15U02
Bolt
2003-04-01 ~ ; QR25DE.AT; , |
31377-15U02 |
— | ||
| replacement | |||||
|
31180A
|
31180A
31377-15U0B Bolt2003-04-01 ~ ; QR25DE.AT; , |
31377-15U0B |
US $2.78 |
||
|
31180AA
|
31180AA
31377-2U500 Bolt2003-04-01 ~ ; QR25DE.AT; , |
31377-2U500 |
from US $2.36 |
||
|
31180AB
|
31180AB
31377-15U02
Bolt
2003-04-01 ~ ; QR25DE.AT; , |
31377-15U02 |
— | ||
| replacement | |||||
|
31180AB
|
31180AB
31377-15U0B Bolt2003-04-01 ~ ; QR25DE.AT; , |
31377-15U0B |
US $2.78 |
||
|
31182E
|
31182E
24225-79903 Clip2003-04-01 ~ ; QR25DE.AT; , |
24225-79903 |
US $4.18 |
||
