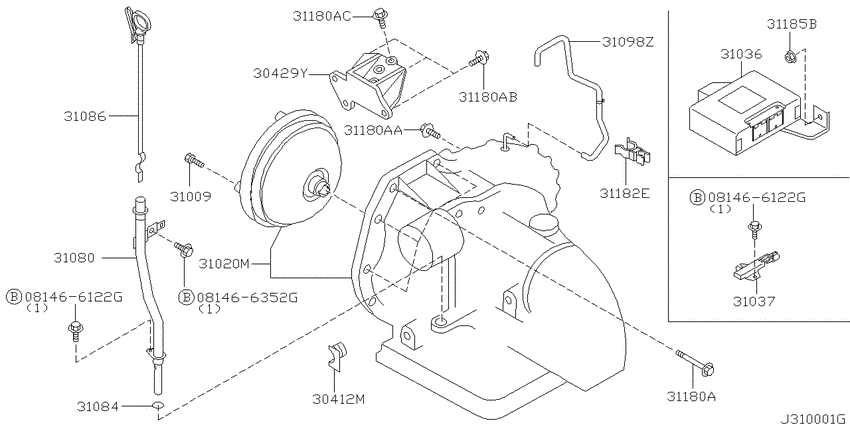

Auto transmission,transaxle & fitting (1999-06-01 ~ 2000-06-01; &アッセンブリー&フィッティング パーツ; 4WD.AT.R4) Diagram Nissan SERENA
- Year
- 1999 - 2000
- Sales region
- Japan
- Engine
- YD25DDTI
- drive
- 4WD
- transmission
- AT.R4
- grade
- X
- body
- W
- Roof
- N/R
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
081466352G
|
081466352G
08146-6352G
Bolt-hexagon
|
08146-6352G |
— | ||
|
30412M
|
30412M
30412-AD200 Seal-Rubber.rear Engine9906--01 ~ 0006--01; 4WD.AT.R4 |
30412-AD200 |
US $6.19 |
||
|
30429Y
|
30429Y
30441-WA500 Gusset-Transmission To Engine9906--01 ~ 0006--01; 4WD.AT.R4 |
30441-WA500 |
US $31.10 |
||
|
31009
|
31009
3100921X00 Bolt-Self Lock9906--01 ~ 0006--01; 4WD.AT.R4 |
3100921X00 |
from US $2.65 |
||
|
31020M
|
31020M
31020-81X04 Transaxle Assy-Automatic9906--01 ~ 0006--01; 4WD.AT.R4 |
31020-81X04 |
US $4,704 |
||
|
31036
|
31036
31036-4N110 Control Unit-Shift9906--01 ~ 0006--01; 4WD.AT.R4 |
31036-4N110 |
US $625.87 |
||
|
31037
|
31037
31037-71L00 Resistor Assy-Auto Transmission9906--01 ~ 0006--01; 4WD.AT.R4 |
31037-71L00 |
US $37.84 |
||
|
31080
|
31080
31080-AD200 Pipe Assy-Oil Charging9906--01 ~ 0006--01; 4WD.AT.R4 |
31080-AD200 |
US $49.25 |
||
|
31084
|
31084
31084M7500 Seal-O Ring9906--01 ~ 0006--01; 4WD.AT.R4 |
31084M7500 |
US $1.15 |
||
|
31086
|
31086
31086-AD101 Gauge Assy-Oil Level9906--01 ~ 0006--01; 4WD.AT.R4 |
31086-AD101 |
US $16.85 |
||
|
31098Z
|
31098Z
31098-4N100 Hose-Breather9906--01 ~ 0006--01; 4WD.AT.R4 |
31098-4N100 |
US $42.19 |
||
|
31180A
|
31180A
31377-0E000 BOLT9906--01 ~ 0006--01; 4WD.AT.R4 |
31377-0E000 |
US $2.45 |
||
|
31180A
|
31180A
31377-5V201 Bolt9906--01 ~ 0006--01; 4WD.AT.R4 |
31377-5V201 |
US $2.45 |
||
|
31180A
|
31180A
31377-15U01
Bolt
9906--01 ~ 0006--01; 4WD.AT.R4 |
31377-15U01 |
— | ||
| replacement | |||||
|
31180A
|
31180A
081210301E Bolt-hexagon9906--01 ~ 0006--01; 4WD.AT.R4 |
081210301E |
from US $1.22 |
||
|
31180A
|
31180A
31377-15U01
Bolt
9906--01 ~ 0006--01; 4WD.AT.R4 |
31377-15U01 |
— | ||
| replacement | |||||
|
31180A
|
31180A
081210301E Bolt-hexagon9906--01 ~ 0006--01; 4WD.AT.R4 |
081210301E |
from US $1.22 |
||
|
31180AA
|
31180AA
31377-5V201 Bolt9906--01 ~ 0006--01; 4WD.AT.R4 |
31377-5V201 |
US $2.45 |
||
|
31180AB
|
31180AB
31377-15U01
Bolt
9906--01 ~ 0006--01; 4WD.AT.R4 |
31377-15U01 |
— | ||
| replacement | |||||
|
31180AB
|
31180AB
081210301E Bolt-hexagon9906--01 ~ 0006--01; 4WD.AT.R4 |
081210301E |
from US $1.22 |
||
|
31180AC
|
31180AC
31377-15U01
Bolt
9906--01 ~ 0006--01; 4WD.AT.R4 |
31377-15U01 |
— | ||
| replacement | |||||
|
31180AC
|
31180AC
081210301E Bolt-hexagon9906--01 ~ 0006--01; 4WD.AT.R4 |
081210301E |
from US $1.22 |
||
|
31182E
|
31182E
24220-AD200 Clip9906--01 ~ 0006--01; 4WD.AT.R4 |
24220-AD200 |
US $3.46 |
||
|
31185B
|
31185B
0122500371 NUT9906--01 ~ 0006--01; 4WD.AT.R4 |
0122500371 |
US $1.73 |
||
