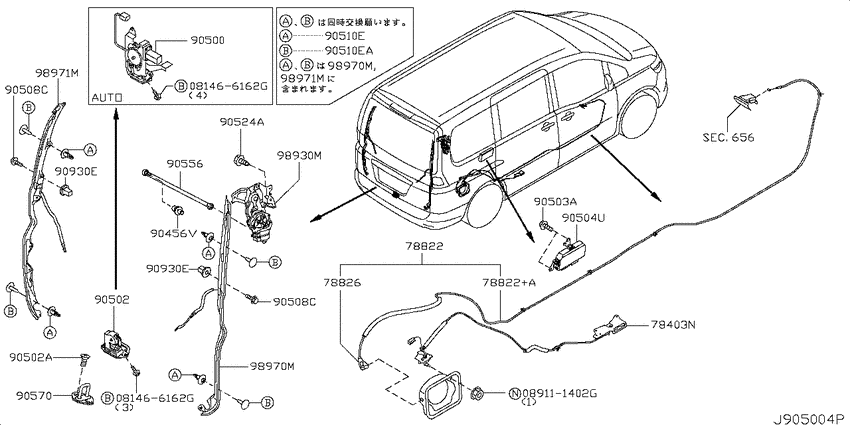

Back door lock & handle (2006-01-01 ~ 2007-12-01; W) Diagram Nissan SERENA
- Year
- 2005 - 2007
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20RX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.67 |
||
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.67 |
||
|
089111402G
|
089111402G
089111402G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111402G |
— | ||
|
656
|
Hood lock control
656
|
||||
|
656
|
Hood lock control
656
|
||||
|
78403N
|
78403N
78403-CY000 Inter Lock-Fuel Filler0505--01 ~ 0601--01; W |
78403-CY000 |
US $99.65 |
||
|
78403N
|
78403N
78403-CY010 Inter Lock-Fuel Filler0505--01 ~ 0601--01; *W.(20S+20RS+20RX) |
78403-CY010 |
US $127.15 |
||
|
78822
|
78822
78821CY000 Cable Assy-Fuel Opener0505--01 ~ 0601--01; W |
78821CY000 |
US $79.34 |
||
|
78822
|
78822
78822-CY000 Cable Assy-Fuel Opener0505--01 ~ 0601--01; W |
78822-CY000 |
US $54.58 |
||
|
78822+A
|
78822+A
78822-CY000 Cable Assy-Fuel Opener0505--01 ~ 0601--01; W |
78822-CY000 |
US $54.58 |
||
|
78826
|
78826
78827ED00A Lock&rod Assy-Fuel Lid0505--01 ~ 0601--01; W |
78827ED00A |
US $26.78 |
||
|
90456V
|
90456V
90456-CY200 Stud-Ball0505--01 ~ 0601--01; *W |
90456-CY200 |
from US $6.91 |
||
|
90500
|
90500
90500WL000 Lock & Remote Control Assy-Tail Gate0505--01 ~ 0601--01; *W.(20S+20RS+20RX) |
90500WL000 |
US $358.42 |
||
|
90502
|
90502
90502-CY000 Lock Assy-Back Door0505--01 ~ 0601--01; W.(20S+20RS+20RX) |
90502-CY000 |
US $125.57 |
||
|
90502
|
90502
0143300151 SCREW0505--01 ~ 0601--01; W |
0143300151 |
US $3.06 |
||
|
90502A
|
90502A
0143300151 SCREW0505--01 ~ 0601--01; W |
0143300151 |
US $3.06 |
||
|
90503A
|
90503A
01125N6011 Bolt0505--01 ~ 0601--01; *W |
01125N6011 |
from US $2.21 |
||
|
90504U
|
90504U
28450CY100 Control-Remote, Back Door0505--01 ~ 0601--01; *W |
28450CY100 |
US $729.24 |
||
|
90508C
|
90508C
01456-00451 SCREW0505--01 ~ 0601--01; *W |
01456-00451 |
from US $0.28 |
||
|
90508C
|
90508C
01456-00451 SCREW0505--01 ~ 0601--01; *W |
01456-00451 |
from US $0.28 |
||
|
90510E
|
90510E
90807-CY01A Clip0505--01 ~ 0601--01; *W |
90807-CY01A |
US $0.86 |
||
|
90510E
|
90510E
90807CY01B Clip0505--01 ~ 0601--01; *W |
90807CY01B |
US $0.86 |
||
|
90510EA
|
90510EA
90807CY01B Clip0505--01 ~ 0601--01; *W |
90807CY01B |
US $0.86 |
||
|
90524A
|
90524A
82586-CY02A Screw0505--01 ~ 0601--01; *W |
82586-CY02A |
US $5.76 |
||
|
90556
|
90556
90452-CY200 Rod-Auto Door Lock0505--01 ~ 0601--01; *W |
90452-CY200 |
US $10.66 |
||
|
90570
|
90570
90570-8H300 Striker-Back Door Lock0505--01 ~ 0601--01; W |
90570-8H300 |
US $17.71 |
||
|
90570
|
90570
905708H30A Striker-Back Door Lock0612--01 ~ 0712--01; W |
905708H30A |
from US $17.71 |
||
|
90930E
|
90930E
01281-00112
GROMMET-SCREW
0505--01 ~ 0601--01; *W |
01281-00112 |
— | ||
| replacement | |||||
|
90930E
|
90930E
0128101231 GROMMET-SCREW0505--01 ~ 0601--01; *W |
0128101231 |
US $4.16 |
||
|
90930E
|
90930E
01281-00112
GROMMET-SCREW
0505--01 ~ 0601--01; *W |
01281-00112 |
— | ||
| replacement | |||||
|
90930E
|
90930E
0128101231 GROMMET-SCREW0505--01 ~ 0601--01; *W |
0128101231 |
US $4.16 |
||
|
98930M
|
98930M
98930CY100 Drive Assy-Auto Back Door0505--01 ~ 0601--01; *W |
98930CY100 |
US $931.73 |
||
|
98970M
|
98970M
98970-CY100 Sensor Assy-Auto Back Door, Rh0505--01 ~ 0601--01; *W |
98970-CY100 |
US $252 |
||
|
98971M
|
98971M
98971-CY100 Sensor Assy-Auto Back Door, Lh0505--01 ~ 0601--01; *W |
98971-CY100 |
US $252 |
||
