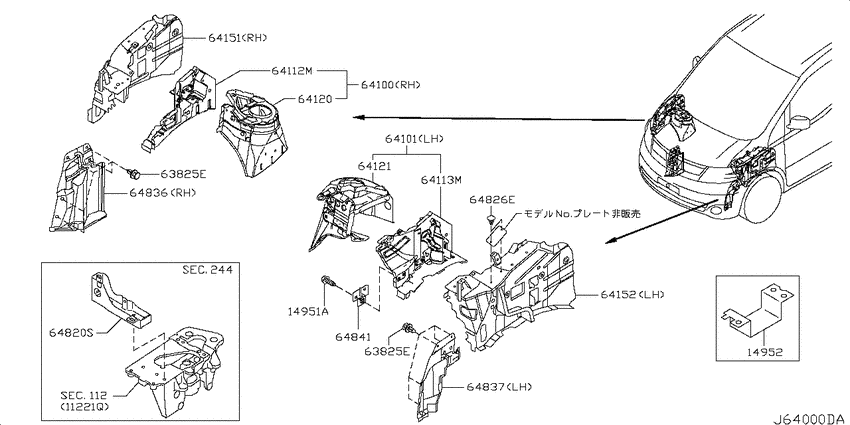

Hood ledge & fitting (2005-05-01 ~ 2006-01-01; ﾌｰﾄﾞﾘｯｼﾞ; W) Diagram Nissan SERENA
- Year
- 2005 - 2007
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20RX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
Engine & transmission mounting
112
|
||||
|
112
|
Engine & transmission mounting
112
|
||||
|
112
|
Engine & transmission mounting
112
|
||||
|
112
|
Engine & transmission mounting
112
|
||||
|
14951A
|
14951A
01125N6021 Bolt0601--01 ~ 0712--01; *W.(20S+20RS+20RX) |
01125N6021 |
US $1.61 |
||
|
14951A
|
14951A
01125-N6061 Bolt0505--01 ~ 0601--01; W |
01125-N6061 |
from US $1.37 |
||
|
14952
|
14952
64824-CY000 Bracket-Canister0505--01 ~ 0512--01; W |
64824-CY000 |
US $26.78 |
||
|
14952
|
14952
64824CY00B Bracket-Canister0512--01 ~ 0601--01; W |
64824CY00B |
US $26.78 |
||
|
244
|
Battery & battery mounting
244
|
||||
|
244
|
Battery & battery mounting
244
|
||||
|
244
|
Battery & battery mounting
244
|
||||
|
244
|
Battery & battery mounting
244
|
||||
|
63825E
|
63825E
0155305323
CLIP
0505--01 ~ 0601--01; W |
0155305323 |
— | ||
| replacement | |||||
|
63825E
|
63825E
01553-05933 CLIP0505--01 ~ 0601--01; W |
01553-05933 |
from US $0.65 |
||
|
63825E
|
63825E
0155305323
CLIP
0505--01 ~ 0601--01; W |
0155305323 |
— | ||
| replacement | |||||
|
63825E
|
63825E
01553-05933 CLIP0505--01 ~ 0601--01; W |
01553-05933 |
from US $0.65 |
||
|
64100
|
64100
64100-CY000 Hoodledge Assy-Rh0505--01 ~ 0601--01; W |
64100-CY000 |
US $260.64 |
||
|
64100
|
64100
64100-CY00C Hoodledge Assy-Rh0604--01 ~ 0712--01; W.(20S+20RS+20RX+20G) |
64100-CY00C |
US $260.64 |
||
|
64100
|
64100
0165800511 GROMMET0505--01 ~ 0601--01; W |
0165800511 |
US $2.21 |
||
|
64100
|
64100
062122500P Plug-Front Floor0505--01 ~ 0601--01; W |
062122500P |
US $2.45 |
||
|
64100
|
64100
01658-00421 PLUG0505--01 ~ 0601--01; W |
01658-00421 |
US $0.86 |
||
|
64100
|
64100
0165801541 PLUG-RUBBER0505--01 ~ 0601--01; W |
0165801541 |
from US $1.26 |
||
|
64100
|
64100
0165801521 PLUG-RUBBER0505--01 ~ 0601--01; W |
0165801521 |
US $2.45 |
||
|
64100
|
64100
0165801521 PLUG-RUBBER0505--01 ~ 0601--01; W |
0165801521 |
US $2.45 |
||
|
64101
|
64101
64101-CY000 Hoodledge Assy-Lh0505--01 ~ 0601--01; W |
64101-CY000 |
US $260.64 |
||
|
64101
|
64101
64101CY00C Hoodledge Assy-Lh0604--01 ~ 0712--01; W.(20S+20RS+20RX+20G) |
64101CY00C |
US $260.64 |
||
|
64101
|
64101
74816AL500 Plug0505--01 ~ 0601--01; W |
74816AL500 |
US $1.93 |
||
|
64112M
|
64112M
F4110-CY000 Hoodledge-Upper, Rh0505--01 ~ 0601--01; W |
F4110-CY000 |
US $112.90 |
||
|
64112M
|
64112M
F4110CY00C Hoodledge-Upper, Rh0604--01 ~ 0712--01; W.(20S+20RS+20RX+20G) |
F4110CY00C |
US $112.90 |
||
|
64113M
|
64113M
F4111-CY000 Hoodledge-Upper, Lh0505--01 ~ 0601--01; W |
F4111-CY000 |
US $112.90 |
||
|
64113M
|
64113M
F4111CY00C Hoodledge-Upper, Lh0604--01 ~ 0712--01; W.(20S+20RS+20RX+20G) |
F4111CY00C |
US $112.90 |
||
|
64120
|
64120
64120-CY000 Housing-Front Strut, Rh0505--01 ~ 0601--01; W |
64120-CY000 |
US $125.86 |
||
|
64121
|
64121
64121-CY000 Housing-Front Strut, Lh0505--01 ~ 0601--01; W |
64121-CY000 |
US $125.86 |
||
|
64151
|
64151
F4180-CY000 Reinforcement-Hoodledge, Rh0505--01 ~ 0601--01; W |
F4180-CY000 |
US $110.30 |
||
|
64151
|
64151
F4180CY00C Reinforcement-Hoodledge, Rh0604--01 ~ 0712--01; W.(20S+20RS+20RX+20G) |
F4180CY00C |
US $110.30 |
||
|
64152
|
64152
F4181-CY000 Reinforcement-Hoodledge, Lh0505--01 ~ 0601--01; W |
F4181-CY000 |
US $110.30 |
||
|
64152
|
64152
F4181CY00C Reinforcement-Hoodledge, Lh0604--01 ~ 0712--01; W.(20S+20RS+20RX+20G) |
F4181CY00C |
US $110.30 |
||
|
64820S
|
64820S
64820CY000 Bracket-Ecm Mounting0505--01 ~ 0601--01; W |
64820CY000 |
US $17.42 |
||
|
64826E
|
64826E
0155300731 CLIP0505--01 ~ 0601--01; W |
0155300731 |
from US $0.94 |
||
|
64836
|
64836
64838CY000 Cover-Splash, Hoodledge Rh0505--01 ~ 0601--01; W |
64838CY000 |
US $35.71 |
||
|
64837
|
64837
64839CY000 Cover-Splash, Hoodledge Lh0505--01 ~ 0601--01; W |
64839CY000 |
US $35.71 |
||
|
64841
|
64841
64880CY000 Bracket0505--01 ~ 0601--01; W |
64880CY000 |
US $10.66 |
||
