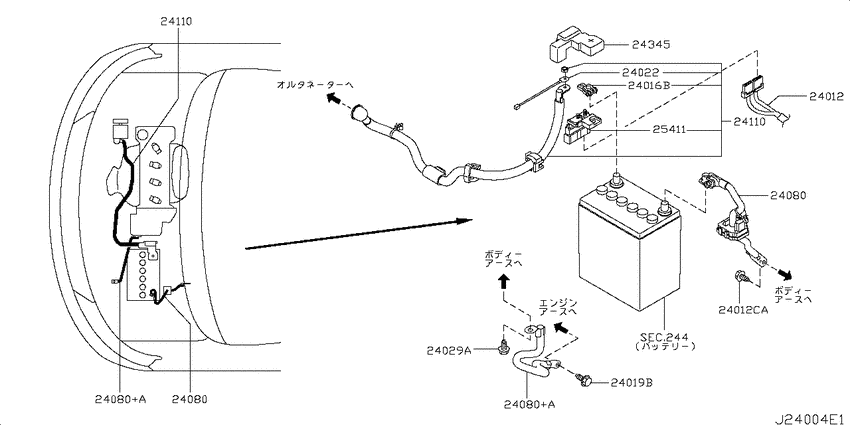

Wiring (2006-01-01 ~ 2007-12-01; ﾊﾞｯﾃﾘｰ; W) Diagram Nissan SERENA
- Year
- 2005 - 2007
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20RX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24012
|
24012
24012-CY00A Harness Assy-Engine Room0601--01 ~ 0712--01; W.2WD.(20S+20RS+20RX+20G) |
24012-CY00A |
US $2,520 |
||
|
24012
|
24012
24012-CY00B Harness Assy-Engine Room0601--01 ~ 0712--01; *W.2WD.(20S+20RS+20RX+20G) |
24012-CY00B |
US $2,520 |
||
|
24012
|
24012
24012-CY02A Harness Assy-Engine Room0601--01 ~ 0712--01; *W.2WD.(20S+20RS+20RX+20G) |
24012-CY02A |
US $2,324 |
||
|
24012
|
24012
24012-CY02B Harness Assy-Engine Room0601--01 ~ 0712--01; *W.2WD.(20S+20RS+20RX+20G) |
24012-CY02B |
US $2,324 |
||
|
24012
|
24012
24012-CY200 Harness Assy-Engine Room0505--01 ~ 0601--01; W.2WD |
24012-CY200 |
US $2,324 |
||
|
24012
|
24012
24012CY202 Harness Assy-Engine Room0505--01 ~ 0601--01; *W.2WD |
24012CY202 |
US $2,324 |
||
|
24012
|
24012
24012-CY42A Harness Assy-Engine Room0611--01 ~ 0712--01; *W.2WD.(20S+20RS+20RX+20G) |
24012-CY42A |
US $2,324 |
||
|
24012
|
24012
24012-CY42B Harness Assy-Engine Room0611--01 ~ 0712--01; *W.2WD.(20S+20RS+20RX+20G) |
24012-CY42B |
US $2,324 |
||
|
24012
|
24012
0145600411 SCREW0505--01 ~ 0601--01; W |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0505--01 ~ 0601--01; W |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0505--01 ~ 0601--01; W |
0145600411 |
US $1.67 |
||
|
24012CA
|
24012CA
0145600411 SCREW0505--01 ~ 0601--01; W |
0145600411 |
US $1.67 |
||
|
24016B
|
24016B
243407F000 Connector Assy0505--01 ~ 0601--01; W |
243407F000 |
from US $9.56 |
||
|
24019B
|
24019B
01125N6011 Bolt0505--01 ~ 0601--01; W |
01125N6011 |
from US $2.21 |
||
|
24019B
|
24019B
01125N6011 Bolt0505--01 ~ 0601--01; W |
01125N6011 |
from US $2.21 |
||
|
24019B
|
24019B
01125N6011 Bolt0505--01 ~ 0601--01; W |
01125N6011 |
from US $2.21 |
||
|
24022
|
24022
24022-CY000 Wire Assy-Fusible Link0505--01 ~ 0601--01; *W |
24022-CY000 |
US $17.14 |
||
|
24029A
|
24029A
01125N0011 Bolt0505--01 ~ 0601--01; W |
01125N0011 |
US $2.45 |
||
|
24029A
|
24029A
01125-N8011 Bolt0505--01 ~ 0601--01; W |
01125-N8011 |
US $2.45 |
||
|
24080
|
24080
24080CY000 Cable Assy-Battery Earth0505--01 ~ 0601--01; W |
24080CY000 |
US $116.50 |
||
|
24080
|
24080
24080-CY100 Cable Assy-Battery Earth0505--01 ~ 0601--01; W |
24080-CY100 |
US $19.30 |
||
|
24080
|
24080
24080CY000 Cable Assy-Battery Earth0505--01 ~ 0601--01; W |
24080CY000 |
US $116.50 |
||
|
24080
|
24080
24080-CY100 Cable Assy-Battery Earth0505--01 ~ 0601--01; W |
24080-CY100 |
US $19.30 |
||
|
24080+A
|
24080+A
24080-CY100 Cable Assy-Battery Earth0505--01 ~ 0601--01; W |
24080-CY100 |
US $19.30 |
||
|
24080+A
|
24080+A
24080-CY100 Cable Assy-Battery Earth0505--01 ~ 0601--01; W |
24080-CY100 |
US $19.30 |
||
|
24110
|
24110
24110-CY000 Cable Assy-Battery To Starter Motor0601--01 ~ 0712--01; W |
24110-CY000 |
US $69.84 |
||
|
24110
|
24110
24110CY100 Cable Assy-Battery To Starter Motor0505--01 ~ 0601--01; W |
24110CY100 |
US $69.84 |
||
|
24110
|
24110
01125N6011 Bolt0505--01 ~ 0601--01; W |
01125N6011 |
from US $2.21 |
||
|
24110
|
24110
24110-CY000 Cable Assy-Battery To Starter Motor0601--01 ~ 0712--01; W |
24110-CY000 |
US $69.84 |
||
|
24110
|
24110
24110CY100 Cable Assy-Battery To Starter Motor0505--01 ~ 0601--01; W |
24110CY100 |
US $69.84 |
||
|
24110
|
24110
01125N6011 Bolt0505--01 ~ 0601--01; W |
01125N6011 |
from US $2.21 |
||
|
24345
|
24345
243457990A Cover-Connector0512--01 ~ 0601--01; W |
243457990A |
US $12.96 |
||
|
24345
|
24345
24345-79917 Cover-Connector0505--01 ~ 0512--01; W |
24345-79917 |
US $15.55 |
||
|
244
|
Battery & battery mounting
244
|
||||
|
244
|
Battery & battery mounting
244
|
||||
|
244
|
Battery & battery mounting
244
|
||||
|
244
|
Battery & battery mounting
244
|
||||
|
25411
|
25411
24380-79918 Holder-Fusible Link0505--01 ~ 0601--01; W |
24380-79918 |
US $40.32 |
||
