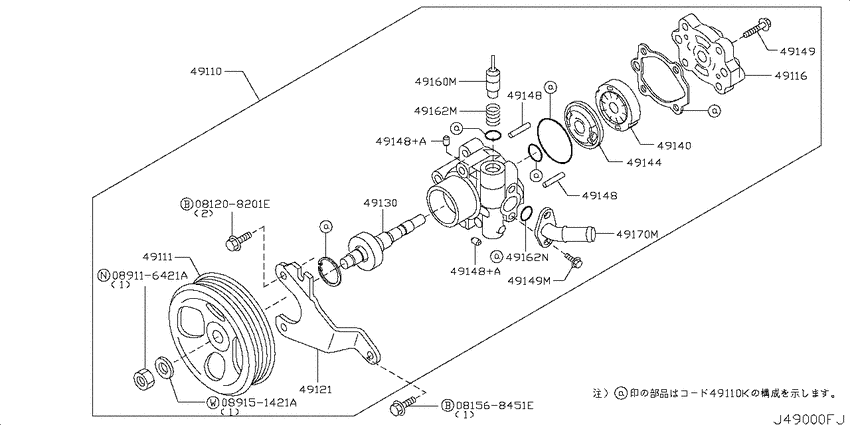

Power steering pump (2006-11-01 ~ ; 2WDHICAS.VQ35HR) Diagram Nissan SKYLINE
- Year
- 2006 - 2012
- Sales region
- Japan
- Engine
- VQ35HR
- drive
- 2WDHICAS
- transmission
- AT.F5
- grade
- 350GTSP
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081568451E
|
081568451E
081568451E
ﾎﾞﾙﾄ
|
081568451E |
— | ||
|
089116421A
|
089116421A
089116421A Nut |
089116421A |
US $3.06 |
||
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
49110
|
49110
49110-JK010 Pump Assy-Power Steering0611--01 ~ 0712--01; 2WDHICAS.VQ35HR |
49110-JK010 |
US $1,071.91 |
||
|
49110
|
49110
49110-JK01A Pump Assy-Power Steering0712--01 ~ ; 2WDHICAS.VQ35HR |
49110-JK01A |
US $1,071.91 |
||
|
49110
|
49110
49591-JK025 Seal Kit-Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49591-JK025 |
US $14.83 |
||
|
49110K
|
49110K
49591-JK025 Seal Kit-Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49591-JK025 |
US $14.83 |
||
|
49111
|
49111
49132-EA210 Pulley-Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49132-EA210 |
from US $97.78 |
||
|
49116
|
49116
49116-AE000 Cover-Rear, Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49116-AE000 |
US $41.62 |
||
|
49121
|
49121
49121-JK01A Bracket Assy-Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49121-JK01A |
US $23.18 |
||
|
49130
|
49130
49130-4P100 Shaft-Drive, Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49130-4P100 |
from US $45.79 |
||
|
49140
|
49140
49140-AR000 Rotor & Camring Set-Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49140-AR000 |
US $143.57 |
||
|
49144
|
49144
49144-AR000 Plate-Side, Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49144-AR000 |
US $41.62 |
||
|
49148
|
49148
49148-40U00 Pin-Camring, Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49148-40U00 |
US $3.31 |
||
|
49148
|
49148
49148-03U00 Pin-Camring, Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49148-03U00 |
US $3.17 |
||
|
49148
|
49148
49148-40U00 Pin-Camring, Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49148-40U00 |
US $3.31 |
||
|
49148
|
49148
49148-03U00 Pin-Camring, Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49148-03U00 |
US $3.17 |
||
|
49148+A
|
49148+A
49148-03U00 Pin-Camring, Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49148-03U00 |
US $3.17 |
||
|
49148+A
|
49148+A
49148-03U00 Pin-Camring, Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49148-03U00 |
US $3.17 |
||
|
49149
|
49149
49149-2U200 Bolt-Bracket, Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49149-2U200 |
US $4.18 |
||
|
49149
|
49149
49164-63U01 Bolt-Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49164-63U01 |
US $3.46 |
||
|
49149M
|
49149M
49164-63U01 Bolt-Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49164-63U01 |
US $3.46 |
||
|
49160M
|
49160M
49165-JK01A Valve Assy-Flow Control0611--01 ~ ; 2WDHICAS.VQ35HR |
49165-JK01A |
US $57.60 |
||
|
49162M
|
49162M
49167-JK01A Spring-Flow Control Valve0611--01 ~ ; 2WDHICAS.VQ35HR |
49167-JK01A |
US $10.22 |
||
|
49162N
|
49162N
4916226E00 SEAL-INLET CONNECTOR0611--01 ~ ; 2WDHICAS.VQ35HR |
4916226E00 |
from US $1.65 |
||
|
49170M
|
49170M
49161-JK02A Connector Assy-Power Steering Pump0611--01 ~ ; 2WDHICAS.VQ35HR |
49161-JK02A |
US $50.69 |
