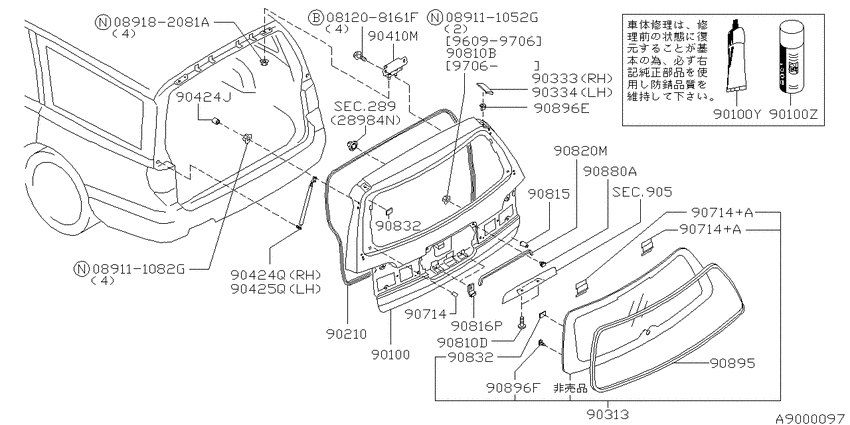

Back door panel & fitting (1998-08-01 ~ 1999-08-01; W) Diagram Nissan STAGEA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- RB20DE
- drive
- 2WD
- transmission
- AT
- grade
- 20G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208161F
|
081208161F
081208161F
Bolt-hexagon
|
081208161F |
— | ||
|
089111052G
|
089111052G
089111052G Nut |
089111052G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089182081A
|
089182081A
089182081A NUTHEX |
089182081A |
from US $0.57 |
||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
90100
|
90100
90100-0V030 Door-Back9708--01 ~ 9808--01; W |
90100-0V030 |
US $1,736 |
||
|
90100
|
90100
K0100-0V030 Door-Back9808--01 ~ 9908--01; W.(RB20DE+RB25DE) +W.25TXF |
K0100-0V030 |
US $1,736 |
||
|
90100
|
90100
K0100-0V7MM Door-Back9808--01 ~ 9908--01; *W.(RB20DE+RB25DE) +*W.25TXF; ｴｱｽﾎﾟｲﾗ- ｼﾖｳ |
K0100-0V7MM |
US $1,736 |
||
|
90100
|
90100
KA360-16570
Paint Sealer
9708--01 ~ 9808--01; W; [K504] |
KA360-16570 |
— | ||
|
90100
|
90100
KA390-18090
Metal Keep Wax
9708--01 ~ 9808--01; W; [K504] |
KA390-18090 |
— | ||
|
90100Y
|
90100Y
KA360-16570
Paint Sealer
9708--01 ~ 9808--01; W; [K504] |
KA360-16570 |
— | ||
|
90100Z
|
90100Z
KA390-18090
Metal Keep Wax
9708--01 ~ 9808--01; W; [K504] |
KA390-18090 |
— | ||
|
90210
|
90210
90830-0V000 Weatherstrip-Back Door9708--01 ~ 9808--01; W |
90830-0V000 |
US $217.44 |
||
|
90210
|
90210
90830-0V001 Weatherstrip-Back Door9708--01 ~ 9808--01; W |
90830-0V001 |
US $217.44 |
||
|
90313
|
90313
90300-0V000 Glass-Back Door Window9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF); ｸﾞﾘ-ﾝ ｶﾞﾗｽ[D608] |
90300-0V000 |
US $531 |
||
|
90313
|
90313
903000V005 Glass-Back Door Window9708--01 ~ 9808--01; '*W.RB20DE +*W.(25G+25X+25GF+25XF+25TXF); ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ ｼﾖｳ[D608] |
903000V005 |
US $593.30 |
||
|
90313
|
90313
90300-0V010 Glass-Back Door Window9708--01 ~ 9808--01; '*W.RB20DE +*W.(25G+25X+25GF+25XF+25TXF); ﾌﾟﾗｲﾊﾞｼｰ ｶﾞﾗｽ ｼﾖｳ[D608] |
90300-0V010 |
US $838.27 |
||
|
90313
|
90313
90300-0V015 Glass-Back Door Window9708--01 ~ 9808--01; '*W.RB20DE +*W.(25G+25X+25GF+25XF+25TXF); 'ﾌﾟﾗｲﾊﾞｼ- ｶﾞﾗｽ +ﾅﾋﾞｹﾞ -ｼﾖﾝｼｽﾃﾑ ｼﾖｳ[D608] |
90300-0V015 |
US $901.99 |
||
|
90313
|
90313
90300-0V710 Glass-Back Door Window9907--01 ~ 9908--01; *W.RB20DE +*W.(25X+25XF); ﾌﾟﾗｲﾊﾞｼｰ ｶﾞﾗｽ ｼﾖｳ[D608] |
90300-0V710 |
US $838.27 |
||
|
90313
|
90313
903000V715 Glass-Back Door Window9907--01 ~ 9908--01; *W.RB20DE +*W.(25X+25XF); [D608] |
903000V715 |
US $901.99 |
||
|
90333
|
90333
90850-0V000 Moulding-Back Door Side, Rh9708--01 ~ 9808--01; W |
90850-0V000 |
US $20.16 |
||
|
90334
|
90334
90851-0V000 Moulding-Back Door Side, Lh9708--01 ~ 9808--01; W |
90851-0V000 |
US $20.16 |
||
|
90410M
|
90410M
90400-0V000 Hinge Assy-Back Door9708--01 ~ 9808--01; W |
90400-0V000 |
US $41.76 |
||
|
90424J
|
90424J
904540V000 Cover-Back Door Stay9708--01 ~ 9808--01; W |
904540V000 |
US $4.46 |
||
|
90424Q
|
90424Q
90450-0V025 Stay Assy-Back Door, Rh9708--01 ~ 9711--01; W.RB20DE +W.(25G+25GF+RSF+25RS) |
90450-0V025 |
US $277.92 |
||
|
90424Q
|
90424Q
90450-0V026 Stay Assy-Back Door, Rh9711--01 ~ 9807--01; *W.(20G+25G+25GF+RSF+25RS+25RSF); ﾊﾞﾂｸﾄﾞｱ ｵｰﾄ ｸﾛｰｼﾞﾔｰ |
90450-0V026 |
US $277.92 |
||
|
90424Q
|
90424Q
90450-0V027 Stay Assy-Back Door, Rh9808--01 ~ 9902--01; W.(20G+25RS+25RSF) |
90450-0V027 |
US $253.44 |
||
|
90424Q
|
90424Q
90450-0V028 Stay Assy-Back Door, Rh9807--01 ~ 9808--01; *W.(20G+25G+25GF+RSF+25RS+25RSF); ﾊﾞﾂｸﾄﾞｱ ｵｰﾄ ｸﾛｰｼﾞﾔｰ |
90450-0V028 |
US $277.92 |
||
|
90424Q
|
90424Q
90450-0V725 Stay Assy-Back Door, Rh9902--01 ~ ; W.(20G+25RS+25RSF) |
90450-0V725 |
US $277.92 |
||
|
90424Q
|
90424Q
90450-0V726 Stay Assy-Back Door, Rh9908--01 ~ ; *W.(20G+25RS+25RSF) |
90450-0V726 |
US $277.92 |
||
|
90425Q
|
90425Q
90451-0V025 Stay Assy-Back Door, Lh9708--01 ~ 9711--01; W.RB20DE +W.(25G+25GF+RSF+25RS) |
90451-0V025 |
US $277.92 |
||
|
90425Q
|
90425Q
90451-0V026 Stay Assy-Back Door, Lh9711--01 ~ 9807--01; *W.(20G+25G+25GF+RSF+25RS+25RSF); ﾊﾞﾂｸﾄﾞｱ ｵｰﾄ ｸﾛｰｼﾞﾔｰ |
90451-0V026 |
US $277.92 |
||
|
90425Q
|
90425Q
90451-0V027 Stay Assy-Back Door, Lh9808--01 ~ 9902--01; W.(20G+25RS+25RSF) |
90451-0V027 |
US $253.44 |
||
|
90425Q
|
90425Q
90451-0V028 Stay Assy-Back Door, Lh9807--01 ~ 9808--01; *W.(20G+25G+25GF+RSF+25RS+25RSF); ﾊﾞﾂｸﾄﾞｱ ｵｰﾄ ｸﾛｰｼﾞﾔｰ |
90451-0V028 |
US $277.92 |
||
|
90425Q
|
90425Q
90451-0V725 Stay Assy-Back Door, Lh9902--01 ~ ; W.(20G+25RS+25RSF) |
90451-0V725 |
US $277.92 |
||
|
90425Q
|
90425Q
90451-0V726 Stay Assy-Back Door, Lh9908--01 ~ ; *W.(20G+25RS+25RSF) |
90451-0V726 |
US $277.92 |
||
|
905
|
Back door lock & handle
905
|
||||
|
905
|
Back door lock & handle
905
|
||||
|
905
|
Back door lock & handle
905
|
||||
|
90714
|
90714
903560V000 Spacer-Glass A9708--01 ~ 9808--01; '*W.RB20DE +*W.(25G+25X+25GF+25XF+25TXF); !ﾌﾟﾗｲﾊﾞｼ- ｶﾞﾗｽ +ﾅﾋﾞｹﾞ -ｼﾖﾝｼｽﾃﾑ ｼﾖｳ |
903560V000 |
US $3.02 |
||
|
90714
|
90714
9035651C00 Spacer-Glass A9708--01 ~ 9808--01; W; [D209] |
9035651C00 |
US $1.73 |
||
|
90714
|
90714
903560V000 Spacer-Glass A9708--01 ~ 9808--01; W |
903560V000 |
US $3.02 |
||
|
90714+A
|
90714+A
903560V000 Spacer-Glass A9708--01 ~ 9808--01; W |
903560V000 |
US $3.02 |
||
|
90714+A
|
90714+A
903560V000 Spacer-Glass A9708--01 ~ 9808--01; W |
903560V000 |
US $3.02 |
||
|
90810B
|
90810B
0122100111 NUT9708--01 ~ 9808--01; W |
0122100111 |
US $1.93 |
||
|
90810D
|
90810D
01414-00101 SCREW9708--01 ~ 9808--01; W |
01414-00101 |
US $1.01 |
||
|
90815
|
90815
65823Q0100 Bumper-Hood9708--01 ~ 9808--01; W |
65823Q0100 |
US $5.96 |
||
|
90816P
|
90816P
962290M000 Holder-Rear Licence Plate9708--01 ~ 9808--01; W |
962290M000 |
from US $3.52 |
||
|
90820M
|
90820M
908200V000
Seal-Back Door, Upper
9708--01 ~ 9808--01; W |
908200V000 |
— | ||
|
90832
|
90832
7978265F00 Fastener-Back Door Moulding9708--01 ~ 9808--01; W |
7978265F00 |
US $2.03 |
||
|
90832
|
90832
7978265F00 Fastener-Back Door Moulding9708--01 ~ 9808--01; W |
7978265F00 |
US $2.03 |
||
|
90880A
|
90880A
01151-00421 BOLT9708--01 ~ 9808--01; W |
01151-00421 |
US $5.90 |
||
|
90895
|
90895
903860V000
Dam Rubber
9708--01 ~ 9808--01; W; [D608] |
903860V000 |
— | ||
|
90896E
|
90896E
7684871S00 Grommet9708--01 ~ 9808--01; W |
7684871S00 |
from US $1.30 |
||
|
90896F
|
90896F
833191N520 Clip9708--01 ~ 9808--01; W |
833191N520 |
US $2.45 |
||
