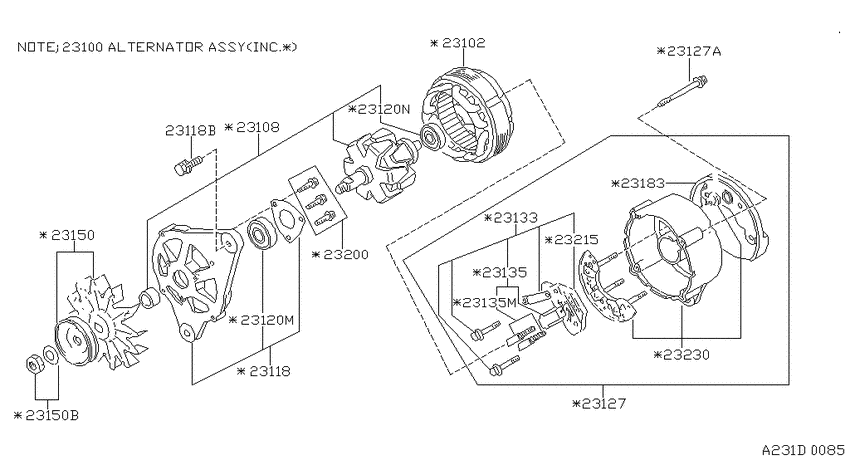

Alternator (1981-08-01 ~ ; CA20E) Diagram Nissan STANZA
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- CA20E
- transmission
- MT
- body
- 5HB
- trim lvl
- SGL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-D1700
Generator
1983-09-01 ~ 1983-10-01; CA20E; HITACHI |
23100-D1700 |
— | ||
|
23100
|
23100
23100-D3300
Generator
1983-10-01 ~ ; CA20E; 12V-60A |
23100-D3300 |
— | ||
|
23100
|
23100
23164-H0100 Bolt1983-09-01 ~ 1985-06-01; CA20E; BAR TO ALT FIX |
23164-H0100 |
US $1.73 |
||
| replacement | |||||
|
23100
|
23100
081208201F
Bolt-hexagon
1983-09-01 ~ 1985-06-01; CA20E; BAR TO ALT FIX |
081208201F |
— | ||
|
23100
|
23100
23164-W4600 Bolt1985-06-01 ~ ; CA20E; , |
23164-W4600 |
US $1.73 |
||
|
23100
|
23100
11058-H1000 Washer-Plain1983-09-01 ~ ; CA20E; FRONT |
11058-H1000 |
US $3.31 |
||
|
23102
|
23102
23102-01F00 Stator Assy1983-10-01 ~ ; CA20E; HITACHI |
23102-01F00 |
US $380.90 |
||
|
23102
|
23102
23102-D0200 Stator Assy1983-09-01 ~ 1983-10-01; CA20E; HITACHI |
23102-D0200 |
US $424.80 |
||
|
23108
|
23108
23108-D0200 Rotor Assy1983-09-01 ~ 1983-10-01; CA20E; HITACHI |
23108-D0200 |
US $529.58 |
||
|
23108
|
23108
23108-D3300
Rotor Assy
1983-10-01 ~ ; CA20E; HITACHI |
23108-D3300 |
— | ||
|
23118
|
23118
23118-D0200 Cover Assy-Front1983-09-01 ~ ; CA20E; HITACHI |
23118-D0200 |
US $146.88 |
||
|
23118
|
23118
23164-H0100 Bolt1983-09-01 ~ ; CA20E; , |
23164-H0100 |
US $1.73 |
||
| replacement | |||||
|
23118
|
23118
081208201F
Bolt-hexagon
1983-09-01 ~ ; CA20E; , |
081208201F |
— | ||
|
23118B
|
23118B
23164-H0100 Bolt1983-09-01 ~ ; CA20E; , |
23164-H0100 |
US $1.73 |
||
| replacement | |||||
|
23118B
|
23118B
081208201F
Bolt-hexagon
1983-09-01 ~ ; CA20E; , |
081208201F |
— | ||
|
23120M
|
23120M
23120-P4500 Bearing-Ball1983-09-01 ~ ; CA20E; , |
23120-P4500 |
US $23.18 |
||
|
23120N
|
23120N
23120-14801 Bearing-Ball1983-10-01 ~ ; CA20E; HITACHI |
23120-14801 |
US $17.57 |
||
|
23120N
|
23120N
23120-21000
Bearing-Ball
1983-09-01 ~ ; CA20E; , |
23120-21000 |
— | ||
|
23127
|
23127
23127-06S00
Cover Assy-Rear
1983-10-01 ~ ; CA20E; HITACHI |
23127-06S00 |
— | ||
|
23127
|
23127
23127-D1700
Cover Assy-Rear
1983-09-01 ~ 1983-10-01; CA20E; HITACHI |
23127-D1700 |
— | ||
|
23127
|
23127
23131-W1700 Bolt-Through1983-09-01 ~ ; CA20E; , |
23131-W1700 |
US $4.42 |
||
|
23127A
|
23127A
23131-W1700 Bolt-Through1983-09-01 ~ ; CA20E; , |
23131-W1700 |
US $4.42 |
||
|
23133
|
23133
23133-06S00 Holder Assy-Brush1983-10-01 ~ ; CA20E; HITACHI |
23133-06S00 |
US $457.37 |
||
|
23133
|
23133
23133-D0200 Holder Assy-Brush1983-09-01 ~ 1983-10-01; CA20E; HITACHI |
23133-D0200 |
US $419.14 |
||
|
23135
|
23135
23135-06S00 Brush Assy1983-10-01 ~ ; CA20E; HITACHI |
23135-06S00 |
US $10.80 |
||
|
23135
|
23135
23135-Q4601 Brush-E1983-09-01 ~ 1983-10-01; CA20E; HITACHI |
23135-Q4601 |
US $30.24 |
||
|
23135
|
23135
23142-06S00 Brush-F1983-10-01 ~ ; CA20E; HITACHI |
23142-06S00 |
US $7.63 |
||
|
23135
|
23135
23142-Q4601 Brush Assy1983-09-01 ~ 1983-10-01; CA20E; , |
23142-Q4601 |
US $5.18 |
||
|
23135M
|
23135M
23142-06S00 Brush-F1983-10-01 ~ ; CA20E; HITACHI |
23142-06S00 |
US $7.63 |
||
|
23135M
|
23135M
23142-Q4601 Brush Assy1983-09-01 ~ 1983-10-01; CA20E; , |
23142-Q4601 |
US $5.18 |
||
|
23150
|
23150
23150-D0200 Pulley Assy1983-09-01 ~ ; CA20E; HITACHI |
23150-D0200 |
US $55.87 |
||
|
23150
|
23150
23153-Q4601 Nut Assy-Pulley1983-09-01 ~ ; CA20E; HITACHI |
23153-Q4601 |
US $4.18 |
||
|
23150B
|
23150B
23153-Q4601 Nut Assy-Pulley1983-09-01 ~ ; CA20E; HITACHI |
23153-Q4601 |
US $4.18 |
||
|
23183
|
23183
23177-D1700 Protector-Rear Cover1983-09-01 ~ ; CA20E; HITACHI |
23177-D1700 |
US $86.69 |
||
|
23200
|
23200
23200-Q4601 Screw Set1983-09-01 ~ ; CA20E; , |
23200-Q4601 |
US $4.18 |
||
|
23215
|
23215
23215-Q4602 Regulator Assy-Ic1983-09-01 ~ ; CA20E; HITACHI |
23215-Q4602 |
US $321.43 |
||
|
23230
|
23230
2323006S00 Diode Assy1983-10-01 ~ ; CA20E; HITACHI |
2323006S00 |
US $320.02 |
||
|
23230
|
23230
23230Q4601 Diode Assy1983-09-01 ~ 1983-10-01; CA20E; , |
23230Q4601 |
US $207.36 |
||
