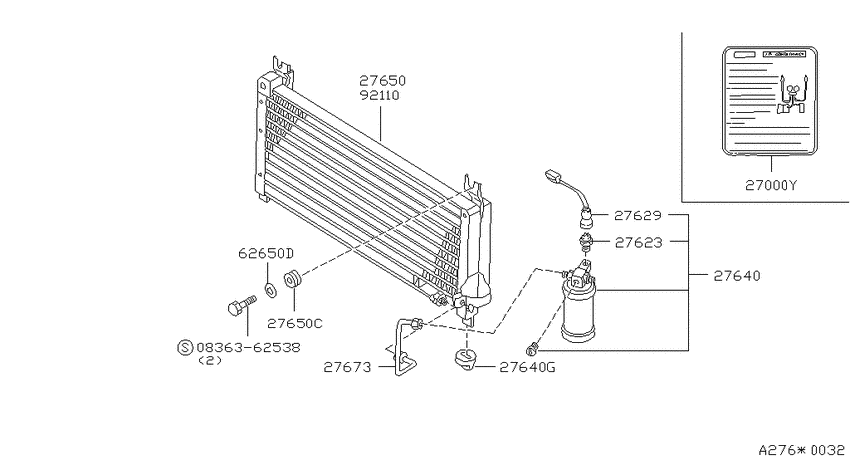

Condensor, liquid tank (1981-08-01 ~ ; ALL) Diagram Nissan STANZA
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- CA20E
- transmission
- MT
- body
- 5HB
- trim lvl
- SGL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836362538
|
0836362538
08363-62538
SCREWMACHINE
|
08363-62538 |
— | ||
|
27000Y
|
27000Y
27003-03W11
Label-Caution, Air Conditioner
1981-08-01 ~ 1985-05-01; *S +*5HB +*3HB; , |
27003-03W11 |
— | ||
|
27000Y
|
27000Y
27090-03W11
Label-Caution, Air Conditioner
1985-05-01 ~ ; *S +*5HB +*3HB; , |
27090-03W11 |
— | ||
|
27623
|
27623
92225W3400 Switch Assy-Pressure1981-08-01 ~ ; *S +*5HB +*3HB; LOW PRESSURE |
92225W3400 |
US $22.32 |
||
|
27629
|
27629
92136-01A00 Harness-Air Conditioner1981-10-01 ~ ; *S +*5HB +*3HB; , |
92136-01A00 |
US $9.94 |
||
|
27629
|
27629
92136-01A00 Harness-Air Conditioner1981-10-01 ~ ; *S +*5HB +*3HB; , |
92136-01A00 |
US $9.94 |
||
|
27629
|
27629
92136-01A00 Harness-Air Conditioner1981-12-01 ~ ; *S +*5HB +*3HB; , |
92136-01A00 |
US $9.94 |
||
|
27629
|
27629
24020-D0100 Harness-Air Conditioner1981-08-01 ~ 1981-11-01; *S +*5HB +*3HB; F/AIR CON |
24020-D0100 |
US $44.93 |
||
|
27629
|
27629
24020-D0102 Harness-Air Conditioner1981-11-01 ~ ; *S +*5HB +*3HB; F/AIR CON |
24020-D0102 |
US $51.55 |
||
|
27629
|
27629
24020-D0110
Harness-Air Conditioner
1981-08-01 ~ 1981-11-01; *S +*5HB +*3HB; FOR A/C & POWER STRG |
24020-D0110 |
— | ||
|
27629
|
27629
24020-D0301
Harness-Air Conditioner
1981-11-01 ~ 1982-04-01; *S +*5HB +*3HB; $FOR A/C & POWER STRG S/# 24020-D0302 |
24020-D0301 |
— | ||
|
27629
|
27629
24020-D0302
Harness-Air Conditioner
1981-11-01 ~ 1982-04-01; *S +*5HB +*3HB; F/A/C & POWER STRG |
24020-D0302 |
— | ||
|
27640
|
27640
92130-D0101 Tank Assy-Liquid1981-08-01 ~ 1984-08-01; *S +*5HB +*3HB; NICHIRA |
92130-D0101 |
US $114.19 |
||
|
27640
|
27640
92130-D3400
Tank Assy-Liquid
1984-08-01 ~ ; *S +*5HB +*3HB; , |
92130-D3400 |
— | ||
|
27640
|
27640
92108-D0100 Mounting Rubber1981-08-01 ~ ; *S +*5HB +*3HB; F/LOWER |
92108-D0100 |
US $1.67 |
||
|
27640G
|
27640G
92108-D0100 Mounting Rubber1981-08-01 ~ ; *S +*5HB +*3HB; F/LOWER |
92108-D0100 |
US $1.67 |
||
|
27650
|
27650
92100-D3400
Condenser Assy
1984-08-01 ~ ; *S +*5HB +*3HB; , |
92100-D3400 |
— | ||
|
27650
|
27650
21506-D0100
Mounting Rubber
1981-08-01 ~ ; *S +*5HB +*3HB; , |
21506-D0100 |
— | ||
|
27650C
|
27650C
21506-D0100
Mounting Rubber
1981-08-01 ~ ; *S +*5HB +*3HB; , |
21506-D0100 |
— | ||
|
27673
|
27673
J2440-D0102
Tube-Front Cooler, High
1981-08-01 ~ ; *S +*5HB +*3HB; , |
J2440-D0102 |
— | ||
|
62650D
|
62650D
01311-00011 WASHER-PLAIN1981-08-01 ~ ; *S +*5HB +*3HB; , |
01311-00011 |
US $1.58 |
||
|
92110
|
92110
92110-D1201
Condenser assy
1981-08-01 ~ 1984-08-01; *S +*5HB +*3HB; NICHIRA |
92110-D1201 |
— | ||
| replacement | |||||
|
92110
|
92110
92110-D1221
Condenser assy
1981-08-01 ~ 1984-08-01; *S +*5HB +*3HB; NICHIRA |
92110-D1221 |
— | ||
|
92110
|
92110
92110-D1202
Condenser assy
1984-08-01 ~ ; *S +*5HB +*3HB; , |
92110-D1202 |
— | ||
| replacement | |||||
|
92110
|
92110
92110-D1221
Condenser assy
1984-08-01 ~ ; *S +*5HB +*3HB; , |
92110-D1221 |
— | ||
