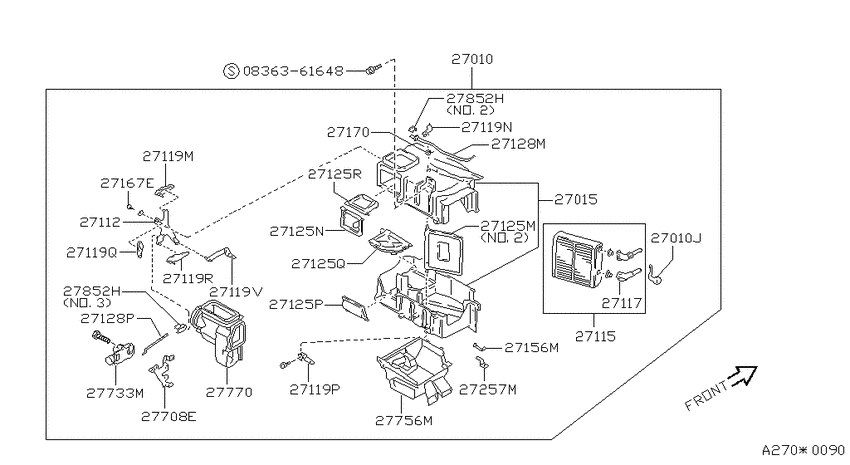

Heater & blower unit (1988-02-01 ~ ; HEATER UNIT; ALL) Diagram Nissan STANZA
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- transmission
- MT
- body
- S
- trim lvl
- GXE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836361648
|
0836361648
08363-61648
SCREW
|
08363-61648 |
— | ||
| replacement | |||||
|
0836361648
|
0836361648
083636162H SCREWMACHINE |
083636162H |
US $2.21 |
||
|
27010
|
27010
27110-65E10
HEATING UNIT ASSY-FRONT
1989-07-01 ~ 1989-12-01; S; , |
27110-65E10 |
— | ||
|
27010
|
27010
27110-65E11
HEATING UNIT ASSY-FRONT
1989-12-01 ~ 1991-06-01; S; , |
27110-65E11 |
— | ||
|
27010
|
27010
27110-65E20
HEATING UNIT ASSY-FRONT
1991-06-01 ~ ; S; , |
27110-65E20 |
— | ||
|
27010
|
27010
01456-00421 SCREW1989-07-01 ~ ; S; |
01456-00421 |
from US $0.57 |
||
|
27010
|
27010
27148-81L00
Support-Heater Core
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27148-81L00 |
— | ||
|
27010J
|
27010J
27148-81L00
Support-Heater Core
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27148-81L00 |
— | ||
|
27015
|
27015
27120-85E00 CASE ASSY-FRONT HEATER1989-07-01 ~ 1991-06-01; S; F/AIR CON-STD TYPE |
27120-85E00 |
US $98.50 |
||
|
27015
|
27015
27120-86E00
CASE ASSY-FRONT HEATER
1991-06-01 ~ ; S; F/AIR CON-STD TYPE |
27120-86E00 |
— | ||
|
27112
|
27112
27155-40F00
Link Assy-Side
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27155-40F00 |
— | ||
|
27115
|
27115
27140-65E20
CORE ASSY-FRONT HEATER
1991-06-01 ~ ; S; , |
27140-65E20 |
— | ||
| replacement | |||||
|
27115
|
27115
B7140-65E20
Core assy-front heater
1991-06-01 ~ ; S; , |
B7140-65E20 |
— | ||
|
27115
|
27115
27140-81L00
Core Assy-Front Heater
1989-07-01 ~ 1991-06-01; *S; F/AIR CON-STD TYPE |
27140-81L00 |
— | ||
| replacement | |||||
|
27115
|
27115
B7140-81L15
Core assy-front heater
1989-07-01 ~ 1991-06-01; *S; F/AIR CON-STD TYPE |
B7140-81L15 |
— | ||
|
27115
|
27115
27140-81L10
Core Assy-Front Heater
1989-07-01 ~ 1991-06-01; S; F/AIR CON-STD TYPE |
27140-81L10 |
— | ||
| replacement | |||||
|
27115
|
27115
B7140-81L15
Core assy-front heater
1989-07-01 ~ 1991-06-01; S; F/AIR CON-STD TYPE |
B7140-81L15 |
— | ||
|
27117
|
27117
92230-81L00
Cock Assy-Front Heater
1989-07-01 ~ ; S; , |
92230-81L00 |
— | ||
|
27119M
|
27119M
27167-40F00
Lever-Defroster
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27167-40F00 |
— | ||
|
27119N
|
27119N
27156-40F00
Lever-Air Mix Door
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27156-40F00 |
— | ||
|
27119P
|
27119P
27162-40F00
Lever-Air Mix Door
1989-07-01 ~ ; S; F/MIX DOOR F/AIR CON-STD TYPE |
27162-40F00 |
— | ||
|
27119Q
|
27119Q
27165-40F00
Lever-Ventilator
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27165-40F00 |
— | ||
|
27119R
|
27119R
27166-40F00
Lever-Ventilation, No2
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27166-40F00 |
— | ||
|
27119V
|
27119V
27168-51E00 LEVER-FOOT1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27168-51E00 |
US $6.77 |
||
|
27125M
|
27125M
27180-40F00
Door-Front Heater
1989-07-01 ~ ; S; <NO.2> F/MIX DOOR |
27180-40F00 |
— | ||
|
27125M
|
27125M
27245-85E00
DOOR-INTAKE BLOWER,FRONT
1989-07-01 ~ ; S; <NO.1> F/BLOWER |
27245-85E00 |
— | ||
|
27125N
|
27125N
27181-40F00
Door Assy-Ventilation
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27181-40F00 |
— | ||
|
27125P
|
27125P
27182-40F00
Door Assy-Ventilation
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27182-40F00 |
— | ||
|
27125Q
|
27125Q
27185-40F00
Door Assy-Foot
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27185-40F00 |
— | ||
|
27125R
|
27125R
27188-81L00
Door Assy-Defroster
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27188-81L00 |
— | ||
|
27128M
|
27128M
27157-40F00
Lever-Heater Cock
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27157-40F00 |
— | ||
|
27128P
|
27128P
27781-40F00
Rod-Actuator
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27781-40F00 |
— | ||
|
27156M
|
27156M
27156-S0100 Clamp-Cable1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27156-S0100 |
from US $0.98 |
||
|
27167E
|
27167E
27199-51E00 SCREW1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27199-51E00 |
US $0.86 |
||
|
27170
|
27170
27170-40F00
Spring-Mix
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27170-40F00 |
— | ||
|
27257M
|
27257M
27172-40F00
Seat
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27172-40F00 |
— | ||
|
27708E
|
27708E
27752-40F00
Bracket-Actuator
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27752-40F00 |
— | ||
|
27733M
|
27733M
27731-40F00
Actuator Assy-Mode
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27731-40F00 |
— | ||
|
27756M
|
27756M
27125-85E00
DUCT-FOOT
1989-07-01 ~ 1989-12-01; S; F/AIR CON-STD TYPE |
27125-85E00 |
— | ||
|
27756M
|
27756M
27125-85E01
AIR DUCT-OUTLET
1989-10-01 ~ 1989-12-01; *S; F/AIR CON-STD TYPE |
27125-85E01 |
— | ||
|
27756M
|
27756M
27125-85E02
DUCT-FOOT
1989-12-01 ~ ; S; , |
27125-85E02 |
— | ||
|
27770
|
27770
27135-85E00
DUCT ASSY-VENTILATOR
1989-07-01 ~ ; S; F/AIR CON-STD TYPE |
27135-85E00 |
— | ||
|
27770
|
27770
27850-89E00
DUCT-CENTER
1989-07-01 ~ ; S; NO2 |
27850-89E00 |
— | ||
|
27852H
|
27852H
27137-D4000 Holder-Rod1989-07-01 ~ ; S; <NO.2> F/AIR CON-STD TYPE |
27137-D4000 |
US $0.85 |
||
|
27852H
|
27852H
27141-53E00 HOLDER-ROD1989-07-01 ~ ; S; <NO.3> F/AIR CON-STD TYPE |
27141-53E00 |
US $3.94 |
||
|
27852H
|
27852H
27173-01P00 Clip1989-07-01 ~ ; S; <NO.1> |
27173-01P00 |
US $0.86 |
||
|
27852H
|
27852H
27137-D4000 Holder-Rod1989-07-01 ~ ; S; <NO.2> F/AIR CON-STD TYPE |
27137-D4000 |
US $0.85 |
||
|
27852H
|
27852H
27141-53E00 HOLDER-ROD1989-07-01 ~ ; S; <NO.3> F/AIR CON-STD TYPE |
27141-53E00 |
US $3.94 |
||
|
27852H
|
27852H
27173-01P00 Clip1989-07-01 ~ ; S; <NO.1> |
27173-01P00 |
US $0.86 |
||
