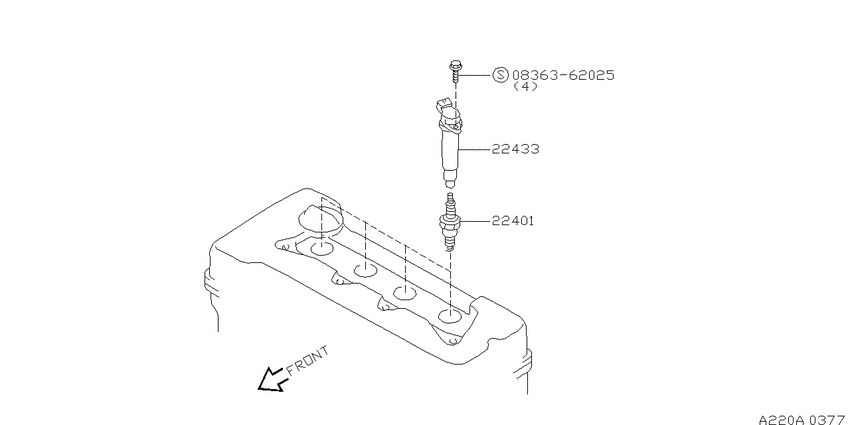

Ignition System (1998-10-01 ~ 2002-05-01; QG13DE) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG13DE
- drive
- 2WD
- transmission
- MT
- grade
- FE
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836362025
|
0836362025
08363-62025
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62025 |
— | ||
|
22401
|
22401
2240150Y04 Plug-Spark9810--01 ~ 9909--01; QG13DE; BKR4E-11 QG15DE,4WD[B512] |
2240150Y04 |
from US $3.02 |
||
|
22401
|
22401
2240150Y05 Plug-Spark9810--01 ~ 9909--01; QG13DE; BKR5E-11 QG15DE,4WD[B512] |
2240150Y05 |
from US $2.79 |
||
|
22401
|
22401
2240150Y06 Plug-Spark9810--01 ~ 9909--01; QG13DE; BKR6E-11 QG15DE,4WD[B512] |
2240150Y06 |
from US $3.39 |
||
|
22401
|
22401
2240150Y07 Plug-Spark9810--01 ~ 9909--01; QG13DE; BKR7E-11 QG15DE,4WD[B512] |
2240150Y07 |
from US $3.27 |
||
|
22433
|
22433
22448-4M500 Coil Assy-Ignition9810--01 ~ 0205--01; QG13DE |
22448-4M500 |
US $184.32 |
||
| replacement | |||||
|
22433
|
22433
224484M50A Coil Assy-Ignition9810--01 ~ 0205--01; QG13DE |
224484M50A |
from US $74.06 |
||
|
22433
|
22433
224486N015 Coil Assy-Ignition0205--01 ~ ; QG13DE |
224486N015 |
from US $75.28 |
||
|
22433
|
22433
22433-6N015 Coil Assy-Ignition0205--01 ~ ; QG13DE |
22433-6N015 |
US $136.68 |
||
