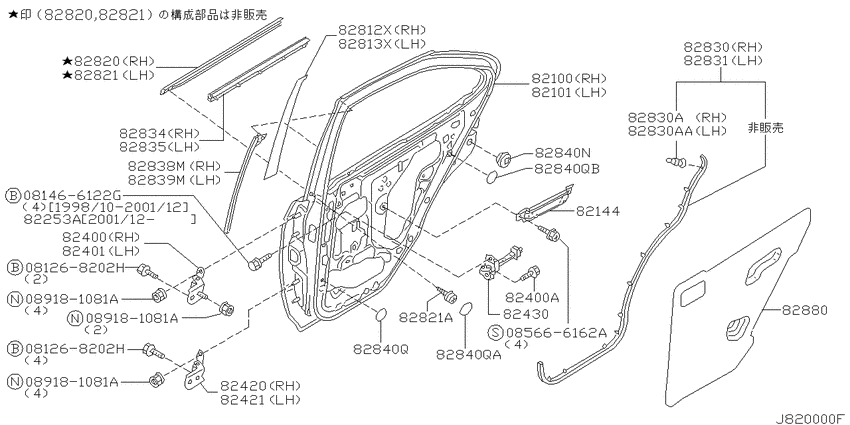

Rear door panel & fitting (1999-09-01 ~ 2002-05-01; S) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- S/S
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268202H
|
081268202H
08126-8202H Bolt-hexagon |
08126-8202H |
US $3.06 |
||
|
081268202H
|
081268202H
08126-8202H Bolt-hexagon |
08126-8202H |
US $3.06 |
||
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
085666162A
|
085666162A
085666162A SCREWTAPPING |
085666162A |
US $2.21 |
||
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
82100
|
82100
H21004M4CM Door-Rear, Rh9810--01 ~ 9909--01; 'S.QG15DE.S/S +S.(SR16VE+QG18DD) +S.EX/S |
H21004M4CM |
US $828.36 |
||
|
82101
|
82101
H21014M4CM Door-Rear, Lh9810--01 ~ 9909--01; 'S.QG15DE.S/S +S.(SR16VE+QG18DD) +S.EX/S |
H21014M4CM |
US $828.36 |
||
|
82144
|
82144
82144-4M400 Frame-Rear Door Inner, Rh0205--01 ~ ; S |
82144-4M400 |
US $34.99 |
||
|
82144
|
82144
82144-4M430 Frame-Rear Door Inner, Rh9810--01 ~ 9909--01; S |
82144-4M430 |
US $38.45 |
||
|
82253A
|
82253A
01121-07261 BOLT0112--01 ~ 0205--01; S |
01121-07261 |
from US $0.72 |
||
|
82400
|
82400
82400-3J100 Hinge Assy-Rear Door, Upper Rh9810--01 ~ 9909--01; S |
82400-3J100 |
US $35.42 |
||
|
82400
|
82400
80498-40U00
Bolt
9810--01 ~ 9909--01; S |
80498-40U00 |
— | ||
| replacement | |||||
|
82400
|
82400
80498-40U0B Bolt9810--01 ~ 9909--01; S |
80498-40U0B |
from US $0.87 |
||
|
82400A
|
82400A
80498-40U00
Bolt
9810--01 ~ 9909--01; S |
80498-40U00 |
— | ||
| replacement | |||||
|
82400A
|
82400A
80498-40U0B Bolt9810--01 ~ 9909--01; S |
80498-40U0B |
from US $0.87 |
||
|
82401
|
82401
82401-3J100 Hinge Assy-Rear Door, Upper Lh9810--01 ~ 9909--01; S |
82401-3J100 |
US $35.42 |
||
|
82420
|
82420
824203J100 Hinge Assy-Front Door9810--01 ~ 9909--01; S |
824203J100 |
from US $40.61 |
||
|
82421
|
82421
824213J100 Hinge Assy-Front Door9810--01 ~ 9909--01; S |
824213J100 |
from US $38.79 |
||
|
82430
|
82430
82430-4M400 Link-Check, Rear Door9810--01 ~ 9909--01; S |
82430-4M400 |
US $34.78 |
||
|
82812X
|
82812X
82812-4M700
Tape-Rear Door Outside, Rh
9810--01 ~ 9909--01; S |
82812-4M700 |
— | ||
|
82812X
|
82812X
82812-4M710
Tape-Rear Door Outside, Rh
9912--01 ~ 0205--01; S |
82812-4M710 |
— | ||
| replacement | |||||
|
82812X
|
82812X
828128N000 Tape-Rear Door Outside, Rh9912--01 ~ 0205--01; S |
828128N000 |
US $22.31 |
||
|
82812X
|
82812X
828128N000 Tape-Rear Door Outside, Rh0401--01 ~ ; S.(EX/S+S/S) |
828128N000 |
US $22.31 |
||
|
82813X
|
82813X
828134M700
Tape-Rear Door Outside, Lh
9810--01 ~ 9909--01; S |
828134M700 |
— | ||
|
82813X
|
82813X
82813-4M710
Tape-Rear Door Outside, Lh
9912--01 ~ 0205--01; S |
82813-4M710 |
— | ||
| replacement | |||||
|
82813X
|
82813X
828138N000 Tape-Rear Door Outside, Lh9912--01 ~ 0205--01; S |
828138N000 |
US $22.31 |
||
|
82813X
|
82813X
828138N000 Tape-Rear Door Outside, Lh0401--01 ~ ; S.(EX/S+S/S) |
828138N000 |
US $22.31 |
||
|
82820
|
82820
828204M400 Moulding-Rear Door Outside, Rh9810--01 ~ 9909--01; S |
828204M400 |
US $66.82 |
||
|
82821
|
82821
828214M400 Moulding-Rear Door Outside, Lh9810--01 ~ 9909--01; S |
828214M400 |
US $66.82 |
||
|
82821
|
82821
01464-00181 SCREW9810--01 ~ 9909--01; S |
01464-00181 |
US $0.86 |
||
|
82821
|
82821
80899-8N000 Screw0403--01 ~ ; S |
80899-8N000 |
US $1.01 |
||
|
82821A
|
82821A
01464-00181 SCREW9810--01 ~ 9909--01; S |
01464-00181 |
US $0.86 |
||
|
82821A
|
82821A
80899-8N000 Screw0403--01 ~ ; S |
80899-8N000 |
US $1.01 |
||
|
82830
|
82830
82830-4M400 Weatherstrip-Rear Door, Rh9810--01 ~ 9909--01; S.QG15DE.S/S +S.QG18DD |
82830-4M400 |
US $53.28 |
||
|
82830
|
82830
82830-4M401 Weatherstrip-Rear Door, Rh9911--01 ~ 0001--01; S.(QG15DE+YD22DD).S/S +S.QG18DD |
82830-4M401 |
US $53.28 |
||
|
82830
|
82830
82830-4M421 Weatherstrip-Rear Door, Rh0001--01 ~ 0006--01; S |
82830-4M421 |
US $48.96 |
||
|
82830
|
82830
82830-4M422 Weatherstrip-Rear Door, Rh0006--01 ~ 0205--01; S |
82830-4M422 |
from US $43.11 |
||
|
82830
|
82830
0155309301 CLIP-WEATHERSTRIP9810--01 ~ 9909--01; S |
0155309301 |
US $0.86 |
||
|
82830
|
82830
0155309311 CLIP-WEATHERSTRIP9810--01 ~ 9909--01; S |
0155309311 |
US $0.86 |
||
|
82830A
|
82830A
0155309301 CLIP-WEATHERSTRIP9810--01 ~ 9909--01; S |
0155309301 |
US $0.86 |
||
|
82830A
|
82830A
0155309311 CLIP-WEATHERSTRIP9810--01 ~ 9909--01; S |
0155309311 |
US $0.86 |
||
|
82830AA
|
82830AA
0155309311 CLIP-WEATHERSTRIP9810--01 ~ 9909--01; S |
0155309311 |
US $0.86 |
||
|
82831
|
82831
82831-4M400 Weatherstrip-Rear Door, Lh9810--01 ~ 9909--01; S.QG15DE.S/S +S.QG18DD |
82831-4M400 |
US $53.28 |
||
|
82831
|
82831
82831-4M401 Weatherstrip-Rear Door, Lh9911--01 ~ 0001--01; S.(QG15DE+YD22DD).S/S +S.QG18DD |
82831-4M401 |
US $53.28 |
||
|
82831
|
82831
828314M421 Weatherstrip-Rear Door, Lh0001--01 ~ 0006--01; S |
828314M421 |
US $48.96 |
||
|
82831
|
82831
828314M422 Weatherstrip-Rear Door, Lh0006--01 ~ 0205--01; S |
828314M422 |
US $40.61 |
||
|
82834
|
82834
82834-4M410 Weatherstrip-Rear Door Inside, Rh9810--01 ~ 9909--01; S |
82834-4M410 |
US $30.38 |
||
| replacement | |||||
|
82834
|
82834
82834-4M420 Weatherstrip-Rear Door Inside, Rh9810--01 ~ 9909--01; S |
82834-4M420 |
US $40.18 |
||
|
82834
|
82834
82834-4M420 Weatherstrip-Rear Door Inside, Rh0205--01 ~ ; S |
82834-4M420 |
US $40.18 |
||
|
82835
|
82835
82835-4M410 Weatherstrip-Rear Door Inside, Lh9810--01 ~ 9909--01; S |
82835-4M410 |
US $30.38 |
||
| replacement | |||||
|
82835
|
82835
828354M420 Weatherstrip-Rear Door Inside, Lh9810--01 ~ 9909--01; S |
828354M420 |
US $40.18 |
||
|
82835
|
82835
828354M420 Weatherstrip-Rear Door Inside, Lh0205--01 ~ ; S |
828354M420 |
US $40.18 |
||
|
82838M
|
82838M
82838-4M400 Seal-Rear Door Partition, Rh9810--01 ~ 9909--01; S |
82838-4M400 |
US $36.88 |
||
|
82839M
|
82839M
828394M400 Seal-Rear Door Partition, Lh9810--01 ~ 9909--01; S |
828394M400 |
US $36.88 |
||
|
82840N
|
82840N
82840-40U00 Cover-Child Lock Lever9810--01 ~ 9909--01; S |
82840-40U00 |
US $6.91 |
||
|
82840Q
|
82840Q
808404M410
Cover-Hole, Front Door Inside
9810--01 ~ 9909--01; S |
808404M410 |
— | ||
| replacement | |||||
|
82840Q
|
82840Q
80840-1VA0C Cover-Hole9810--01 ~ 9909--01; S |
80840-1VA0C |
US $8.73 |
||
|
82840Q
|
82840Q
64892W5000 Unit Assy-Divider Tachometer9810--01 ~ 9909--01; S |
64892W5000 |
from US $0.96 |
||
|
82840Q
|
82840Q
80840-4M400 Cover-Hole9810--01 ~ 9909--01; S |
80840-4M400 |
US $7.20 |
||
|
82840QA
|
82840QA
64892W5000 Unit Assy-Divider Tachometer9810--01 ~ 9909--01; S |
64892W5000 |
from US $0.96 |
||
|
82880
|
82880
82860-4M400 Screen-Sealing, Rear Door9810--01 ~ 9909--01; 'S.QG15DE.S/S +S.(SR16VE+QG18DD) +S.EX/S |
82860-4M400 |
US $17.71 |
||
|
82880
|
82880
828604M401 Screen-Sealing, Rear Door9911--01 ~ 0205--01; 0S.(QG15DE+YD22DD).S/S +S.(SR16VE+QG18DD) +S.EX/S |
828604M401 |
US $14.69 |
||
