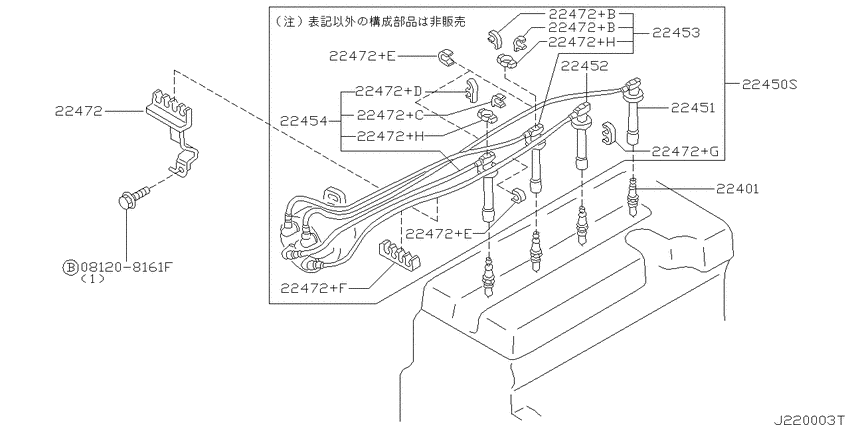

Ignition System (1999-04-01 ~ 2002-05-01; SR16VE) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2002
- Sales region
- Japan
- Engine
- SR16VE
- drive
- 2WD
- transmission
- MT
- grade
- VZR
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208161F
|
081208161F
081208161F
Bolt-hexagon
|
081208161F |
— | ||
|
22401
|
22401
224011N515 Plug-Spark9810--01 ~ 0205--01; SR16VE; BKR5E-N[B512] |
224011N515 |
US $7.49 |
||
|
22401
|
22401
224011N516 Plug-Spark9810--01 ~ 0205--01; SR16VE; BKR6E-N[B512] |
224011N516 |
US $5.94 |
||
|
22401
|
22401
22401-1N517 Plug-Spark9810--01 ~ 0205--01; SR16VE; BKR7E-N[B512] |
22401-1N517 |
US $7.49 |
||
|
22450S
|
22450S
224401N510 Cable Set-High Tension9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
224401N510 |
US $111.60 |
||
|
22451
|
22451
22451-1N510 Cable Assy-High Tension, No 19810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22451-1N510 |
US $41.33 |
||
|
22452
|
22452
22452-1N510 Cable Assy-High Tension, No 29810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22452-1N510 |
US $41.33 |
||
|
22453
|
22453
224531N510 Cable Assy-High Tension, No 39810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
224531N510 |
US $41.33 |
||
|
22454
|
22454
22454-1N510 Cable Assy-High Tension, No 49810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22454-1N510 |
US $41.33 |
||
|
22472
|
22472
22472-1N510 Clamp-High Tension Cable9810--01 ~ 0205--01; SR16VE |
22472-1N510 |
US $4.18 |
||
|
22472
|
22472
22472-53J12 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J12 |
US $4.90 |
||
|
22472
|
22472
22472-53J12 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J12 |
US $4.90 |
||
|
22472
|
22472
22472-53J12 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J12 |
US $4.90 |
||
|
22472
|
22472
22472-53J13 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J13 |
US $4.90 |
||
|
22472
|
22472
22472-53J14 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J14 |
US $3.60 |
||
|
22472
|
22472
22472-53J16 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J16 |
US $4.90 |
||
|
22472
|
22472
22472-0M810 Clamp-High Tension Cable9904--01 ~ 0205--01; SR16VE |
22472-0M810 |
US $4.90 |
||
|
22472
|
22472
22472-53J17 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J17 |
US $5.47 |
||
|
22472+B
|
22472+B
22472-53J12 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J12 |
US $4.90 |
||
|
22472+B
|
22472+B
22472-53J12 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J12 |
US $4.90 |
||
|
22472+C
|
22472+C
22472-53J12 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J12 |
US $4.90 |
||
|
22472+D
|
22472+D
22472-53J13 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J13 |
US $4.90 |
||
|
22472+E
|
22472+E
22472-53J14 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J14 |
US $3.60 |
||
|
22472+E
|
22472+E
22472-53J14 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J14 |
US $3.60 |
||
|
22472+F
|
22472+F
22472-53J16 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J16 |
US $4.90 |
||
|
22472+G
|
22472+G
22472-0M810 Clamp-High Tension Cable9904--01 ~ 0205--01; SR16VE |
22472-0M810 |
US $4.90 |
||
|
22472+H
|
22472+H
22472-53J17 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J17 |
US $5.47 |
||
|
22472+H
|
22472+H
22472-53J17 Clamp-High Tension Cable9810--01 ~ 9909--01; SR16VE; ｽﾐﾄﾓ |
22472-53J17 |
US $5.47 |
