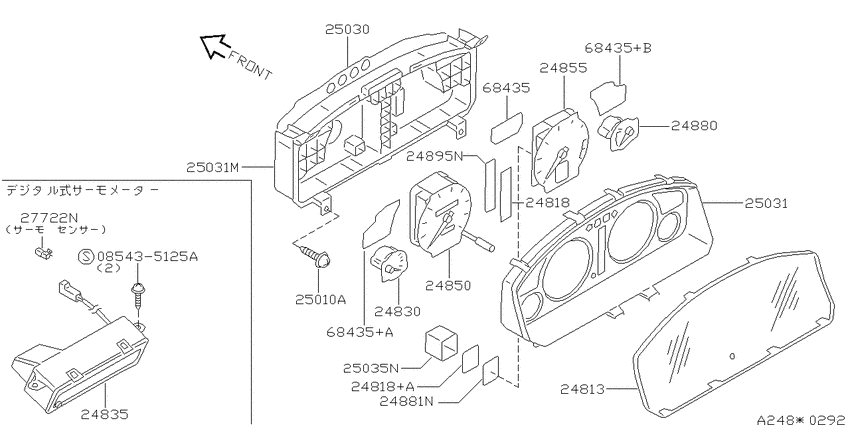

meter & gauge (1997-09-01 ~ 1999-02-01; フロント ビュー; W) Diagram Nissan TERRANO REGULUS
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- VG33E
- drive
- 4WD
- transmission
- AT
- grade
- SE
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
085435125A
|
085435125A
085435125A Screw |
085435125A |
US $0.63 |
||
|
24813
|
24813
24813-3J100 Cover-Front Meter9608--01 ~ 9709--01; W |
24813-3J100 |
US $34.27 |
||
|
24818
|
24818
24896-1W302 Guide-Light9608--01 ~ 9709--01; W |
24896-1W302 |
US $17.57 |
||
|
24818
|
24818
24896-1W708 Guide-Light9709--01 ~ 9902--01; W |
24896-1W708 |
US $17.57 |
||
|
24818
|
24818
24896-2W100 Guide-Light9902--01 ~ 9909--01; *W.2WD +*W.SE; ｽﾀ-ﾌｱｲｱ ｼﾖｳ |
24896-2W100 |
US $14.83 |
||
|
24818
|
24818
24896-2W103 Guide-Light9902--01 ~ 0110--01; W |
24896-2W103 |
US $17.57 |
||
|
24818
|
24818
24891-0W702 Guide-Light9608--01 ~ 9709--01; W.F/4WD |
24891-0W702 |
US $14.54 |
||
|
24818
|
24818
24891-1W703 Guide-Light9709--01 ~ 9902--01; W |
24891-1W703 |
US $14.83 |
||
|
24818+A
|
24818+A
24891-0W702 Guide-Light9608--01 ~ 9709--01; W.F/4WD |
24891-0W702 |
US $14.54 |
||
|
24818+A
|
24818+A
24891-1W703 Guide-Light9709--01 ~ 9902--01; W |
24891-1W703 |
US $14.83 |
||
|
24830
|
24830
24830-1W300 Meter Assy-Water & Fuel9608--01 ~ 9709--01; W |
24830-1W300 |
US $217.44 |
||
|
24830
|
24830
24830-1W708 Meter Assy-Water & Fuel9709--01 ~ 9902--01; W |
24830-1W708 |
US $116.06 |
||
|
24830
|
24830
24830-2W602 Meter Assy-Water & Fuel9902--01 ~ 0110--01; W |
24830-2W602 |
US $116.06 |
||
|
24830
|
24830
24830-2W610 Meter Assy-Water & Fuel9902--01 ~ 9909--01; *W.2WD +*W.SE; ｽﾀ-ﾌｱｲｱ ｼﾖｳ |
24830-2W610 |
US $97.49 |
||
|
24835
|
24835
24835-0W700 Meter Assy-Temperature9608--01 ~ 9709--01; W.F/4WD |
24835-0W700 |
US $244.80 |
||
|
24835
|
24835
24835-0W710 Meter Assy-Temperature9808--01 ~ 9902--01; W |
24835-0W710 |
US $270.72 |
||
|
24835
|
24835
24835-3W500
Meter Assy-Temperature
0006--01 ~ 0110--01; W.4WD.VG33E +W.ZD30DDTI |
24835-3W500 |
— | ||
|
24850
|
24850
24820-1W302 Speedometer Assy9608--01 ~ 9709--01; W.VG33E |
24820-1W302 |
US $491.35 |
||
|
24850
|
24850
24820-1W708 Speedometer Assy9709--01 ~ 9902--01; W.VG33E |
24820-1W708 |
US $491.35 |
||
|
24850
|
24850
24820-2W104 Speedometer Assy9902--01 ~ 0110--01; W.VG33E |
24820-2W104 |
US $491.35 |
||
|
24850
|
24850
24820-2W110 Speedometer Assy9902--01 ~ 9909--01; *W.2WD +*W.VG33E.SE; ｽﾀ-ﾌｱｲｱ ｼﾖｳ |
24820-2W110 |
US $413.47 |
||
|
24855
|
24855
24825-1W300 Tachometer Assy9608--01 ~ 9709--01; W.F/4WD.VG33E |
24825-1W300 |
US $601.80 |
||
|
24855
|
24855
24825-1W709 Tachometer Assy9709--01 ~ 9902--01; W.VG33E |
24825-1W709 |
US $601.80 |
||
|
24855
|
24855
24825-2W105 Tachometer Assy9902--01 ~ 0110--01; W.4WD.VG33E |
24825-2W105 |
US $601.80 |
||
|
24855
|
24855
24825-2W110 Tachometer Assy9909--01 ~ ; *W.VG33E.SE |
24825-2W110 |
US $505.51 |
||
|
24880
|
24880
24835-1W300 Meter Assy-Water Temperature9608--01 ~ 9709--01; W |
24835-1W300 |
US $116.06 |
||
|
24880
|
24880
24835-1W708 Meter Assy-Water Temperature9709--01 ~ 9902--01; W |
24835-1W708 |
US $116.06 |
||
|
24880
|
24880
24835-2W602 Meter Assy-Water Temperature9902--01 ~ 0110--01; W |
24835-2W602 |
US $116.06 |
||
|
24880
|
24880
24835-2W610 Meter Assy-Water Temperature9902--01 ~ 9909--01; *W.2WD +*W.SE; ｽﾀ-ﾌｱｲｱ ｼﾖｳ |
24835-2W610 |
US $97.49 |
||
|
24881N
|
24881N
24817-0W702 Finisher9608--01 ~ 9709--01; W.F/4WD.VG33E +W.QD32TI |
24817-0W702 |
US $58.32 |
||
|
24881N
|
24881N
24817-1W700 Finisher9902--01 ~ 9909--01; W |
24817-1W700 |
US $64.22 |
||
|
24881N
|
24881N
24817-1W703 Finisher9709--01 ~ 9902--01; W |
24817-1W703 |
US $58.61 |
||
|
24895N
|
24895N
24895-3J101 Lens9608--01 ~ 9709--01; W |
24895-3J101 |
US $12.24 |
||
|
24895N
|
24895N
24895-5J001 Lens9709--01 ~ 9902--01; W |
24895-5J001 |
US $11.38 |
||
|
25010A
|
25010A
0145100581 SCREW9608--01 ~ 9709--01; W |
0145100581 |
from US $0.72 |
||
|
25010A
|
25010A
24869-4P101 Bolt9608--01 ~ 9709--01; W |
24869-4P101 |
US $3.31 |
||
|
25030
|
25030
248140W702 Plate Assy-Printed Circuit9608--01 ~ 9709--01; W.F/4WD |
248140W702 |
US $38.45 |
||
|
25030
|
25030
24814-1W701
Plate Assy-Printed Circuit
9709--01 ~ 9902--01; W |
24814-1W701 |
— | ||
|
25030
|
25030
24814-2W101 Plate Assy-Printed Circuit9902--01 ~ 0110--01; W.4WD.VG33E +W.ZD30DDTI |
24814-2W101 |
US $38.88 |
||
|
25031
|
25031
24812-0W701 Housing-Meter Comb, Upper9608--01 ~ 9709--01; W |
24812-0W701 |
US $47.95 |
||
|
25031
|
25031
24812-1W701 Housing-Meter Comb, Upper9803--01 ~ 9902--01; W |
24812-1W701 |
US $48.38 |
||
|
25031
|
25031
24811-0W700 Housing-Meter Comb, Lower9608--01 ~ 9709--01; W |
24811-0W700 |
US $47.95 |
||
|
25031
|
25031
24811-1W700 Housing-Meter Comb, Lower9709--01 ~ 9902--01; W |
24811-1W700 |
US $47.95 |
||
|
25031
|
25031
248112W100 Housing-Meter Comb, Lower9902--01 ~ 0110--01; W |
248112W100 |
US $48.38 |
||
|
25031M
|
25031M
24811-0W700 Housing-Meter Comb, Lower9608--01 ~ 9709--01; W |
24811-0W700 |
US $47.95 |
||
|
25031M
|
25031M
24811-1W700 Housing-Meter Comb, Lower9709--01 ~ 9902--01; W |
24811-1W700 |
US $47.95 |
||
|
25031M
|
25031M
248112W100 Housing-Meter Comb, Lower9902--01 ~ 0110--01; W |
248112W100 |
US $48.38 |
||
|
25035N
|
25035N
24898-0W702 Plate Assy-Printed Circuit9608--01 ~ 9709--01; W.F/4WD.VG33E +W.QD32TI |
24898-0W702 |
US $79.49 |
||
|
25035N
|
25035N
24898-1W703 Plate Assy-Printed Circuit9709--01 ~ 9902--01; W |
24898-1W703 |
US $48.82 |
||
|
27722N
|
27722N
27722-31U00 Sensor Assy-Ambient9608--01 ~ 9709--01; W.F/4WD |
27722-31U00 |
US $38.88 |
||
|
68435
|
68435
24890-0W701 Lens-Warning Lamp9608--01 ~ 9709--01; W |
24890-0W701 |
US $21.17 |
||
|
68435
|
68435
24890-1W701 Lens-Warning Lamp9709--01 ~ 9902--01; W |
24890-1W701 |
US $19.58 |
||
|
68435
|
68435
24880-0W704 Lens-Warning Lamp9608--01 ~ 9709--01; W.VG33E |
24880-0W704 |
US $21.17 |
||
|
68435
|
68435
24880-1W704 Lens-Warning Lamp9709--01 ~ 9902--01; W.VG33E |
24880-1W704 |
US $21.17 |
||
|
68435
|
68435
24880-2W100 Lens-Warning Lamp9902--01 ~ 0110--01; W |
24880-2W100 |
US $21.46 |
||
|
68435
|
68435
24885-0W900 Lens-Warning Lamp9608--01 ~ 9709--01; W |
24885-0W900 |
US $21.17 |
||
|
68435
|
68435
24885-1W700 Lens-Warning Lamp9709--01 ~ 9902--01; W |
24885-1W700 |
US $21.46 |
||
|
68435+A
|
68435+A
24880-0W704 Lens-Warning Lamp9608--01 ~ 9709--01; W.VG33E |
24880-0W704 |
US $21.17 |
||
|
68435+A
|
68435+A
24880-1W704 Lens-Warning Lamp9709--01 ~ 9902--01; W.VG33E |
24880-1W704 |
US $21.17 |
||
|
68435+A
|
68435+A
24880-2W100 Lens-Warning Lamp9902--01 ~ 0110--01; W |
24880-2W100 |
US $21.46 |
||
|
68435+B
|
68435+B
24885-0W900 Lens-Warning Lamp9608--01 ~ 9709--01; W |
24885-0W900 |
US $21.17 |
||
|
68435+B
|
68435+B
24885-1W700 Lens-Warning Lamp9709--01 ~ 9902--01; W |
24885-1W700 |
US $21.46 |
