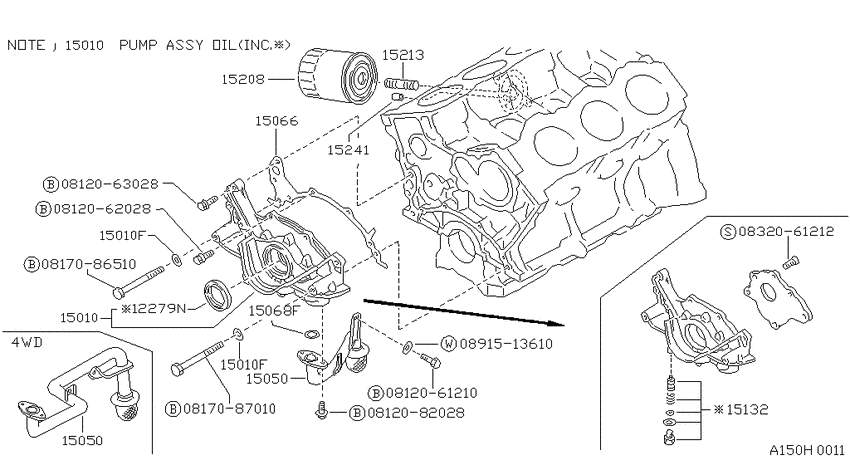

Lubricating system (1985-11-01 ~ 1989-08-01; VG30) Diagram Nissan TRUCK-HARDBODY
- Year
- 1985 - 1989
- Sales region
- U.S.A.
- Engine
- VG30
- drive
- 2WD
- transmission
- AT
- body
- T
- trim lvl
- DX/E
- length
- SB
- gears/shift type
- R4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061210
|
0812061210
08120-61210
Bolt-hexagon
|
08120-61210 |
— | ||
|
0812062028
|
0812062028
08120-62028
Bolt-hexagon
|
08120-62028 |
— | ||
| replacement | |||||
|
0812062028
|
0812062028
081X0-62028 Bolt-hexagon |
081X0-62028 |
US $2.49 |
||
|
0812063028
|
0812063028
08120-63028
Bolt-hexagon
|
08120-63028 |
— | ||
|
0812082028
|
0812082028
08120-82028
Bolt-hexagon
|
08120-82028 |
— | ||
| replacement | |||||
|
0812082028
|
0812082028
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0817086510
|
0817086510
08170-86510
Bolt-hexagon
|
08170-86510 |
— | ||
|
0817087010
|
0817087010
08170-87010
Bolt-hexagon
|
08170-87010 |
— | ||
|
0832061212
|
0832061212
08320-61212
ｽｸﾘﾕ-,ﾏｼﾝ
|
08320-61212 |
— | ||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
12279N
|
12279N
13510-V5000
Seal-Oil, Crankshaft Front
1985-11-01 ~ 1989-08-01; VG30; , |
13510-V5000 |
— | ||
| replacement | |||||
|
12279N
|
12279N
1351088G00 Seal-Oil, Crankshaft Front1985-11-01 ~ 1989-08-01; VG30; , |
1351088G00 |
from US $5.26 |
||
|
15010
|
15010
15010-10V01 Pump Assy-Oil1987-03-01 ~ 1989-08-01; 2WD.VG30; , |
15010-10V01 |
US $240.48 |
||
|
15010
|
15010
15010-V5002 Pump Assy-Oil1985-11-01 ~ 1987-03-01; 2WD.VG30; , |
15010-V5002 |
US $234.72 |
||
|
15010
|
15010
01323-00021 WASHER-FINAL DRIVE1985-11-01 ~ 1989-08-01; VG30; , |
01323-00021 |
US $1.73 |
||
|
15010
|
15010
15010-10V01 Pump Assy-Oil1987-03-01 ~ 1989-08-01; 2WD.VG30; , |
15010-10V01 |
US $240.48 |
||
|
15010
|
15010
15010-V5002 Pump Assy-Oil1985-11-01 ~ 1987-03-01; 2WD.VG30; , |
15010-V5002 |
US $234.72 |
||
|
15010
|
15010
01323-00021 WASHER-FINAL DRIVE1985-11-01 ~ 1989-08-01; VG30; , |
01323-00021 |
US $1.73 |
||
|
15010F
|
15010F
01323-00021 WASHER-FINAL DRIVE1985-11-01 ~ 1989-08-01; VG30; , |
01323-00021 |
US $1.73 |
||
|
15010F
|
15010F
01323-00021 WASHER-FINAL DRIVE1985-11-01 ~ 1989-08-01; VG30; , |
01323-00021 |
US $1.73 |
||
|
15050
|
15050
15050-12G00
Strainer Assy-Oil
1985-11-01 ~ 1989-08-01; 2WD.VG30; , |
15050-12G00 |
— | ||
|
15050
|
15050
15050-12G00
Strainer Assy-Oil
1985-11-01 ~ 1989-08-01; 2WD.VG30; , |
15050-12G00 |
— | ||
|
15066
|
15066
15066-89E00 GASKET-OIL PUMP TO CYLINDER BLOCK1985-11-01 ~ 1989-08-01; 2WD.VG30; , |
15066-89E00 |
US $4.03 |
||
|
15066
|
15066
15066-V5000 Gasket-Oil Pump To Cylinder Block1985-11-01 ~ 1989-08-01; 2WD.VG30; , |
15066-V5000 |
US $4.18 |
||
|
15068F
|
15068F
15059V5001
Seal-O Ring, Oil Strainer
1985-11-01 ~ 1989-08-01; VG30; , |
15059V5001 |
— | ||
| replacement | |||||
|
15068F
|
15068F
15059-V500A Ring, e-1985-11-01 ~ 1989-08-01; VG30; , |
15059-V500A |
US $3.60 |
||
|
15132
|
15132
15132-V5001 Valve Assy-Oil Regulator1985-11-01 ~ 1989-08-01; 2WD.VG30; , |
15132-V5001 |
US $7.35 |
||
|
15208
|
15208
15208-55Y00
Oil Filter Assy
1985-11-01 ~ 1989-08-01; *VG30; EXC.(HAW+GUM+CAN) USA MAKE |
15208-55Y00 |
— | ||
|
15208
|
15208
15208-H8903
Oil Filter Assy
1985-11-01 ~ 1989-08-01; VG30; , |
15208-H8903 |
— | ||
| replacement | |||||
|
15208
|
15208
15208H890C Oil Filter Assy1985-11-01 ~ 1989-08-01; VG30; , |
15208H890C |
US $11.34 |
||
|
15208
|
15208
15208-H8905
Oil Filter Assy
1985-11-01 ~ 1989-08-01; VG30; , |
15208-H8905 |
— | ||
| replacement | |||||
|
15208
|
15208
15208H890C Oil Filter Assy1985-11-01 ~ 1989-08-01; VG30; , |
15208H890C |
US $11.34 |
||
|
15213
|
15213
15213-21001 Stud-Oil Filter1985-11-01 ~ 1989-08-01; VG30; , |
15213-21001 |
US $4.46 |
||
| replacement | |||||
|
15213
|
15213
15213-W040A Stud-oil filter1985-11-01 ~ 1989-08-01; VG30; , |
15213-W040A |
US $5.81 |
||
|
15241
|
15241
15241-16A01 Valve Assy-Regulator1985-11-01 ~ 1989-08-01; VG30; , |
15241-16A01 |
US $6.19 |
||
|
15241
|
15241
15241-40F00 Valve Assy-Relief, Oil Cooler1985-11-01 ~ 1989-08-01; VG30; , |
15241-40F00 |
from US $4.87 |
||
