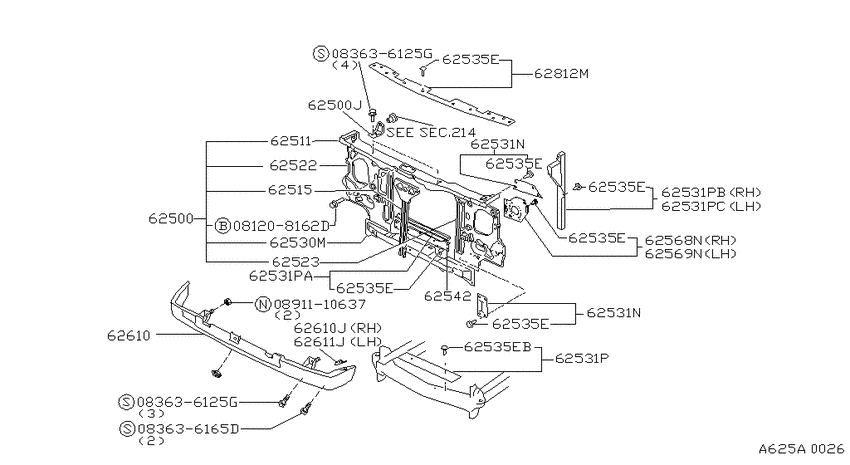

Front apron & radiator core support (1996-01-01 ~ ; FED.T +FED.KC +CAL.T +CAL.KC) Diagram Nissan TRUCK-HARDBODY
- Year
- 1996 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- drive
- 4WD
- transmission
- MT.F5
- grade
- SE
- body
- CAL.KC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208162D
|
081208162D
08120-8162D
Bolt-hexagon
|
08120-8162D |
— | ||
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G SCREWMACHINE |
083606125G |
US $0.57 |
||
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G SCREWMACHINE |
083606125G |
US $0.57 |
||
|
083636165D
|
083636165D
08363-6165D
Rope & Hook
|
08363-6165D |
— | ||
| replacement | |||||
|
083636165D
|
083636165D
083606165D Rope & Hook |
083606165D |
US $1.52 |
||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
62500
|
62500
62500-1S730
Support assy-radiator core
1996-01-01 ~ ; FED.T +FED.KC +CAL.T +CAL.KC; , |
62500-1S730 |
— | ||
|
62500
|
62500
62516-01G15 Bracket-Radiator Mounting1996-01-01 ~ ; FED.T +FED.KC +CAL.T +CAL.KC; , |
62516-01G15 |
US $8.50 |
||
|
62500J
|
62500J
62516-01G15 Bracket-Radiator Mounting1996-01-01 ~ ; FED.T +FED.KC +CAL.T +CAL.KC; , |
62516-01G15 |
US $8.50 |
||
|
62511
|
62511
62510-1S730
Support-radiator core,upper
1996-01-01 ~ ; FED.T +FED.KC +CAL.T +CAL.KC; , |
62510-1S730 |
— | ||
|
62515
|
62515
62550-55G10 Stay-Hood Lock1996-01-01 ~ ; FED.T +FED.KC +CAL.T +CAL.KC; , |
62550-55G10 |
US $44.06 |
||
|
62522
|
62522
62520-70P00
Support-Radiator Core Side, Rh
1996-01-01 ~ ; FED.T +FED.KC +CAL.T +CAL.KC; , |
62520-70P00 |
— | ||
|
62523
|
62523
62521-70P00
Support-Radiator Core Side, Lh
1996-01-01 ~ ; FED.T +FED.KC +CAL.T +CAL.KC; , |
62521-70P00 |
— | ||
|
62530M
|
62530M
62530-70P00
Support Assy-Radiator Core, Lower
1996-01-01 ~ ; FED.T +FED.KC +CAL.T +CAL.KC; , |
62530-70P00 |
— | ||
| replacement | |||||
|
62530M
|
62530M
62530-70P25
Support-radiator core,lower
1996-01-01 ~ ; FED.T +FED.KC +CAL.T +CAL.KC; , |
62530-70P25 |
— | ||
|
62531N
|
62531N
6281101G10 Sealing Rubber-Radiator, Side1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
6281101G10 |
US $11.65 |
||
|
62531N
|
62531N
62812-01G10 Sealing Rubber-Radiator, Side B Rh1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
62812-01G10 |
US $11.51 |
||
|
62531N
|
62531N
6281101G10 Sealing Rubber-Radiator, Side1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
6281101G10 |
US $11.65 |
||
|
62531N
|
62531N
62812-01G10 Sealing Rubber-Radiator, Side B Rh1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
62812-01G10 |
US $11.51 |
||
|
62531P
|
62531P
62814-01G00 Sealing Rubber-Radiator, Lower1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
62814-01G00 |
US $23.42 |
||
|
62531P
|
62531P
62814-73P00 Sealing Rubber-Radiator, Lower B1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON(HFC134A) |
62814-73P00 |
US $23.42 |
||
|
62531P
|
62531P
62816-3B000
Rubber seal-radiator lower
1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
62816-3B000 |
— | ||
|
62531PA
|
62531PA
62814-73P00 Sealing Rubber-Radiator, Lower B1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON(HFC134A) |
62814-73P00 |
US $23.42 |
||
|
62531PB
|
62531PB
62816-3B000
Rubber seal-radiator lower
1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
62816-3B000 |
— | ||
|
62535E
|
62535E
76876-S3800
Clip
1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
76876-S3800 |
— | ||
|
62535E
|
62535E
0155301182 CLIP1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON F/AIR CON-STD TYPE |
0155301182 |
from US $0.59 |
||
|
62535E
|
62535E
76876-S3800
Clip
1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
76876-S3800 |
— | ||
|
62535E
|
62535E
0155301182 CLIP1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON F/AIR CON-STD TYPE |
0155301182 |
from US $0.59 |
||
|
62535E
|
62535E
76876-S3800
Clip
1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
76876-S3800 |
— | ||
|
62535E
|
62535E
0155301182 CLIP1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON F/AIR CON-STD TYPE |
0155301182 |
from US $0.59 |
||
|
62535E
|
62535E
76876-S3800
Clip
1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
76876-S3800 |
— | ||
|
62535E
|
62535E
0155301182 CLIP1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON F/AIR CON-STD TYPE |
0155301182 |
from US $0.59 |
||
|
62535E
|
62535E
76876-S3800
Clip
1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
76876-S3800 |
— | ||
|
62535E
|
62535E
0155301182 CLIP1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON F/AIR CON-STD TYPE |
0155301182 |
from US $0.59 |
||
|
62535E
|
62535E
76876-S3800
Clip
1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
76876-S3800 |
— | ||
|
62535E
|
62535E
0155301182 CLIP1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON F/AIR CON-STD TYPE |
0155301182 |
from US $0.59 |
||
|
62535EB
|
62535EB
0155301182 CLIP1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON F/AIR CON-STD TYPE |
0155301182 |
from US $0.59 |
||
|
62542
|
62542
62542-80G00 Sealing Rubber-Radiator Core1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
62542-80G00 |
US $43.92 |
||
|
62568N
|
62568N
62568-1S700
Seal-head lamp hole,rh
1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
62568-1S700 |
— | ||
|
62568N
|
62568N
62568-8B000
Seal-head lamp hole,rh
1996-01-01 ~ ; FED.T +FED.KC +CAL.T +CAL.KC; , |
62568-8B000 |
— | ||
|
62569N
|
62569N
62569-1S700
Seal-head lamp hole,lh
1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
62569-1S700 |
— | ||
|
62569N
|
62569N
62569-8B000
Seal-head lamp hole,lh
1996-01-01 ~ ; FED.T +FED.KC +CAL.T +CAL.KC; , |
62569-8B000 |
— | ||
|
62610
|
62610
6265056G00 Apron-Front Panel1996-01-01 ~ ; ,FED.T.4WD +FED.KC.4WD +CAL.T.4WD +CAL.KC.4WD; , |
6265056G00 |
US $257.76 |
||
|
62610
|
62610
62676-56G00 Spacer-Front Apron, Rh1996-01-01 ~ ; ,FED.T.4WD +FED.KC.4WD +CAL.T.4WD +CAL.KC.4WD; , |
62676-56G00 |
US $4.61 |
||
|
62610J
|
62610J
62676-56G00 Spacer-Front Apron, Rh1996-01-01 ~ ; ,FED.T.4WD +FED.KC.4WD +CAL.T.4WD +CAL.KC.4WD; , |
62676-56G00 |
US $4.61 |
||
|
62611J
|
62611J
62677-56G00 Spacer-Front Apron, Lh1996-01-01 ~ ; ,FED.T.4WD +FED.KC.4WD +CAL.T.4WD +CAL.KC.4WD; , |
62677-56G00 |
US $4.61 |
||
|
62812M
|
62812M
62810-8B000
Rubber-sealing radiator
1996-01-01 ~ ; *FED.T +*FED.KC +*CAL.T +*CAL.KC; F/AIR CON-STD TYPE |
62810-8B000 |
— | ||
