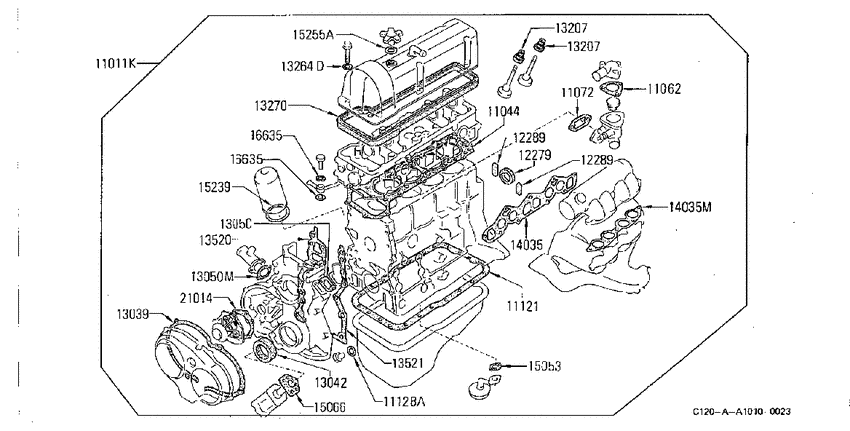

Engine gasket kit (1981-06-01 ~ ; LD20) Diagram Nissan VANETTE
- Year
- 1982 - 2012
- Sales region
- Japan
- Engine
- LD20
- Number of doors
- 4
- grade
- DX
- body
- WV
- Roof
- STD
- body type
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011K
|
11011K
10101-W1727
Gasket Kit-Engine Repair
8106--01 ~ 8303--01; LD20 |
10101-W1727 |
— | ||
|
11011K
|
11011K
10101-W1728 Gasket Kit-Engine Repair8303--01 ~ ; LD20 |
10101-W1728 |
US $305.86 |
||
|
11044
|
11044
11044-W1700 Gasket-Cylinder Head8106--01 ~ ; LD20; T=1.2 |
11044-W1700 |
US $76.61 |
||
|
11044
|
11044
11044-W1710 Gasket-Cylinder Head8106--01 ~ ; LD20; T=1.3 |
11044-W1710 |
US $76.61 |
||
|
11062
|
11062
11062-D4200 Gasket-Water Outlet8502--01 ~ ; LD20+LD20T |
11062-D4200 |
US $4.03 |
||
| replacement | |||||
|
11062
|
11062
11062D5700 Gasket-Water Outlet8502--01 ~ ; LD20+LD20T |
11062D5700 |
US $4.30 |
||
|
11062
|
11062
11062-Y7000
Gasket-Water Outlet
8106--01 ~ 8209--01; LD20 |
11062-Y7000 |
— | ||
| replacement | |||||
|
11062
|
11062
11062D5700 Gasket-Water Outlet8106--01 ~ 8209--01; LD20 |
11062D5700 |
US $4.30 |
||
|
11072
|
11072
11072-50L00 Gasket-Thermostat Housing8503--01 ~ ; LD20+LD20T |
11072-50L00 |
US $3.46 |
||
|
11072
|
11072
11072-V0700
Gasket-Thermostat Housing
8106--01 ~ 8209--01; LD20 |
11072-V0700 |
— | ||
|
11121
|
11121
11121-A3500 Gasket-Oil Pan8106--01 ~ ; LD20 |
11121-A3500 |
US $12.10 |
||
|
11128A
|
11128A
1102601M02 Washer-Drain Plug8409--01 ~ ; Z20+LD20 |
1102601M02 |
from US $0.81 |
||
|
11128A
|
11128A
1102661000 Washer-Drain Plug8106--01 ~ 8209--01; LD20 |
1102661000 |
from US $0.85 |
||
|
12279
|
12279
12279-R4601
Seal-Oil, Crankshaft Rear
8106--01 ~ ; LD20; SELECT USE NOK |
12279-R4601 |
— | ||
| replacement | |||||
|
12279
|
12279
12279-5L300
Seal-Oil, Crankshaft Rear
8106--01 ~ ; LD20; SELECT USE NOK |
12279-5L300 |
— | ||
|
12279
|
12279
12279R4611 Seal-Oil, Crankshaft Rear8106--01 ~ 8209--01; LD20; SELECT USE NDK |
12279R4611 |
US $21.74 |
||
|
12289
|
12289
12289-V0700 Seal-Oil, Rear Bearing Cap Side8209--01 ~ ; LD20+LD20T |
12289-V0700 |
US $2.30 |
||
|
12289
|
12289
12289W0400 Seal-Oil, Rear Bearing Cap Side8106--01 ~ 8209--01; LD20 |
12289W0400 |
US $1.73 |
||
|
12289
|
12289
12289-V0700 Seal-Oil, Rear Bearing Cap Side8209--01 ~ ; LD20+LD20T |
12289-V0700 |
US $2.30 |
||
|
12289
|
12289
12289W0400 Seal-Oil, Rear Bearing Cap Side8106--01 ~ 8209--01; LD20 |
12289W0400 |
US $1.73 |
||
|
13039
|
13039
13565-V0700
Gasket-Cover
8106--01 ~ ; LD20 |
13565-V0700 |
— | ||
| replacement | |||||
|
13039
|
13039
13565-V0701
Gasket-cover
8106--01 ~ ; LD20 |
13565-V0701 |
— | ||
|
13042
|
13042
13042-A3510 Seal-Oil, Crankshaft Front8106--01 ~ ; LD20; ｾﾝﾀｸ ｼﾖｳ NDK |
13042-A3510 |
US $6.05 |
||
| replacement | |||||
|
13042
|
13042
13042A8601 Seal-Oil, Crankshaft Front8106--01 ~ ; LD20; ｾﾝﾀｸ ｼﾖｳ NDK |
13042A8601 |
from US $7.33 |
||
|
13042
|
13042
13042-A8600
Seal-Oil, Crankshaft Front
8106--01 ~ ; LD20; ｾﾝﾀｸ ｼﾖｳ NOK |
13042-A8600 |
— | ||
| replacement | |||||
|
13042
|
13042
13042A8601 Seal-Oil, Crankshaft Front8106--01 ~ ; LD20; ｾﾝﾀｸ ｼﾖｳ NOK |
13042A8601 |
from US $7.33 |
||
|
13050
|
13050
13050-50L00 Gasket-Water Inlet8501--01 ~ ; LD20T+LD20 |
13050-50L00 |
US $1.58 |
||
|
13050
|
13050
13050-V0700 Gasket-Water Inlet8106--01 ~ 8209--01; LD20 |
13050-V0700 |
US $1.58 |
||
| replacement | |||||
|
13050
|
13050
13050-50L00 Gasket-Water Inlet8106--01 ~ 8209--01; LD20 |
13050-50L00 |
US $1.58 |
||
|
13050
|
13050
13050-21000 Gasket-Water Inlet8106--01 ~ 8501--01; LD20+LD20T |
13050-21000 |
US $7.06 |
||
|
13050M
|
13050M
13050-21000 Gasket-Water Inlet8106--01 ~ 8501--01; LD20+LD20T |
13050-21000 |
US $7.06 |
||
|
13207
|
13207
13207-21002
Seal-Oil, Valve
8106--01 ~ 8209--01; LD20 |
13207-21002 |
— | ||
| replacement | |||||
|
13207
|
13207
1320781W00 Seal-Oil, Valve8106--01 ~ 8209--01; LD20 |
1320781W00 |
from US $3.19 |
||
|
13207
|
13207
1320781W00 Seal-Oil, Valve8602--01 ~ ; LD20#.WK LD20.(V,WV) |
1320781W00 |
from US $3.19 |
||
|
13207
|
13207
13207-21002
Seal-Oil, Valve
8106--01 ~ 8209--01; LD20 |
13207-21002 |
— | ||
| replacement | |||||
|
13207
|
13207
1320781W00 Seal-Oil, Valve8106--01 ~ 8209--01; LD20 |
1320781W00 |
from US $3.19 |
||
|
13207
|
13207
1320781W00 Seal-Oil, Valve8602--01 ~ ; LD20#.WK LD20.(V,WV) |
1320781W00 |
from US $3.19 |
||
|
13264D
|
13264D
13275-V0700 Washer8106--01 ~ ; LD20 |
13275-V0700 |
US $4.03 |
||
|
13270
|
13270
13270-W1701 Gasket-Rocker Cover8106--01 ~ 8301--01; LD20 |
13270-W1701 |
US $38.30 |
||
|
13270
|
13270
13270-W1702 Gasket-Rocker Cover8301--01 ~ ; LD20 |
13270-W1702 |
US $38.30 |
||
|
13520
|
13520
13520-V0700 Gasket-Front Cover, Rh8106--01 ~ 8209--01; LD20 |
13520-V0700 |
US $4.03 |
||
| replacement | |||||
|
13520
|
13520
13520-V0710 Gasket-Front Cover, Rh8106--01 ~ 8209--01; LD20 |
13520-V0710 |
US $7.20 |
||
|
13521
|
13521
13521-U6000 Gasket-Front Cover, Lh8106--01 ~ 8209--01; LD20 |
13521-U6000 |
US $3.46 |
||
| replacement | |||||
|
13521
|
13521
13521-07N00 Gasket-Front Cover, Lh8106--01 ~ 8209--01; LD20 |
13521-07N00 |
US $7.20 |
||
|
14035
|
14035
14035-W1700 Gasket-Manifold8106--01 ~ 8209--01; LD20 |
14035-W1700 |
US $22.32 |
||
|
14035
|
14035
14035-W1701 Gasket-Manifold8209--01 ~ ; LD20+LD20T |
14035-W1701 |
from US $13.99 |
||
|
14035
|
14035
14033-W1700 Gasket-Intake Manifold8106--01 ~ 8209--01; LD20 |
14033-W1700 |
US $4.03 |
||
|
14035M
|
14035M
14033-W1700 Gasket-Intake Manifold8106--01 ~ 8209--01; LD20 |
14033-W1700 |
US $4.03 |
||
|
15053
|
15053
15059-73400 Gasket-Oil Strainer8106--01 ~ 8209--01; LD20 |
15059-73400 |
US $1.67 |
||
|
15066
|
15066
1506621001 Gasket-Oil Pump To Cylinder Block8106--01 ~ 8209--01; LD20 |
1506621001 |
from US $0.19 |
||
|
15239
|
15239
15239-R5700 Gasket-Oil Filter To Cylinder Block8106--01 ~ 8209--01; LD20 |
15239-R5700 |
US $3.46 |
||
|
15255A
|
15255A
1527078500 Packing-Oil Filler Cap8106--01 ~ ; LD20 |
1527078500 |
US $4.85 |
||
|
16635
|
16635
16625-V0701 Gasket-Nozzle8106--01 ~ ; LD20 |
16625-V0701 |
US $3.31 |
||
|
16635
|
16635
16617-V0700 Gasket-Nozzle8106--01 ~ ; LD20# |
16617-V0700 |
US $3.31 |
||
|
16635
|
16635
16651-V0700 Gasket-Nozzle8106--01 ~ 8209--01; LD20 |
16651-V0700 |
US $2.74 |
||
|
16635
|
16635
16626-V0702 Gasket-Nozzle8106--01 ~ 8209--01; LD20 |
16626-V0702 |
from US $1.63 |
||
| replacement | |||||
|
16635
|
16635
16626-V0703 Gasket-Nozzle8106--01 ~ 8209--01; LD20 |
16626-V0703 |
from US $2.45 |
||
|
16635
|
16635
16625-V0701 Gasket-Nozzle8106--01 ~ ; LD20 |
16625-V0701 |
US $3.31 |
||
|
16635
|
16635
16617-V0700 Gasket-Nozzle8106--01 ~ ; LD20# |
16617-V0700 |
US $3.31 |
||
|
16635
|
16635
16651-V0700 Gasket-Nozzle8106--01 ~ 8209--01; LD20 |
16651-V0700 |
US $2.74 |
||
|
16635
|
16635
16626-V0702 Gasket-Nozzle8106--01 ~ 8209--01; LD20 |
16626-V0702 |
from US $1.63 |
||
| replacement | |||||
|
16635
|
16635
16626-V0703 Gasket-Nozzle8106--01 ~ 8209--01; LD20 |
16626-V0703 |
from US $2.45 |
||
|
21014
|
21014
21014-50L00 Gasket-Water Pump8503--01 ~ ; LD20+LD20T |
21014-50L00 |
US $2.45 |
||
|
21014
|
21014
21014-V0700
Gasket-Water Pump
8106--01 ~ 8209--01; LD20 |
21014-V0700 |
— | ||
|
21014
|
21014
21014-V0701
Gasket-Water Pump
8209--01 ~ 8504--01; LD20+LD20T |
21014-V0701 |
— | ||
