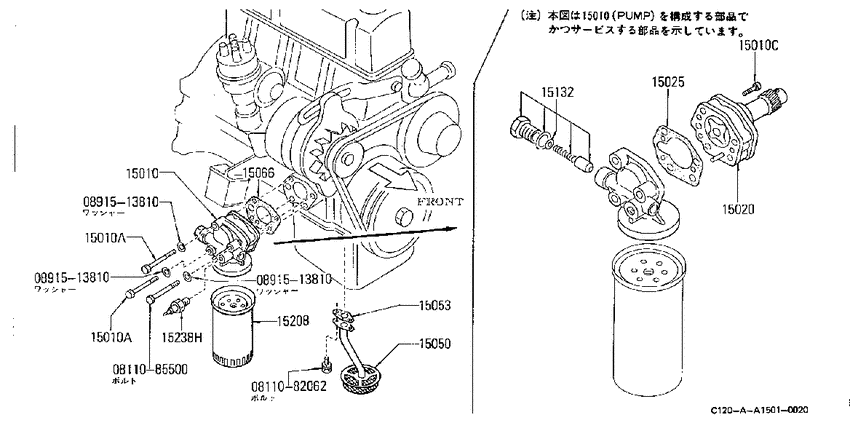

Lubricating system (1978-10-01 ~ 1981-05-01; A14.(V,T)) Diagram Nissan VANETTE
- Year
- 1979 - 1980
- Sales region
- Japan
- Engine
- A14S
- Number of doors
- 5
- grade
- DX
- body
- HV
- Roof
- STD
- body type
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811082062
|
0811082062
08110-82062
Bolt-hexagon
|
08110-82062 |
— | ||
| replacement | |||||
|
0811082062
|
0811082062
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
15010
|
15010
15010-H9700
Pump Assy-Oil
7810--01 ~ 8006--01; A12+A14 |
15010-H9700 |
— | ||
|
15010
|
15010
15010-H9701 Pump Assy-Oil8006--01 ~ 8106--01; A12+A14 |
15010-H9701 |
US $163.56 |
||
|
15010
|
15010
15036-18000 Bolt7810--01 ~ 8106--01; A14 |
15036-18000 |
US $2.45 |
||
|
15010
|
15010
01431-00131 BOLT-OIL PUMP7810--01 ~ 8106--01; A14 |
01431-00131 |
US $1.73 |
||
|
15010A
|
15010A
15036-18000 Bolt7810--01 ~ 8106--01; A14 |
15036-18000 |
US $2.45 |
||
|
15010A
|
15010A
15036-18000 Bolt7810--01 ~ 8106--01; A14 |
15036-18000 |
US $2.45 |
||
|
15010C
|
15010C
01431-00131 BOLT-OIL PUMP7810--01 ~ 8106--01; A14 |
01431-00131 |
US $1.73 |
||
|
15020
|
15020
15020-H9700 Shaft Assy-Oil Pump7810--01 ~ 8106--01; A14 |
15020-H9700 |
US $34.85 |
||
|
15025
|
15025
15025-18003 Gasket-Oil Pump7810--01 ~ 8106--01; A14 |
15025-18003 |
US $4.85 |
||
|
15050
|
15050
15050-H1000 Strainer Assy-Oil7810--01 ~ 8106--01; A12+A14 |
15050-H1000 |
US $20.74 |
||
|
15053
|
15053
15053-18000 Gasket-Oil Strainer7810--01 ~ 8106--01; A14 |
15053-18000 |
US $1.73 |
||
|
15066
|
15066
15066-H1000
Gasket-Oil Pump To Cylinder Block
7810--01 ~ 8106--01; A12+A14 |
15066-H1000 |
— | ||
| replacement | |||||
|
15066
|
15066
15066-H1001 Gasket-Oil Pump To Cylinder Block7810--01 ~ 8106--01; A12+A14 |
15066-H1001 |
US $4.30 |
||
|
15132
|
15132
15132-H1000 Valve Assy-Oil Regulator7810--01 ~ 8106--01; A14 |
15132-H1000 |
US $4.46 |
||
|
15208
|
15208
15208-H1010 Filter Assy-Oil7810--01 ~ 8106--01; A12+A14; [B517] |
15208-H1010 |
US $16.56 |
||
|
15238H
|
15238H
25240-89910
Switch Assy-Oil Pressure
7810--01 ~ 8106--01; A14 |
25240-89910 |
— | ||
| replacement | |||||
|
15238H
|
15238H
25240G150A SW OIL PRESSURE7810--01 ~ 8106--01; A14 |
25240G150A |
US $18.43 |
||
