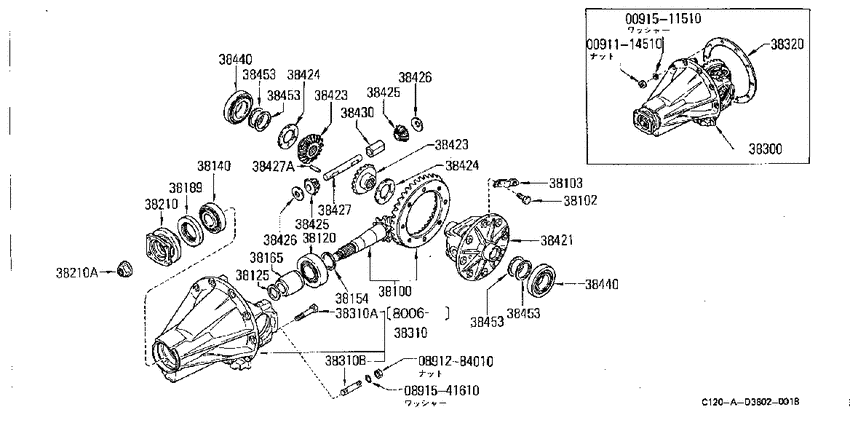

Rear final drive (1979-07-01 ~ 1981-05-01; V.A14 (HD#)(H190AL)) Diagram Nissan VANETTE
- Year
- 1979 - 1980
- Sales region
- Japan
- Engine
- A14S
- Number of doors
- 5
- grade
- DX
- body
- HV
- Roof
- STD
- body type
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0091114510
|
0091114510
00911-14510
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
00911-14510 |
— | ||
|
0091511510
|
0091511510
00915-11510
WASHER-LOCK
|
00915-11510 |
— | ||
|
0891284010
|
0891284010
0891284010
NUT
|
0891284010 |
— | ||
|
38100
|
38100
38100-B3100 Gear Set-Final Drive7810--01 ~ ; HD48; 39/8=4.875 |
38100-B3100 |
US $855.26 |
||
|
38102
|
38102
38102-P0100 Bolt-Drive Gear7810--01 ~ 8106--01; HD# |
38102-P0100 |
US $2.45 |
||
|
38103
|
38103
38103-T3000 Strap-Lock, Bolt7810--01 ~ 8106--01; HD# |
38103-T3000 |
US $2.45 |
||
|
38120
|
38120
38120-04100 Bearing-Drive Pinion, Rear7810--01 ~ ; HD# |
38120-04100 |
US $39.02 |
||
|
38125
|
38125
38125-P0102 Washer-Adjust, Drive Pinion Bearing7810--01 ~ 8106--01; HD# |
38125-P0102 |
US $5.55 |
||
|
38140
|
38140
38140-04100 Bearing-Drive Pinion, Front7810--01 ~ ; HD# |
38140-04100 |
US $31.82 |
||
|
38154
|
38154
38154-B3900 Washer-Adjust, Drive Pinion7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.37 |
38154-B3900 |
US $14.11 |
||
|
38154
|
38154
38154-B3901 Washer-Adjust, Drive Pinion7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.40 |
38154-B3901 |
US $14.11 |
||
|
38154
|
38154
38154-B3902 Washer-Adjust, Drive Pinion7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.43 |
38154-B3902 |
US $14.11 |
||
|
38154
|
38154
38154-B3903 Washer-Adjust, Drive Pinion7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.46 |
38154-B3903 |
US $14.11 |
||
|
38154
|
38154
38154-B3904 Washer-Adjust, Drive Pinion7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.49 |
38154-B3904 |
US $14.11 |
||
|
38154
|
38154
38154-B3905 Washer-Adjust, Drive Pinion7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.52 |
38154-B3905 |
US $14.11 |
||
|
38154
|
38154
38154-B3906 Washer-Adjust, Drive Pinion7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.55 |
38154-B3906 |
US $14.11 |
||
|
38154
|
38154
38154-B3907 Washer-Adjust, Drive Pinion7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.58 |
38154-B3907 |
US $13.82 |
||
|
38154
|
38154
38154-B3908 Washer-Adjust, Drive Pinion7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.61 |
38154-B3908 |
US $14.11 |
||
|
38154
|
38154
38154-B3909 Washer-Adjust, Drive Pinion7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.64 |
38154-B3909 |
US $14.11 |
||
|
38154
|
38154
38154-B3910 Washer-Adjust, Drive Pinion7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.67 |
38154-B3910 |
US $14.11 |
||
|
38154
|
38154
38154-B3911 Washer-Adjust, Drive Pinion7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.70 |
38154-B3911 |
US $14.11 |
||
|
38154
|
38154
38154-B3912
Washer-Adjust, Drive Pinion
7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.73 |
38154-B3912 |
— | ||
|
38154
|
38154
38154-B3913
Washer-Adjust, Drive Pinion
7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.76 |
38154-B3913 |
— | ||
|
38154
|
38154
38154-B3914 Washer-Adjust, Drive Pinion7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.79 |
38154-B3914 |
US $13.82 |
||
|
38154
|
38154
38154-B3915
Washer-Adjust, Drive Pinion
7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.82 |
38154-B3915 |
— | ||
|
38154
|
38154
38154-B3916 Washer-Adjust, Drive Pinion7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.85 |
38154-B3916 |
US $13.82 |
||
|
38154
|
38154
38154-B3917
Washer-Adjust, Drive Pinion
7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.88 |
38154-B3917 |
— | ||
|
38154
|
38154
38154-B3918
Washer-Adjust, Drive Pinion
7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.91 |
38154-B3918 |
— | ||
|
38154
|
38154
38154-B3919
Washer-Adjust, Drive Pinion
7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.94 |
38154-B3919 |
— | ||
|
38154
|
38154
38154-B3920 Washer-Adjust, Drive Pinion7810--01 ~ ; HD#; ｾﾝﾀｸ T=2.97 |
38154-B3920 |
US $14.11 |
||
|
38165
|
38165
38165-B3900 Spacer-Drive Pinion Bearing7810--01 ~ ; HD# |
38165-B3900 |
US $17.57 |
||
|
38189
|
38189
38189-A6100 Seal-Oil, Drive Pinion7810--01 ~ ; HC# HD# |
38189-A6100 |
US $8.21 |
||
|
38210
|
38210
38210-16503 Flange Assy-Companion7810--01 ~ ; HD# |
38210-16503 |
US $45.07 |
||
|
38210
|
38210
38216-U3000
Nut
7810--01 ~ 8106--01; HC#+HD# |
38216-U3000 |
— | ||
| replacement | |||||
|
38210
|
38210
38216-U301A Nut-Drive Pinion7810--01 ~ 8106--01; HC#+HD# |
38216-U301A |
from US $3.35 |
||
|
38210A
|
38210A
38216-U3000
Nut
7810--01 ~ 8106--01; HC#+HD# |
38216-U3000 |
— | ||
| replacement | |||||
|
38210A
|
38210A
38216-U301A Nut-Drive Pinion7810--01 ~ 8106--01; HC#+HD# |
38216-U301A |
from US $3.35 |
||
|
38300
|
38300
38300-G3100 Final Drive Assy-Rear7907--01 ~ 8006--01; *TL.A12 +TL.LB +TH.SB.A14 +V.SB.A14 +TLF.LB; 39/8=4.875 HD48 |
38300-G3100 |
US $2,058 |
||
|
38310
|
38310
38310-B3000 Carrier Compl-Gear7810--01 ~ ; HD# |
38310-B3000 |
US $429.05 |
||
|
38310
|
38310
38315-U1500 Bolt-Bearing Cap7810--01 ~ 8106--01; HC#+HD# |
38315-U1500 |
US $2.45 |
||
|
38310
|
38310
38315-B3000 Stud7810--01 ~ ; HD# |
38315-B3000 |
US $2.45 |
||
|
38310A
|
38310A
38315-U1500 Bolt-Bearing Cap7810--01 ~ 8106--01; HC#+HD# |
38315-U1500 |
US $2.45 |
||
|
38310B
|
38310B
38315-B3000 Stud7810--01 ~ ; HD# |
38315-B3000 |
US $2.45 |
||
|
38320
|
38320
38320-B3000 Gasket-Gear Carrier7810--01 ~ 8106--01; HD# |
38320-B3000 |
US $16.56 |
||
|
38421
|
38421
38421-P0100
Case-Differential
7810--01 ~ 7909--01; HD48+HD51 |
38421-P0100 |
— | ||
|
38421
|
38421
38421-V0100 Case-Differential8106--01 ~ 8512--01; ,HD48+HD51+HE37+HE38 HE41 |
38421-V0100 |
US $221.76 |
||
|
38423
|
38423
38423-14600 Gear-Side7810--01 ~ ; HD# |
38423-14600 |
US $46.94 |
||
|
38423
|
38423
38423-14600 Gear-Side7810--01 ~ ; HD# |
38423-14600 |
US $46.94 |
||
|
38424
|
38424
38424-E3000 Washer-Thrust, Side Gear7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.75-0.80 |
38424-E3000 |
US $4.03 |
||
|
38424
|
38424
38424-E3001 Washer-Thrust, Side Gear7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.80-0.85 |
38424-E3001 |
US $4.03 |
||
|
38424
|
38424
38424-E3002 Washer-Thrust, Side Gear7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.85-0.90 |
38424-E3002 |
US $4.03 |
||
|
38424
|
38424
38424-E3003 Washer-Thrust, Side Gear7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.90-0.95 |
38424-E3003 |
US $4.03 |
||
|
38424
|
38424
38424-E3000 Washer-Thrust, Side Gear7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.75-0.80 |
38424-E3000 |
US $4.03 |
||
|
38424
|
38424
38424-E3001 Washer-Thrust, Side Gear7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.80-0.85 |
38424-E3001 |
US $4.03 |
||
|
38424
|
38424
38424-E3002 Washer-Thrust, Side Gear7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.85-0.90 |
38424-E3002 |
US $4.03 |
||
|
38424
|
38424
38424-E3003 Washer-Thrust, Side Gear7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.90-0.95 |
38424-E3003 |
US $4.03 |
||
|
38425
|
38425
38425-71200 Pinion-Mate7810--01 ~ 8106--01; HD# |
38425-71200 |
US $33.98 |
||
|
38425
|
38425
38425-71200 Pinion-Mate7810--01 ~ 8106--01; HD# |
38425-71200 |
US $33.98 |
||
|
38426
|
38426
38426-32200 Washer-Thrust, Pinion Mate7810--01 ~ 8106--01; HD# |
38426-32200 |
US $3.46 |
||
|
38426
|
38426
38426-32200 Washer-Thrust, Pinion Mate7810--01 ~ 8106--01; HD# |
38426-32200 |
US $3.46 |
||
|
38427
|
38427
38427-25660 Shaft-Pinion Mate7810--01 ~ 8106--01; HD# |
38427-25660 |
US $10.22 |
||
|
38427
|
38427
38428-P0100 Pin-Lock, Pinion Shaft7810--01 ~ 8106--01; HD# |
38428-P0100 |
from US $0.86 |
||
|
38427A
|
38427A
38428-P0100 Pin-Lock, Pinion Shaft7810--01 ~ 8106--01; HD# |
38428-P0100 |
from US $0.86 |
||
|
38430
|
38430
38430-B3000 Block-Thrust7810--01 ~ 8006--01; HD# |
38430-B3000 |
US $18.29 |
||
|
38440
|
38440
4021085000 BEARING-INNER,REAR AXLE7810--01 ~ 8106--01; HD# |
4021085000 |
from US $28.55 |
||
|
38440
|
38440
4021085000 BEARING-INNER,REAR AXLE7810--01 ~ 8106--01; HD# |
4021085000 |
from US $28.55 |
||
|
38453
|
38453
38453-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.05 |
38453-61200 |
US $1.73 |
||
|
38453
|
38453
38454-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.07 |
38454-61200 |
US $5.04 |
||
|
38453
|
38453
38455-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.12 |
38455-61200 |
US $1.90 |
||
|
38453
|
38453
38456-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.25 |
38456-61200 |
US $5.04 |
||
|
38453
|
38453
38457-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.50 |
38457-61200 |
US $5.46 |
||
|
38453
|
38453
38453-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.05 |
38453-61200 |
US $1.73 |
||
|
38453
|
38453
38454-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.07 |
38454-61200 |
US $5.04 |
||
|
38453
|
38453
38455-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.12 |
38455-61200 |
US $1.90 |
||
|
38453
|
38453
38456-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.25 |
38456-61200 |
US $5.04 |
||
|
38453
|
38453
38457-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.50 |
38457-61200 |
US $5.46 |
||
|
38453
|
38453
38453-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.05 |
38453-61200 |
US $1.73 |
||
|
38453
|
38453
38454-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.07 |
38454-61200 |
US $5.04 |
||
|
38453
|
38453
38455-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.12 |
38455-61200 |
US $1.90 |
||
|
38453
|
38453
38456-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.25 |
38456-61200 |
US $5.04 |
||
|
38453
|
38453
38457-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.50 |
38457-61200 |
US $5.46 |
||
|
38453
|
38453
38453-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.05 |
38453-61200 |
US $1.73 |
||
|
38453
|
38453
38454-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.07 |
38454-61200 |
US $5.04 |
||
|
38453
|
38453
38455-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.12 |
38455-61200 |
US $1.90 |
||
|
38453
|
38453
38456-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.25 |
38456-61200 |
US $5.04 |
||
|
38453
|
38453
38457-61200 Shim-Adjust, Side Bearing7810--01 ~ 8106--01; HD#; ｾﾝﾀｸ T=0.50 |
38457-61200 |
US $5.46 |
||
