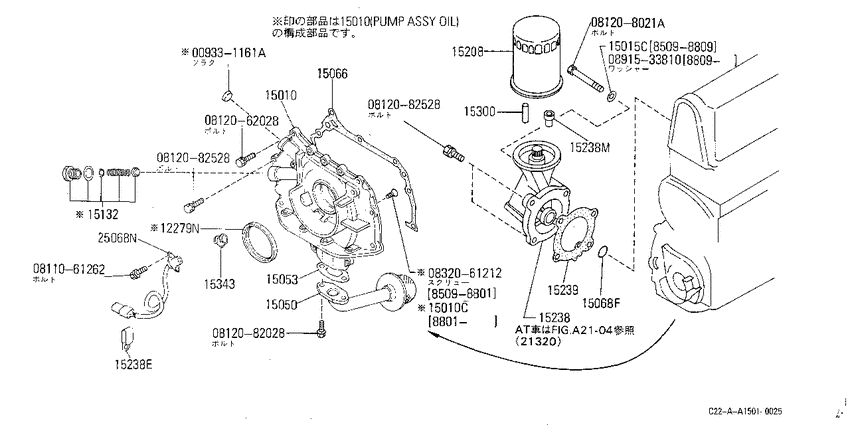

Lubricating system (1985-09-01 ~ ; LD20) Diagram Nissan VANETTE
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- LD20
- transmission
- MT
- grade
- VX
- body
- 4MV
- transmission/shift type
- F5
- floor
- LD
- capacity
- S2/5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331161A
|
009331161A
009331161A
Plug-Welch
|
009331161A |
— | ||
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0812062028
|
0812062028
08120-62028
Bolt-hexagon
|
08120-62028 |
— | ||
| replacement | |||||
|
0812062028
|
0812062028
081X0-62028 Bolt-hexagon |
081X0-62028 |
US $2.49 |
||
|
081208021A
|
081208021A
08120-8021A
Bolt-hexagon
|
08120-8021A |
— | ||
|
0812082028
|
0812082028
08120-82028
Bolt-hexagon
|
08120-82028 |
— | ||
| replacement | |||||
|
0812082028
|
0812082028
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0812082528
|
0812082528
08120-82528
Bolt-hexagon
|
08120-82528 |
— | ||
| replacement | |||||
|
0812082528
|
0812082528
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
0812082528
|
0812082528
08120-82528
Bolt-hexagon
|
08120-82528 |
— | ||
| replacement | |||||
|
0812082528
|
0812082528
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
0832061212
|
0832061212
08320-61212
ｽｸﾘﾕ-,ﾏｼﾝ
|
08320-61212 |
— | ||
|
0891533810
|
0891533810
08915-33810
WASHER-FINAL DRIVE
|
08915-33810 |
— | ||
| replacement | |||||
|
0891533810
|
0891533810
089153381A Washer |
089153381A |
from US $0.67 |
||
|
12279N
|
12279N
13510-05E00 SEAL-OIL,CRANKSHAFT FRONT8509--01 ~ 9106--01; LD20+LD20T |
13510-05E00 |
US $6.48 |
||
|
15010
|
15010
15010-13C00
Pump Assy-Oil
8809--01 ~ ; LD20.4WD; |
15010-13C00 |
— | ||
|
15010
|
15010
14071-05E00 BOLT8801--01 ~ 9106--01; LD20+LD20T; |
14071-05E00 |
US $1.73 |
||
|
15010
|
15010
15010-13C00
Pump Assy-Oil
8809--01 ~ ; LD20.4WD; |
15010-13C00 |
— | ||
|
15010
|
15010
14071-05E00 BOLT8801--01 ~ 9106--01; LD20+LD20T; |
14071-05E00 |
US $1.73 |
||
|
15010C
|
15010C
14071-05E00 BOLT8801--01 ~ 9106--01; LD20+LD20T; |
14071-05E00 |
US $1.73 |
||
|
15015C
|
15015C
01323-00021 WASHER-FINAL DRIVE8509--01 ~ 8809--01; LD20.MT |
01323-00021 |
US $1.73 |
||
|
15050
|
15050
15050-13C00 Strainer Assy-Oil8809--01 ~ 9106--01; LD20.4WD+LD20T.4WD |
15050-13C00 |
US $39.89 |
||
|
15050
|
15050
15050-G5500 Strainer Assy-Oil8509--01 ~ 8511--01; LD20 |
15050-G5500 |
US $28.37 |
||
|
15053
|
15053
15053-05E01 GASKET-OIL STRAINER9311--01 ~ ; LD20 |
15053-05E01 |
US $2.45 |
||
|
15053
|
15053
15059-05E00 GASKET-OIL STRAINER8509--01 ~ 9106--01; LD20+LD20T |
15059-05E00 |
US $2.45 |
||
|
15066
|
15066
15066-05E00 GASKET-OIL PUMP TO CYLINDER BLOCK8509--01 ~ 9106--01; LD20+LD20T |
15066-05E00 |
US $4.18 |
||
|
15066
|
15066
15066-05E01 GASKET-OIL PUMP TO CYLINDER BLOCK9111--01 ~ ; LD20 |
15066-05E01 |
US $4.18 |
||
|
15132
|
15132
15020-05E10 VALVE ASSY-OIL REGULATOR8509--01 ~ 9106--01; LD20.AT+LD20.4WD LD20T |
15020-05E10 |
US $8.78 |
||
|
15208
|
15208
AY100NS008
Filter Assy-Oil
8509--01 ~ 8611--01; LD20 |
AY100NS008 |
— | ||
| replacement | |||||
|
15208
|
15208
AY100NS00801 Filter Assy-Oil8509--01 ~ 8611--01; LD20 |
AY100NS00801 |
US $14.03 |
||
|
15208
|
15208
AY100NS011
Filter Assy-Oil
9311--01 ~ ; *LD20; ' NOX ｿｳﾘﾖｳ ｷｾｲ ﾀｲｵｳ |
AY100NS011 |
— | ||
| replacement | |||||
|
15208
|
15208
AY100NS012 Filter Assy-Oil9311--01 ~ ; *LD20; ' NOX ｿｳﾘﾖｳ ｷｾｲ ﾀｲｵｳ |
AY100NS012 |
US $32.38 |
||
|
15208
|
15208
15213-V0711 Stud-Oil Filter8509--01 ~ 9106--01; LD20+LD20T |
15213-V0711 |
from US $6.99 |
||
|
15238
|
15238
15238-G5500 Bracket-Oil Filter8509--01 ~ 8809--01; LD20.MT |
15238-G5500 |
US $165.60 |
||
|
15238
|
15238
24210-05E00 CLAMP8509--01 ~ 8809--01; LD20 |
24210-05E00 |
US $3.46 |
||
|
15238E
|
15238E
24210-05E00 CLAMP8509--01 ~ 8809--01; LD20 |
24210-05E00 |
US $3.46 |
||
|
15300
|
15300
15241-C6000 Valve Assy-Relief, Oil Cooler8509--01 ~ 8809--01; LD20.MT |
15241-C6000 |
US $12.62 |
||
|
15343
|
15343
15011-05E00 PLATE-REGULATOR8509--01 ~ 8809--01; LD20 |
15011-05E00 |
US $4.18 |
||
|
25068N
|
25068N
25068-05E05 SENSOR UNIT8509--01 ~ 8809--01; LD20 |
25068-05E05 |
US $96.05 |
||
