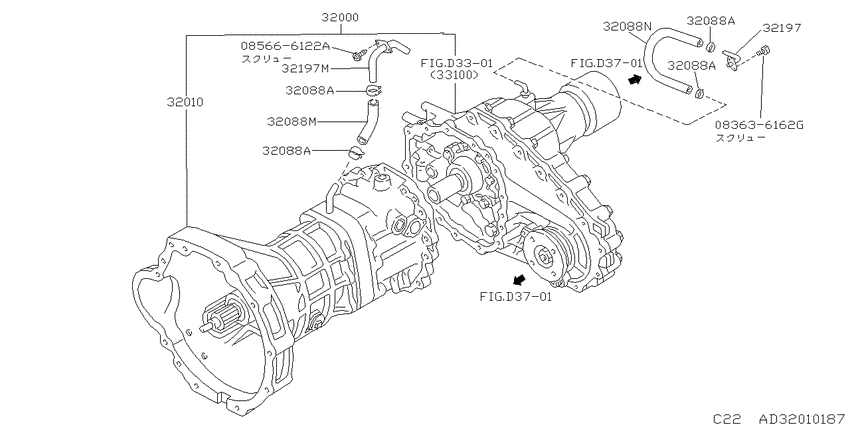

Transmission & transaxle assembly (1988-09-01 ~ ; アッセンブリー; RS5W71C+TX11A) Diagram Nissan VANETTE
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- LD20
- transmission
- MT
- grade
- VX
- body
- 4MV
- transmission/shift type
- F5
- floor
- LD
- capacity
- S2/5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
085666122A
|
085666122A
085666122A SCREWTAPPING |
085666122A |
US $0.50 |
||
|
32000
|
32000
32000-G8110 Transmission Assy, W/transfer8809--01 ~ 9106--01; (LD20+LD20T).MT.4WD; RS5W71C+TX11A |
32000-G8110 |
US $5,642 |
||
|
32010
|
32010
32010-14C02 Transmission Assy8611--01 ~ 8809--01; V.LD20.MT; RS5W71C ﾎｱﾝ ｷｼﾞﾕﾝ ﾀｲｵｳ |
32010-14C02 |
US $1,932 |
||
|
32010
|
32010
32010-G6160 Transmission Assy8509--01 ~ 8605--01; V.LD20.MT; RS5W71C |
32010-G6160 |
US $1,932 |
||
|
32010
|
32010
32010-G6161 Transmission Assy8605--01 ~ 8611--01; V.LD20.MT; RS5W71C |
32010-G6161 |
US $1,932 |
||
|
32010
|
32010
32010-G8110 Transmission Assy8809--01 ~ 9106--01; LD20.MT.4WD LD20T.MT.4WD; RS5W71C |
32010-G8110 |
US $1,932 |
||
|
32088A
|
32088A
16439-A0602 Clamp-Hose8509--01 ~ 8809--01; MT |
16439-A0602 |
US $2.45 |
||
|
32088A
|
32088A
16439-N2103 Clip9310--01 ~ ; LD20.4WD |
16439-N2103 |
US $2.45 |
||
|
32088A
|
32088A
16439-A0602 Clamp-Hose8509--01 ~ 8809--01; MT |
16439-A0602 |
US $2.45 |
||
|
32088A
|
32088A
16439-N2103 Clip9310--01 ~ ; LD20.4WD |
16439-N2103 |
US $2.45 |
||
|
32088A
|
32088A
16439-A0602 Clamp-Hose8509--01 ~ 8809--01; MT |
16439-A0602 |
US $2.45 |
||
|
32088A
|
32088A
16439-N2103 Clip9310--01 ~ ; LD20.4WD |
16439-N2103 |
US $2.45 |
||
|
32088A
|
32088A
16439-A0602 Clamp-Hose8509--01 ~ 8809--01; MT |
16439-A0602 |
US $2.45 |
||
|
32088A
|
32088A
16439-N2103 Clip9310--01 ~ ; LD20.4WD |
16439-N2103 |
US $2.45 |
||
|
32088M
|
32088M
31098-51N11 Hose-Breather9310--01 ~ ; LD20.4WD |
31098-51N11 |
US $5.76 |
||
|
32088M
|
32088M
31098-G5400 Hose-Breather8509--01 ~ 8809--01; (CA20+LD20).MT |
31098-G5400 |
US $4.03 |
||
|
32088M
|
32088M
34955-G8100 Hose-Breather8809--01 ~ 9106--01; 4WD |
34955-G8100 |
US $3.74 |
||
|
32088N
|
32088N
31098-51N11 Hose-Breather9310--01 ~ ; LD20.4WD |
31098-51N11 |
US $5.76 |
||
|
32088N
|
32088N
34955-G8100 Hose-Breather8809--01 ~ 9106--01; 4WD |
34955-G8100 |
US $3.74 |
||
|
32197
|
32197
34950-30C00 Tube-Breather8809--01 ~ 9106--01; 4WD |
34950-30C00 |
US $11.09 |
||
|
32197
|
32197
31098-G5101 Hose-Breather8809--01 ~ 9106--01; 4WD |
31098-G5101 |
US $5.90 |
||
|
32197M
|
32197M
31098-G5101 Hose-Breather8809--01 ~ 9106--01; 4WD |
31098-G5101 |
US $5.90 |
