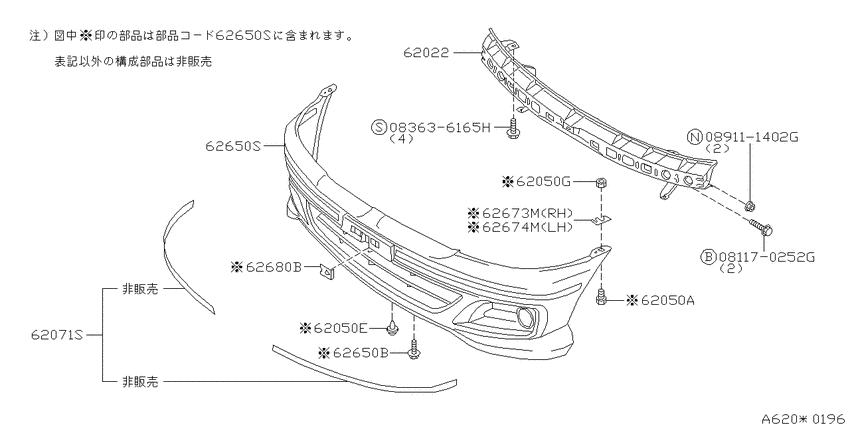

Front bumper (1998-01-01 ~ ; ハイウエイスター仕様; *W.FX2) Diagram Nissan VANETTE
- Year
- 1991 - 1998
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- FX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081170252G
|
081170252G
08117-0252G
Bolt-hexagon
|
08117-0252G |
— | ||
|
083636165H
|
083636165H
083636165H SCREWMACHINE |
083636165H |
from US $0.48 |
||
|
089111402G
|
089111402G
089111402G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111402G |
— | ||
|
62022
|
62022
620303C000 Reinforce-Front Bumper Center, Inner9405--01 ~ 9508--01; W.GA16DE +W.(FX+FX/R+SX+PX) |
620303C000 |
US $358.25 |
||
|
62022
|
62022
62056-0C000 Reinforce-Front Bumper Center, Inner9106--01 ~ 9308--01; W +4DV +5DV |
62056-0C000 |
US $358.25 |
||
|
62050A
|
62050A
01466-00015 SCREW9107--01 ~ 9308--01; W +4DV +5DV |
01466-00015 |
US $2.45 |
||
|
62050E
|
62050E
0155302741 CLIP9502--01 ~ 9508--01; W |
0155302741 |
from US $0.61 |
||
|
62050E
|
62050E
0155303201 CLIP9106--01 ~ 9308--01; W +4DV +5DV |
0155303201 |
US $1.87 |
||
|
62050G
|
62050G
0128100111 GROMMET-SCREW9106--01 ~ 9308--01; W +4DV +5DV |
0128100111 |
from US $0.85 |
||
|
62071S
|
62071S
99031-0A304 Stripe Set-Accent, Front Bumper9405--01 ~ 9508--01; *W.FX; ｷﾀｷﾂﾈ[K504] |
99031-0A304 |
US $98.52 |
||
|
62071S
|
62071S
99031-0C700 Stripe Set-Accent, Front Bumper9106--01 ~ 9301--01; :W.2WD.CD20T +W.4WD.CD20T.(FX+SX+PX) +W.SR20DE +W.CD20T.RVS; [K504] |
99031-0C700 |
US $143.32 |
||
|
62071S
|
62071S
99031-0C701 Stripe Set-Accent, Front Bumper9106--01 ~ 9301--01; :W.2WD.CD20T +W.4WD.CD20T.(FX+SX+PX) +W.SR20DE +W.CD20T.RVS; [K504] |
99031-0C701 |
US $143.32 |
||
|
62071S
|
62071S
99031-0C702 Stripe Set-Accent, Front Bumper9106--01 ~ 9301--01; :W.2WD.CD20T +W.4WD.CD20T.(FX+SX+PX) +W.SR20DE +W.CD20T.RVS; [K504] |
99031-0C702 |
US $143.32 |
||
|
62071S
|
62071S
99031-0C703 Stripe Set-Accent, Front Bumper9106--01 ~ 9301--01; :W.2WD.CD20T +W.4WD.CD20T.(FX+SX+PX) +W.SR20DE +W.CD20T.RVS; [K504] |
99031-0C703 |
US $143.32 |
||
|
62071S
|
62071S
99031-0C704 Stripe Set-Accent, Front Bumper9106--01 ~ 9211--01; W.(FX+SX+PX+RVS); [K504] |
99031-0C704 |
US $143.32 |
||
|
62071S
|
62071S
99031-0C705 Stripe Set-Accent, Front Bumper9106--01 ~ 9301--01; W.SR20DE; [K504] |
99031-0C705 |
US $143.32 |
||
|
62071S
|
62071S
99031-0C800 Stripe Set-Accent, Front Bumper9301--01 ~ 9308--01; :W.2WD.CD20T +W.4WD.CD20T.(FX+SX+PX) +W.SR20DE +W.CD20T.RVS; [K504] |
99031-0C800 |
US $158.26 |
||
|
62071S
|
62071S
99031-0C801 Stripe Set-Accent, Front Bumper9301--01 ~ 9308--01; :W.2WD.CD20T +W.4WD.CD20T.(FX+SX+PX) +W.SR20DE +W.CD20T.RVS; [K504] |
99031-0C801 |
US $158.26 |
||
|
62071S
|
62071S
990310C802 Stripe Set-Accent, Front Bumper9301--01 ~ 9308--01; :W.2WD.CD20T +W.4WD.CD20T.(FX+SX+PX) +W.SR20DE +W.CD20T.RVS; [K504] |
990310C802 |
US $158.26 |
||
|
62071S
|
62071S
99031-0C803 Stripe Set-Accent, Front Bumper9301--01 ~ 9308--01; :W.2WD.CD20T +W.4WD.CD20T.(FX+SX+PX) +W.SR20DE +W.CD20T.RVS; [K504] |
99031-0C803 |
US $158.26 |
||
|
62071S
|
62071S
990310C804 Stripe Set-Accent, Front Bumper9301--01 ~ 9308--01; :W.2WD.CD20T +W.4WD.CD20T.(FX+SX+PX) +W.SR20DE +W.CD20T.RVS; [K504] |
990310C804 |
US $158.26 |
||
|
62071S
|
62071S
99031-0C805 Stripe Set-Accent, Front Bumper9301--01 ~ 9308--01; :W.2WD.CD20T +W.4WD.CD20T.(FX+SX+PX) +W.SR20DE +W.CD20T.RVS; [K504] |
99031-0C805 |
US $158.26 |
||
|
62071S
|
62071S
990310C806 Stripe Set-Accent, Front Bumper9308--01 ~ 9311--01; *W.FX; <60TH ｱﾆﾊﾞ-ｻﾘ- 2>[K504] |
990310C806 |
US $158.26 |
||
|
62071S
|
62071S
99031-3C000 Stripe Set-Accent, Front Bumper9405--01 ~ 9508--01; W.(FX+FX/R+SX+PX); [K504] |
99031-3C000 |
US $158.26 |
||
|
62071S
|
62071S
990313C001 Stripe Set-Accent, Front Bumper9405--01 ~ 9508--01; W.(FX+FX/R+SX+PX); [K504] |
990313C001 |
US $158.26 |
||
|
62071S
|
62071S
99031-3C002 Stripe Set-Accent, Front Bumper9405--01 ~ 9508--01; *W.FX; ｷﾀｷﾂﾈ[K504] |
99031-3C002 |
US $158.26 |
||
|
62071S
|
62071S
99031-3C003 Stripe Set-Accent, Front Bumper9405--01 ~ 9508--01; *W.FX; ｷﾀｷﾂﾈ[K504] |
99031-3C003 |
US $158.26 |
||
|
62071S
|
62071S
99031-3C005 Stripe Set-Accent, Front Bumper9405--01 ~ 9508--01; W.(FX+FX/R+SX+PX); [K504] |
99031-3C005 |
US $158.26 |
||
|
62071S
|
62071S
99031-3C400 Stripe Set-Accent, Front Bumper9508--01 ~ 9701--01; W.(SR20DE+CD20T); [K504] |
99031-3C400 |
US $131.88 |
||
|
62071S
|
62071S
99031-3C401 Stripe Set-Accent, Front Bumper9508--01 ~ 9701--01; *W.FX; ｷﾀｷﾂﾈ[K504] |
99031-3C401 |
US $158.26 |
||
|
62071S
|
62071S
99031-3C402 Stripe Set-Accent, Front Bumper9508--01 ~ 9701--01; *W.FX; ｷﾀｷﾂﾈ[K504] |
99031-3C402 |
US $158.26 |
||
|
62071S
|
62071S
99031-3C403 Stripe Set-Accent, Front Bumper9508--01 ~ 9701--01; *W.FX; FX LIMITED ｼﾖｳ[K504] |
99031-3C403 |
US $131.88 |
||
|
62071S
|
62071S
99031-3C404 Stripe Set-Accent, Front Bumper9604--01 ~ 9801--01; *W.FX; ﾊｲｳｴｲｽﾀ- ｼﾖｳ[K504] |
99031-3C404 |
US $131.88 |
||
|
62071S
|
62071S
99031-4C000 Stripe Set-Accent, Front Bumper9701--01 ~ 9801--01; W; [K504] |
99031-4C000 |
US $131.88 |
||
|
62071S
|
62071S
99031-4C001 Stripe Set-Accent, Front Bumper9701--01 ~ 9801--01; W; [K504] |
99031-4C001 |
US $131.88 |
||
|
62071S
|
62071S
99031-4C002 Stripe Set-Accent, Front Bumper9801--01 ~ ; W; [K504] |
99031-4C002 |
US $131.88 |
||
|
62071S
|
62071S
99031-4C700 Stripe Set-Accent, Front Bumper9801--01 ~ ; W; [K504] |
99031-4C700 |
US $131.88 |
||
|
62071S
|
62071S
99031-7C500 Stripe Set-Accent, Front Bumper9801--01 ~ ; *W.FX2; ﾊｲｳｴｲｽﾀ- +ｽﾄﾗ ｲﾌﾟﾚｽ ｼﾖｳ[K504] |
99031-7C500 |
US $131.88 |
||
|
62071S
|
62071S
99031-7C501 Stripe Set-Accent, Front Bumper9801--01 ~ ; *W.FX2; ﾊｲｳｴｲｽﾀ- +ｽﾄﾗ ｲﾌﾟﾚｽ ｼﾖｳ[K504] |
99031-7C501 |
US $131.88 |
||
|
62650B
|
62650B
01111-00015 BOLT9106--01 ~ 9308--01; W +4DV +5DV |
01111-00015 |
US $3.46 |
||
|
62650S
|
62650S
62022-0C228 Fascia Kit-Front Bumper9305--01 ~ 9308--01; ,W.(FG+FX+SX+PX+PXT+RVS) +4DV.(LX+VX) +5DV.LX |
62022-0C228 |
US $921.82 |
||
|
62650S
|
62650S
62022-0C286 Fascia Kit-Front Bumper9305--01 ~ 9308--01; ,W.(FG+FX+SX+PX+PXT+RVS) +4DV.(LX+VX) +5DV.LX |
62022-0C286 |
US $921.82 |
||
|
62650S
|
62650S
62022-0C728 Fascia Kit-Front Bumper9106--01 ~ 9305--01; W.(FG+FX+SX+PX+PXT); (#LK5 #6K7) |
62022-0C728 |
US $921.82 |
||
|
62650S
|
62650S
62022-0C786 Fascia Kit-Front Bumper9106--01 ~ 9305--01; W.(FG+FX+SX+PX+PXT) |
62022-0C786 |
US $921.82 |
||
|
62650S
|
62650S
62022-0C787 Fascia Kit-Front Bumper9106--01 ~ 9305--01; W.(FG+FX+PX+PXT)+4DV.VX |
62022-0C787 |
US $921.82 |
||
|
62650S
|
62650S
F2022-3C0MA Fascia Kit-Front Bumper9405--01 ~ 9508--01; W.GA16DE +W.(FX+FX/R+SX) |
F2022-3C0MA |
US $921.82 |
||
|
62650S
|
62650S
F2022-3C0MB Fascia Kit-Front Bumper9405--01 ~ 9508--01; W.GA16DE +W.(FX+FX/R+SX) |
F2022-3C0MB |
US $921.82 |
||
|
62650S
|
62650S
F2022-3C0ME Fascia Kit-Front Bumper9410--01 ~ 9508--01; W.GA16DE +W.(FX+FX/R+SX) |
F2022-3C0ME |
US $921.82 |
||
|
62650S
|
62650S
F2022-3C4MA Fascia Kit-Front Bumper9508--01 ~ 9701--01; W.GA16DE +W.(FX+FX/R+SX+PX) |
F2022-3C4MA |
US $921.82 |
||
|
62650S
|
62650S
F2022-4C7MM Fascia Kit-Front Bumper9801--01 ~ ; W |
F2022-4C7MM |
US $921.82 |
||
|
62650S
|
62650S
F2022-7C5MA Fascia Kit-Front Bumper9801--01 ~ ; *W.FX2; ﾊｲｳｴｲｽﾀ- ｼﾖｳ |
F2022-7C5MA |
US $921.82 |
||
|
62650S
|
62650S
62022-0C025 Fascia Kit-Front Bumper9106--01 ~ 9305--01; ,W.(FG+FX+SX+PX+PXT+RVS) +4DV.(LX+VX) +5DV.LX; PP.ｼﾞﾕｼ ｼﾖｸ ﾄｿｳﾖｳ |
62022-0C025 |
US $560.74 |
||
|
62650S
|
62650S
62022-0C125 Fascia Kit-Front Bumper9305--01 ~ 9308--01; W +4DV +5DV; PP.ｼﾞﾕｼ ｼﾖｸ |
62022-0C125 |
US $560.74 |
||
|
62650S
|
62650S
62022-3C025 Fascia Kit-Front Bumper9405--01 ~ 9508--01; *W.FX; ﾄｿｳﾖｳ ｷﾀｷﾂﾈ+ｸﾞﾘﾙｶﾞ-ﾄﾞ ﾂｷ |
62022-3C025 |
US $560.74 |
||
|
62650S
|
62650S
62022-3C026 Fascia Kit-Front Bumper9405--01 ~ 9508--01; *W.FX; )ﾄｿｳﾖｳ ｷﾀｷﾂﾈ+ｸﾞﾘﾙｶﾞ-ﾄ ﾞﾅｼ+ｺ-ﾅ-&ﾊﾞﾂｸｿﾅ- ｼﾖｳ |
62022-3C026 |
US $560.74 |
||
|
62650S
|
62650S
62022-7C525 Fascia Kit-Front Bumper9801--01 ~ ; *W.FX2; ﾄｿｳﾖｳ ﾊｲｳｴｲｽﾀ- ｼﾖｳ |
62022-7C525 |
US $560.74 |
||
|
62673M
|
62673M
62094-0C000 Spacer-Bumper Side, Rh9405--01 ~ 9508--01; W |
62094-0C000 |
US $7.06 |
||
|
62674M
|
62674M
62095-0C000 Spacer-Bumper Side, Lh9405--01 ~ 9508--01; W |
62095-0C000 |
US $7.06 |
||
|
62680B
|
62680B
01241-00431
NUT
9106--01 ~ 9308--01; W +4DV +5DV |
01241-00431 |
— | ||
| replacement | |||||
|
62680B
|
62680B
0124100113 NUT-J9106--01 ~ 9308--01; W +4DV +5DV |
0124100113 |
from US $2.29 |
||
|
62680B
|
62680B
0124101051 NUT-SPRING9801--01 ~ ; *W.FX2; ﾊｲｳｴｲｽﾀ- ｼﾖｳ |
0124101051 |
from US $0.98 |
||
